6 - 11
CHAS
REAR WHEEL AND BRAKE

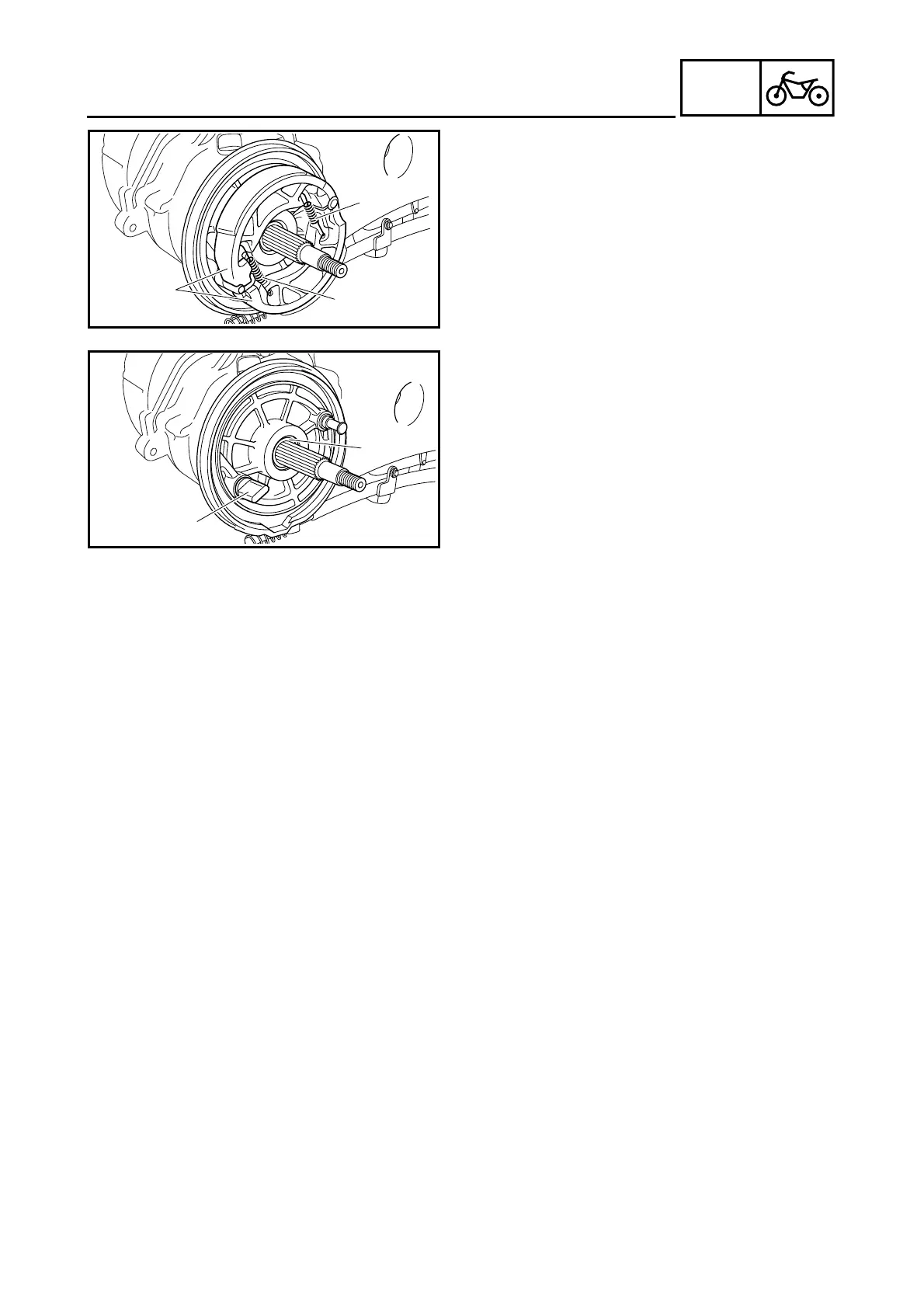

6. Remove:
• brake shoes 1
• brake shoe spring (brake camshaft side) 2
• brake shoe spring (pivot side) 3
3
2
1
7. Remove:
• brake camshaft 1
• washer 2
1
2
EAS00566
CHECKING THE REAR WHEEL
1. Check:
• tire
• rear wheel
Damage/wear → Replace.
Refer to “CHECKING THE TIRES” and
“CHECKING THE WHEELS” in chapter 3.
2. Check:
• spokes
Bends/damage → Replace.
Loose → Tighten.
Tap the spokes with a screwdriver.
Refer to “CHECKING AND TIGHTENING
THE SPOKES” in chapter 3.
3. Measure:
• radial wheel runout
• lateral wheel runout
Refer to “CHECKING THE FRONT
WHEEL”.
