CABLE ROUTING

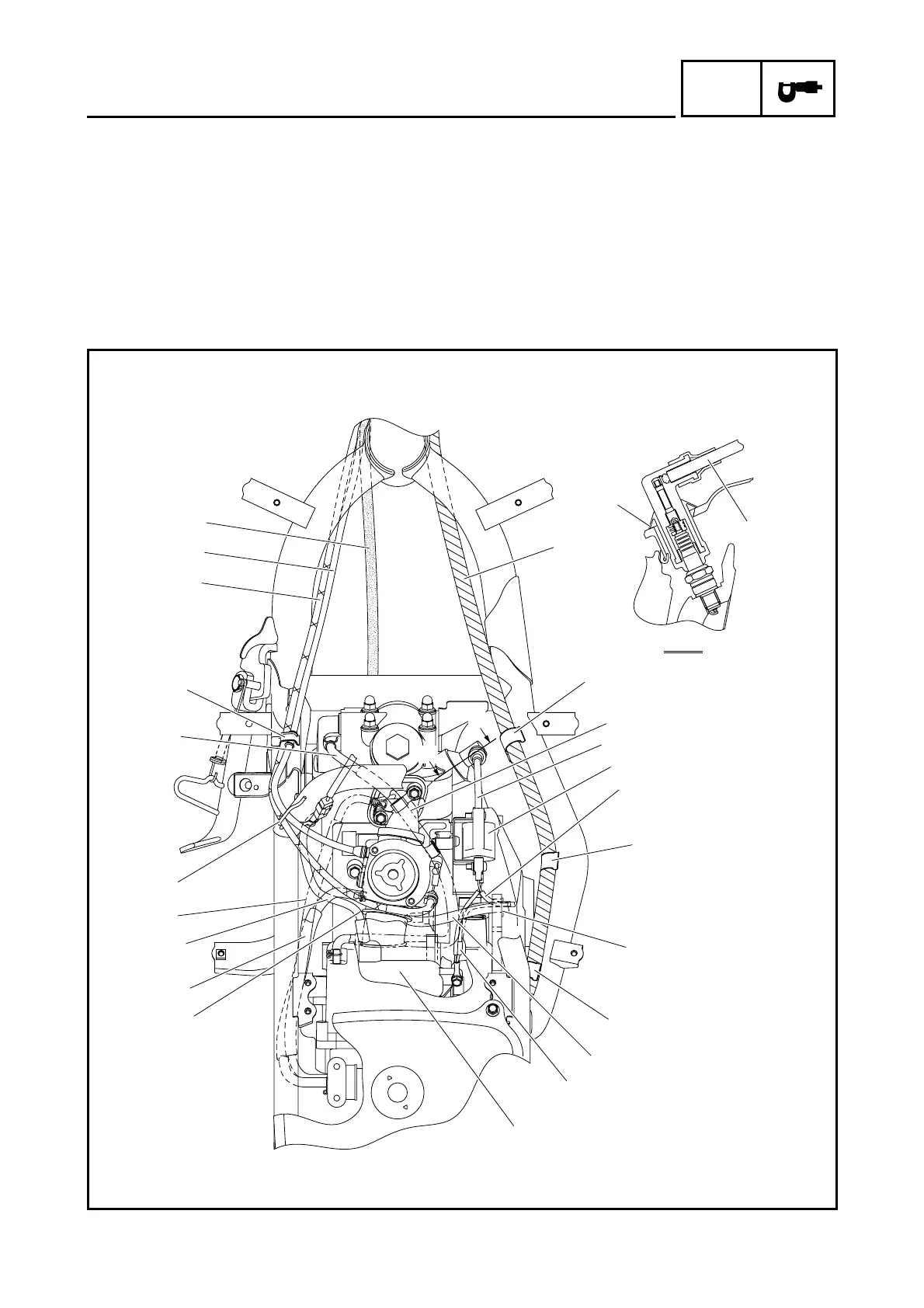

È Fasten the wire harness with the holders.

É Route the cylinder head breather hose as

shown.

Ê Pass the A.C. magneto lead, ignition coil lead,

and negative battery lead through the guide on

the air filter case.

Ë Route the fuel hose between the vacuum hose

and both the starter cable and throttle cable as

shown.

Ì Pass the starter cable and throttle cable through

the cable guide.

Í Fasten the throttle cable at the white mark and

the starter cable grommet with the holder.

Î Install the spark plug cap securely so that there

is no space between the rubber seal on the

spark plug cap and the air shroud.
