THE CONTROLS OF THE MU80
3

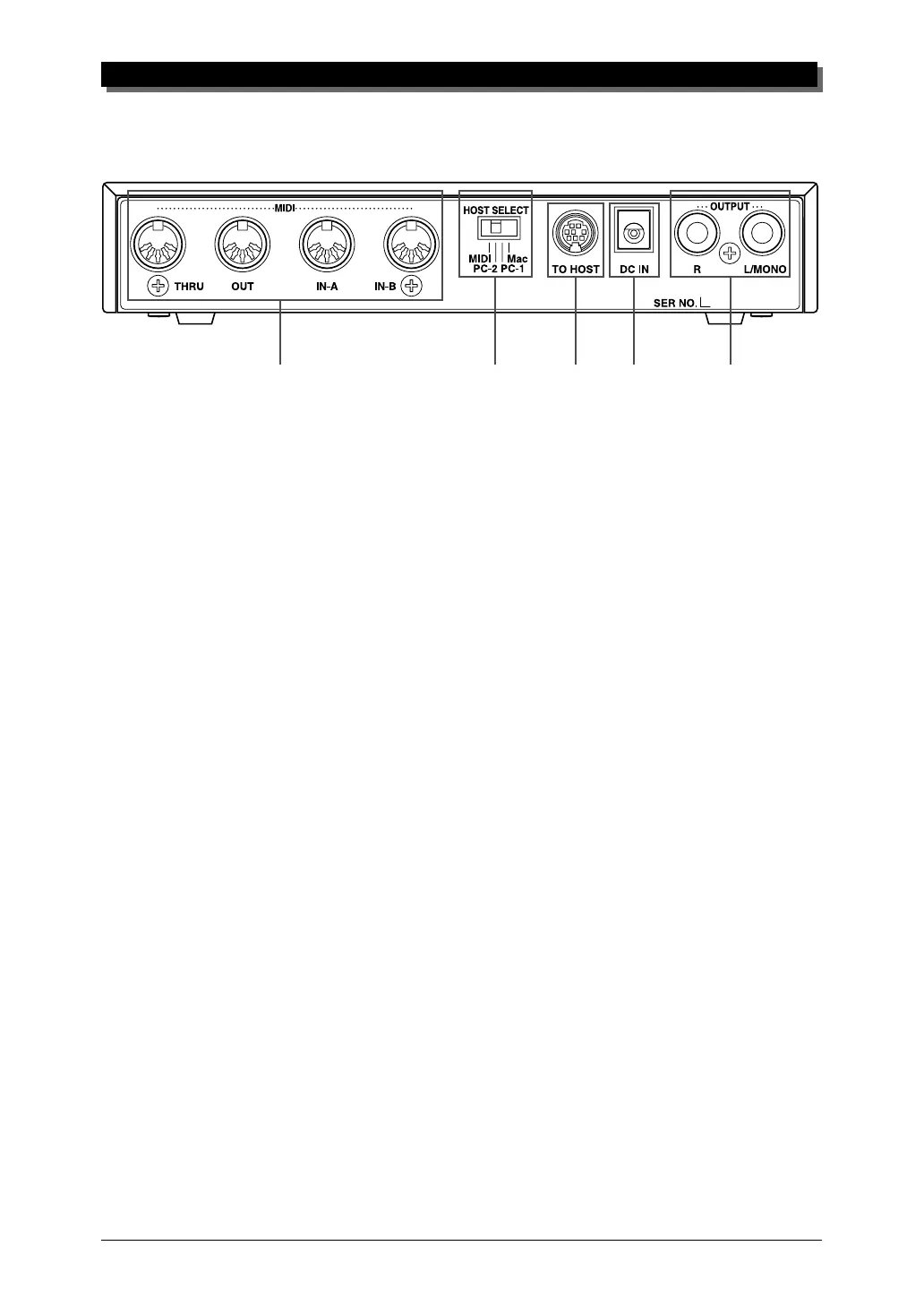

Rear Panel
1
MIDI THRU, MIDI OUT and MIDI IN A/B terminals
For connection to other MIDI devices, such as a MIDI keyboard, tone genera-
tor, sequencer, or to a computer that has a MIDI interface. MIDI IN A and B
are independent MIDI ports, allowing full 32-channel MIDI input. MIDI OUT
is for data dumps to another MIDI device, while MIDI THRU is for “daisy-
chain” connection of additional MU80s or other MIDI instruments. (See page
12 for more information on MIDI connections.)
2
HOST SELECT switch
For electing the type of host computer. (See page 12.)
3
TO HOST terminal
For connection to a host computer that does not have a MIDI interface. (See
page 26.)
4
DC IN jack
For connection to the PA-1207 AC power adaptor.
5
OUTPUT R, L/MONO jacks (Right, Left/Mono)
For connection to a stereo amplifier/speaker system. When using a mono sys-
tem, connect it to the L/MONO jack.
1
2
34 5
