12

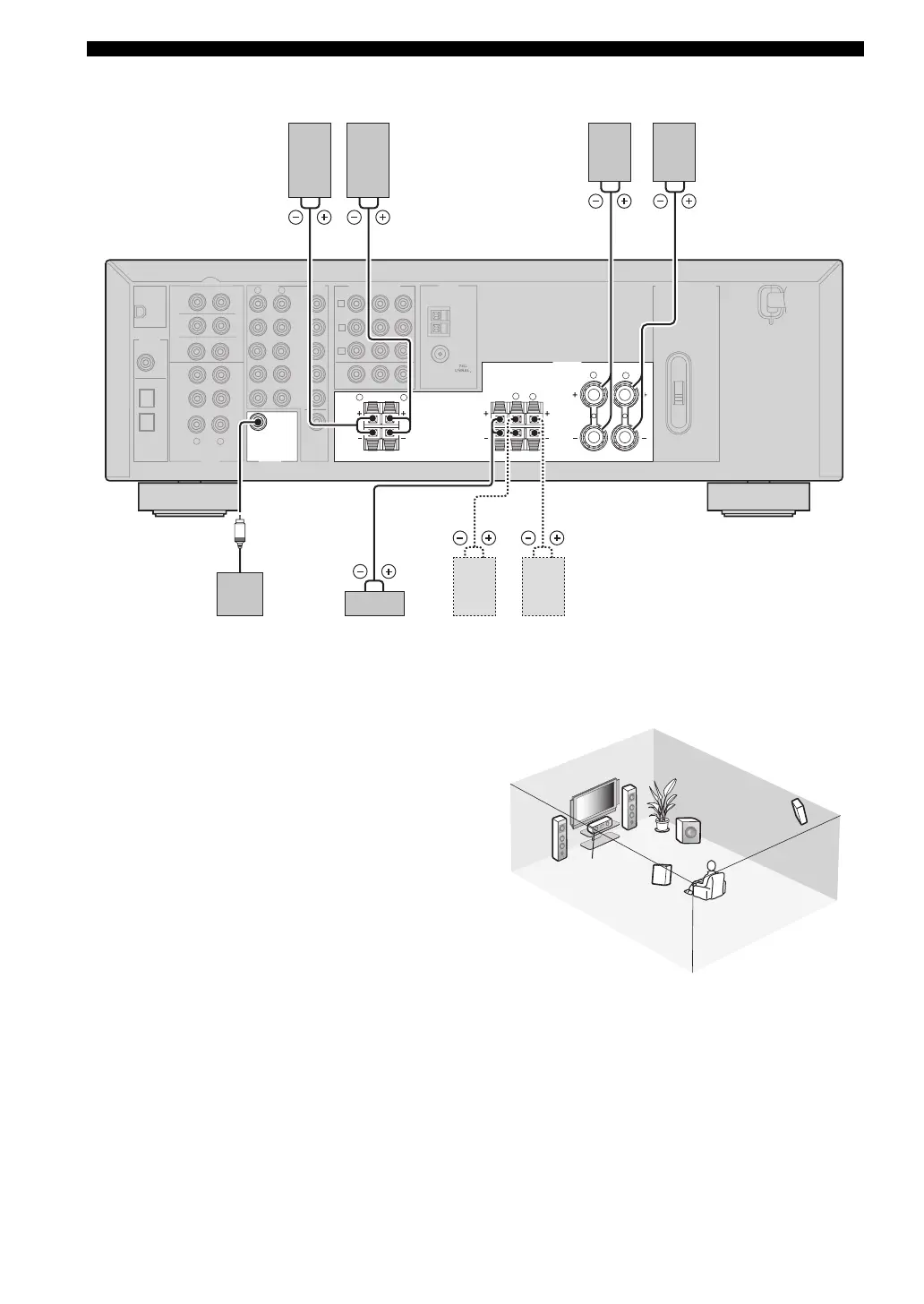

CONNECTIONS
■ FRONT terminals
Connect one or two speaker systems (1, 2) to these
terminals. If you use only one front speaker system,
connect it to the FRONT A terminals.
■ CENTER terminals
Connect a center speaker (3) to these terminals.
■ SURROUND terminals
Connect surround speakers (4, 5) to these terminals.
■ SUBWOOFER OUTPUT jack
Connect a subwoofer with built-in amplifier (6) (such as
the YAMAHA Active Servo Processing Subwoofer
System) to this jack.
MULTI CH INPUT
FRONT
CENTER
SUB
WOOFER
SURROUND
CD
MD/
CD-R
(PLAY)
(REC)
IN
OUT
L
R
DIGITAL
INPUT
DVD
COAXIA
L
3
DTV-CBL
OPTICAL
DVD
AUDIO
AUDIO
L
R
DVD
DTV/
CBL
IN
OUT
VCR
VCR
V-AUX
VIDEO
OUTPUT
SUB
WOOFER
MONITOR
OUT
DTV/
CBL
DV
D
A
B
C
COMPONENT VIDEO
PBYPR
MONITOR OUT
SURROUND
L
R
AM
ANT
GND
FM
ANT
TUNER
2
1
SPEAKERS
CLASS 2 WIRING
L
R
B
A
FRONT
CENTER
FRON
T
L
R
IMPEDANCE SELECTOR
XM
5
31 2
2
4
1
6
Subwoofer Center
speaker
Front speakers (A)
LeftRight
Surround speakers
Front speakers (B)
LeftRight
LeftRight
(U.S.A. model)
6
1
2
5
4
3
Speaker layout
