Yamaha YZ250F(E) User Manual

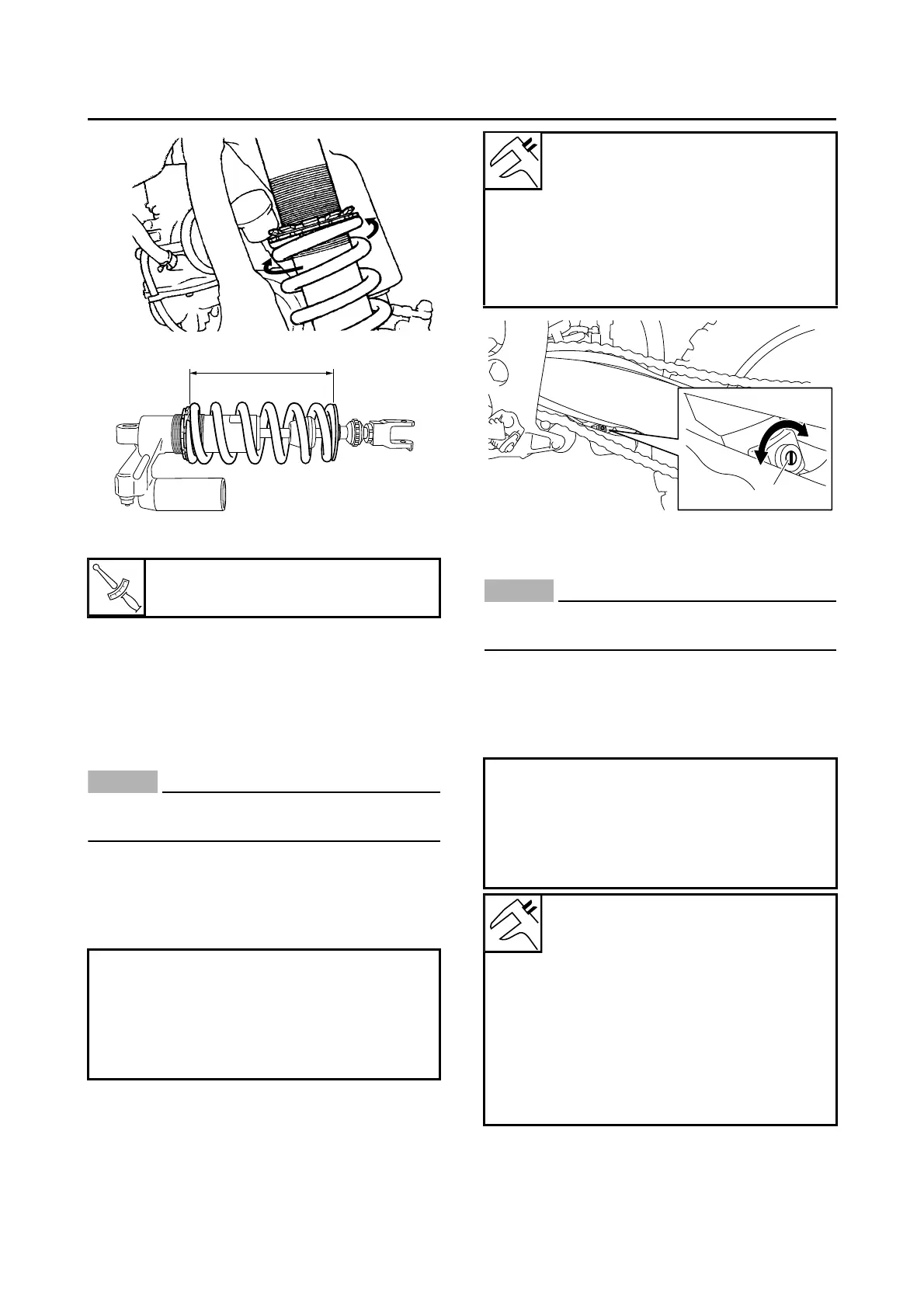

CHASSIS
3-31
e. Tighten the locknut.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
3. Install:
• Rear frame
Refer to “REAR SHOCK ABSORBER AS-
SEMBLY” on page 4-53.
Rebound damping force
ECA13590
NOTICE
Do not turn the adjuster forcibly beyond its
adjusting range.
1. Adjust:
• Rebound damping force
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjuster “1” in the direction of “a” or
“b” to make an adjustment.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
High compression damping
ECA13590
NOTICE
Do not turn the adjuster forcibly beyond its
adjusting range.
1. Adjust:
• High compression damping
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjuster “1” in the direction of “a” or
“b” to make an adjustment.
Locknut
30 Nm (3.0 m·kgf, 22 ft·lbf)
Direction “a”
Rebound damping force is increased
(suspension is harder).
Direction “b”
Rebound damping force is decreased
(suspension is softer).
c
b
d
T
R
.
.
Rebound damping force
Maximum
Turn it in finger-tight.
STD
Turn it out by 14 clicks.*
Minimum
Turn it out by 30 clicks.*
* With the adjuster fully turned
Direction “a”
High compression damping force is in-
creased (suspension is harder).
Direction “b”
High compression damping force is de-
creased (suspension is softer).
High compression damping
Maximum
Turn it in finger-tight.
STD
Turn it out by 1 1/3 turns.*
(USA)(CAN)
Turn it out by 1 1/8 turns.*
(EUR)(JPN)(AUS)(NZL)(ZAF)
Minimum
Turn it out by two turns.*
* With the adjuster fully turned
a
b
1
