Yamaha YZ250F(E) User Manual

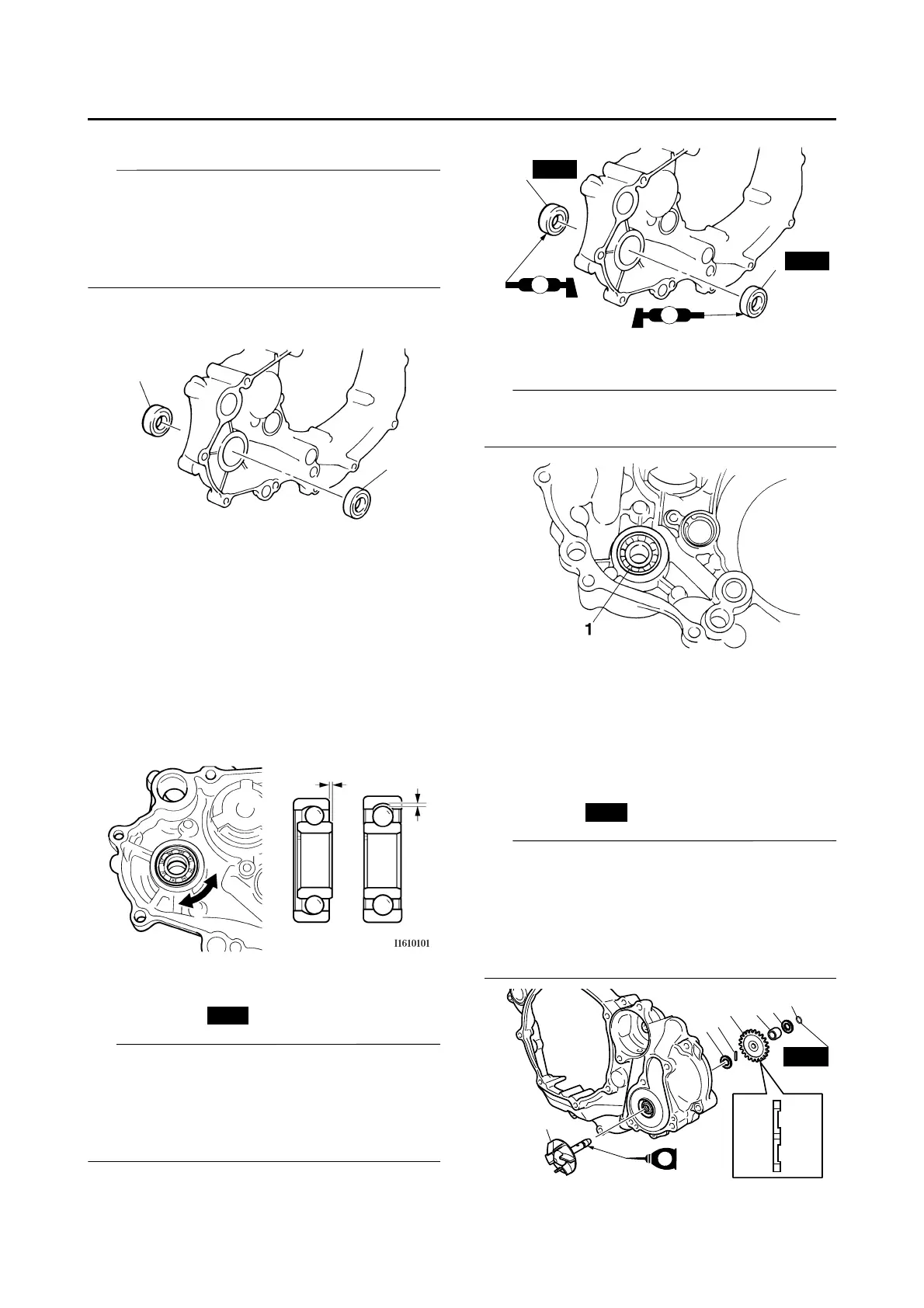

WATER PUMP
6-6
EAS1SM1300
REMOVING THE OIL SEAL
TIP
• Remove the oil seal when the coolant level
changes frequently more than usual, coolant
has discolored, or engine oil has become
milky.
• Do not use the removed oil seal.
1. Remove:
• Oil seals “1”
EAS1SM1301
CHECKING THE WATER PUMP
1. Check:
• Water pump housing cover
• Impeller shaft
Cracks/damage/wear  Replace.
EAS1SM1302
CHECKING THE BEARING
1. Check:
• Bearing
Rotate the inner race with your finger.
Rough spot/seizure  Replace.
EAS1SM1303
INSTALLING THE OIL SEAL
1. Install:
• Oil seals “1”
TIP
• Apply the lithium soap base grease on the oil
seal lip.
• Install the oil seal with its manufacture’s
marks or numbers facing the right crankcase
cover “2”.
2. Install:
• Bearing “1”
TIP
Install the bearing by pressing its outer race
parallel.
EAS1SM1304
ASSEMBLING THE WATER PUMP
1. Install:
• Impeller shaft assembly “1”
• Washer “2”
•Pin “3”
• Gear “4”
• Collar “5”
• Circlip “6”
TIP
• Take care so that the oil seal lip is not dam-
aged or the spring does not slip off its posi-
tion.
• When installing the impeller shaft, apply the
engine oil to the oil seal lip, the bearing, and
the impeller shaft.
1
1
New
1
1
New
New
LS
LS
New
1
2
5
2
3
4
6
New
E
