STEERING HEAD
4-49
EAS1SM1171

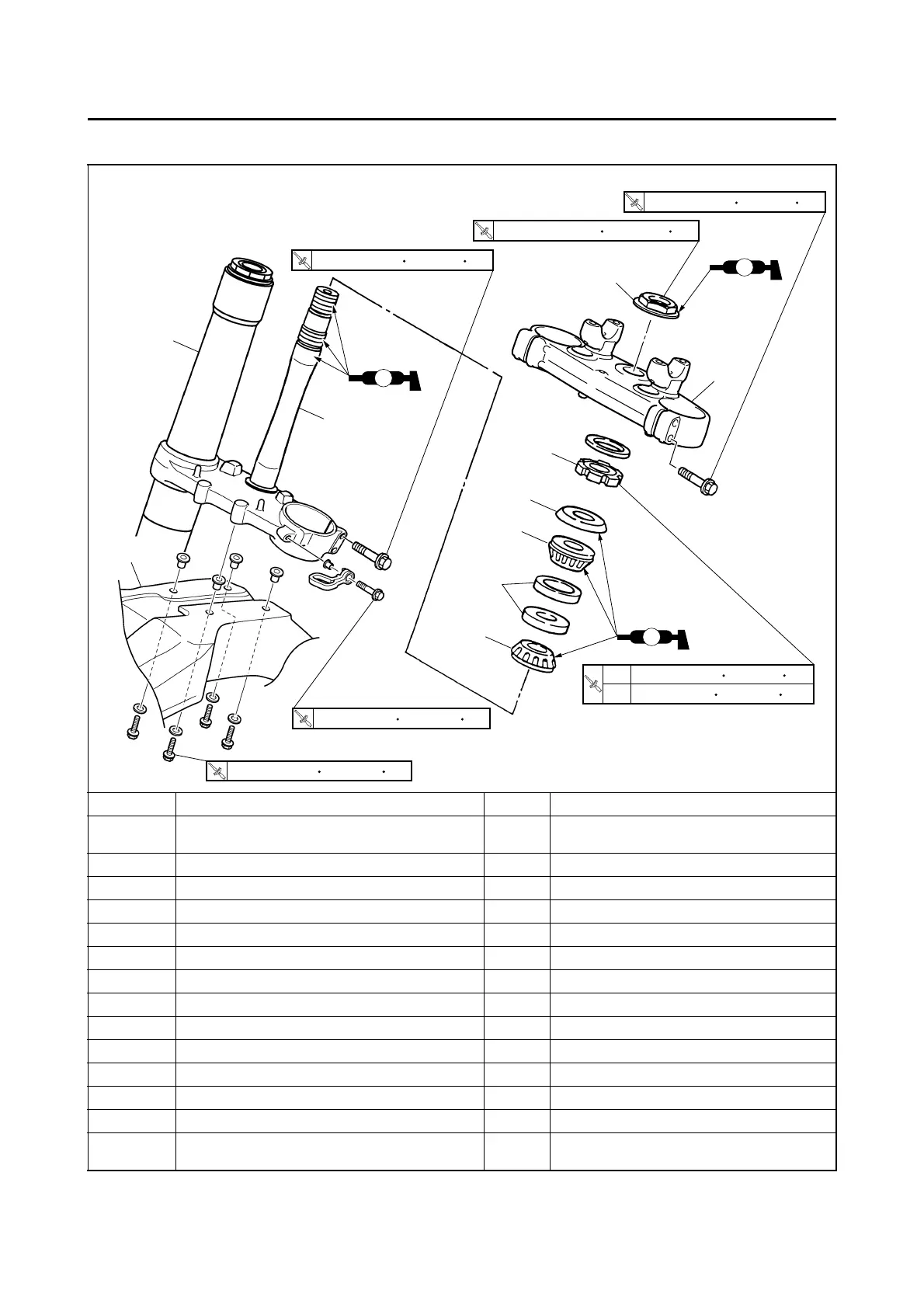

STEERING HEAD
Removing the lower bracket
Order Part name Q’ty Remarks
Use a suitable stand to raise the front wheel
off the ground.
Number plate Refer to “GENERAL CHASSIS” on page 4-1.
Handlebar Refer to “HANDLEBAR” on page 4-31.
1 Front fender 1
2 Steering stem nut 1
3 Front fork leg (s) 2 Refer to “FRONT FORK” on page 4-37.
4 Upper bracket 1
5 Steering ring nut 1
6 Lower bracket 1
7 Bearing race cover 1
8 Upper bearing 1
9 Bearing (lower side) 1
10 Bearing races 2
For installation, reverse the removal proce-
dure.
2
4
5
7
3
1
6
8
9
10
LS
1st
2nd
T
.R.
LS
LS
T
.R.
21 Nm (2.1 m lbf)kgf, 15 ft
T
.R.
9 Nm (0.9 m
lbf)kgf, 6.5 ft
T
.R.
21 Nm (2.1 m lbf)kgf, 15 ft
T
.R.
10 Nm (1.0 m lbf)kgf, 7.2 ft
T
.R.
145 Nm (14.5 m lbf)kgf, 105 ft
38 Nm (3.8 m
lbf)kgf, 27 ft
7 Nm (0.7 m
lbf)kgf, 5.1 ft
To Next Page
