FUEL TANK
7-1
EAS1SM1305
This section is intended for those who have basic knowledge and skill concerning the servicing of
Yamaha motorcycles (e.g., Yamaha dealers, service engineers, etc.). Those who have little knowl-
edge and skill concerning servicing are requested not to undertake inspection, adjustment, disas-
sembly, or reassembly only by reference to this manual. It may lead to servicing trouble and
mechanical damage.
EAS1SM1306
FUEL TANK

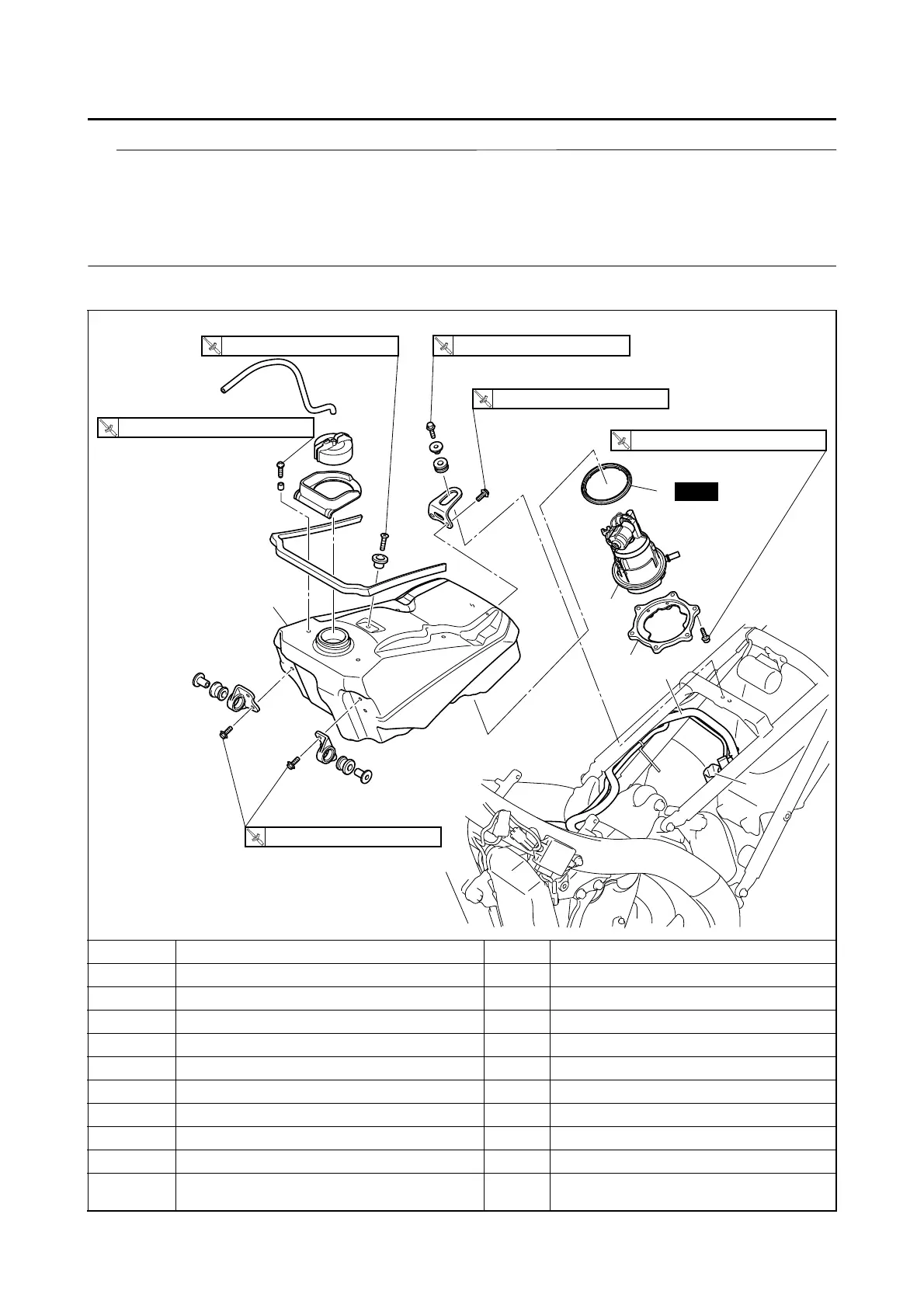

Removing the fuel tank
Order Part name Q’ty Remarks
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Side cover (left/right)
Air scoop (left/right)
1 Fuel pump coupler 1 Disconnect.
2 Fuel hose 1 Disconnect.
3Fuel tank 1
4 Fuel pump bracket 1
5 Fuel pump 1
6 Fuel pump gasket 1
For installation, reverse the removal proce-
dure.
4
(6)
(2)
(2)
(2)
(2)
2
5
6
3
1
New
4.0 Nm (0.40 m
•
kgf, 2.9 ft
•
Ibf)
T
.R
.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R
.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.
R
.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R
.
9 Nm (0.9 m
•
kgf, 6.5 ft
•
Ibf)
T
.R
.
4.0 Nm (0.40 m
•
kgf, 2.9 ft
•
Ibf)
T
.R
.
To Next Page
