Yamaha YZ250F(E) - Page 205

CAMSHAFT
5-12

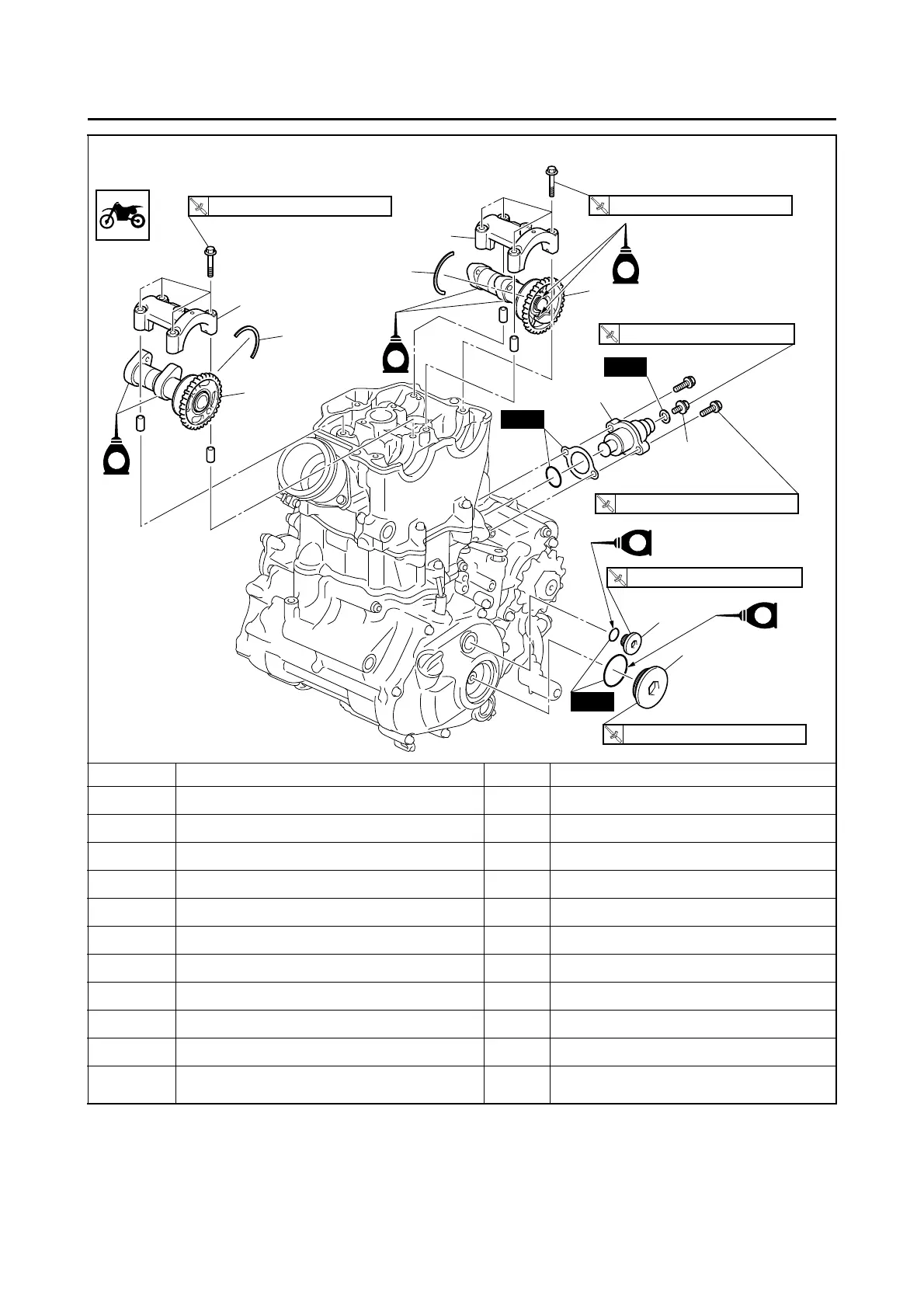

Removing the camshaft
Order Part name Q’ty Remarks
1
Timing mark accessing screw
1
2
Crankshaft end accessing screw
1
3
Timing chain tensioner cap bolt
1
4
Timing chain tensioner
1
5
Gasket
1
6
Camshaft cap bolt
8
7
Camshaft cap
2
8
Clip
2
9
Exhaust camshaft
1
10
Intake camshaft
1
For installation, reverse the removal proce-
dure.
6 Nm (0.6 m
•
kgf, 4.3 ft
•
Ibf)
T
.R.
6 Nm (0.6 m
•
kgf, 4.3 ft
•
Ibf)
T
.R
.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
5
8
3
4
1
2
7
6
5
(4)
(4)
6
M
M
E
New
New
New
E
E
