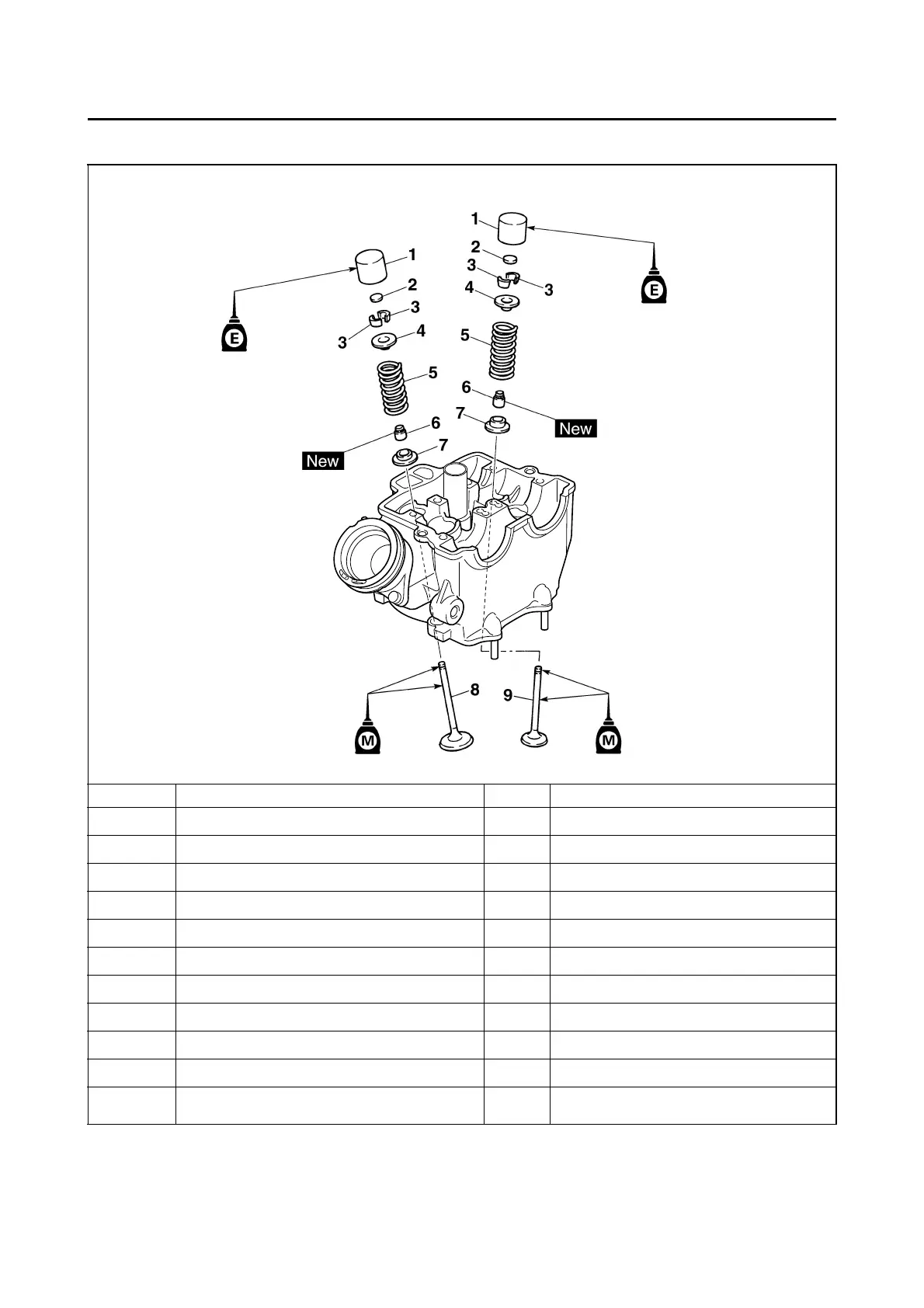

VALVES AND VALVE SPRINGS
5-22
EAS1SM1219
VALVES AND VALVE SPRINGS
Removing the valves
and valve springs
Order
Part name
Q’ty
Remarks
Cylinder head
Refer to “CYLINDER HEAD” on page 5-18.
1
Valve lifter
4
2
Adjusting pad
4
3
Valve cotter
8
4
Valve spring retainer
4
5
Valve spring
4
6
Valve stem seal
4
7
Valve spring seat
4
8
Intake valve
2
9
Exhaust valve
2
For installation, reverse th
e
removal proce-
dure.
214
216
