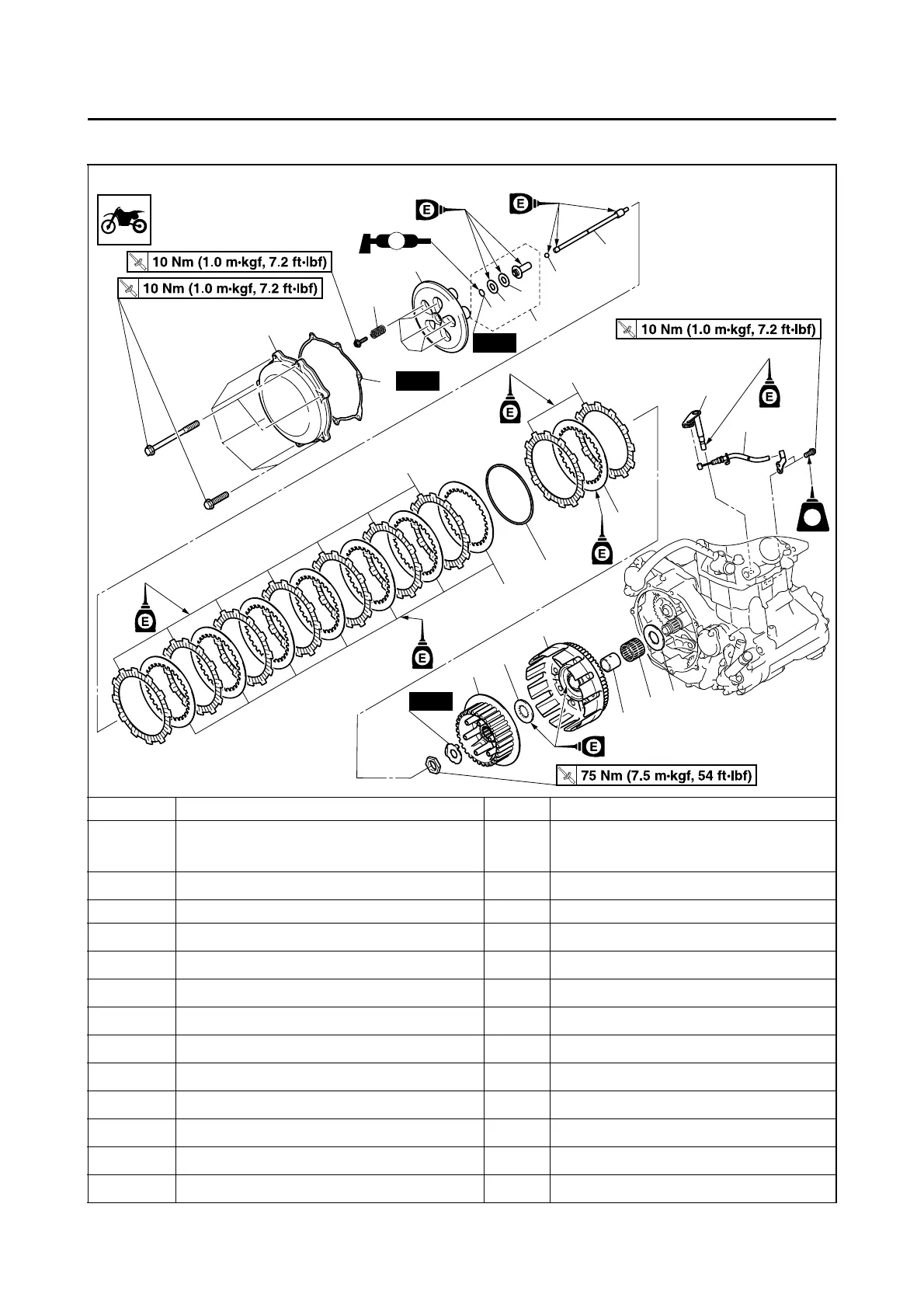

CLUTCH
5-35
EAS1SM1232
CLUTCH
Removing the clutch
Order Part name Q’ty Remarks
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-15.
Brake pedal Refer to “ENGINE REMOVAL” on page 5-1.
1 Clutch cable 1 Disconnect.
2 Clutch cover 1
3Gasket 1
4 Clutch spring 5
5 Pressure plate 1
6 Push rod 1 1
7 Circlip 1
8Washer 1
9 Bearing 1
10 Ball 1
11 Push rod 2 1
LS
New
New
New
2
3
4
5
(5)
(6)
7
8
9
6
10
11
12
21
1
12
13
17
18
19
16
15
14
13
T
.R
.
T
.R
.
T
.R
.
T
.R
.
LT
20
