Yamaha YZ250F(E) User Manual

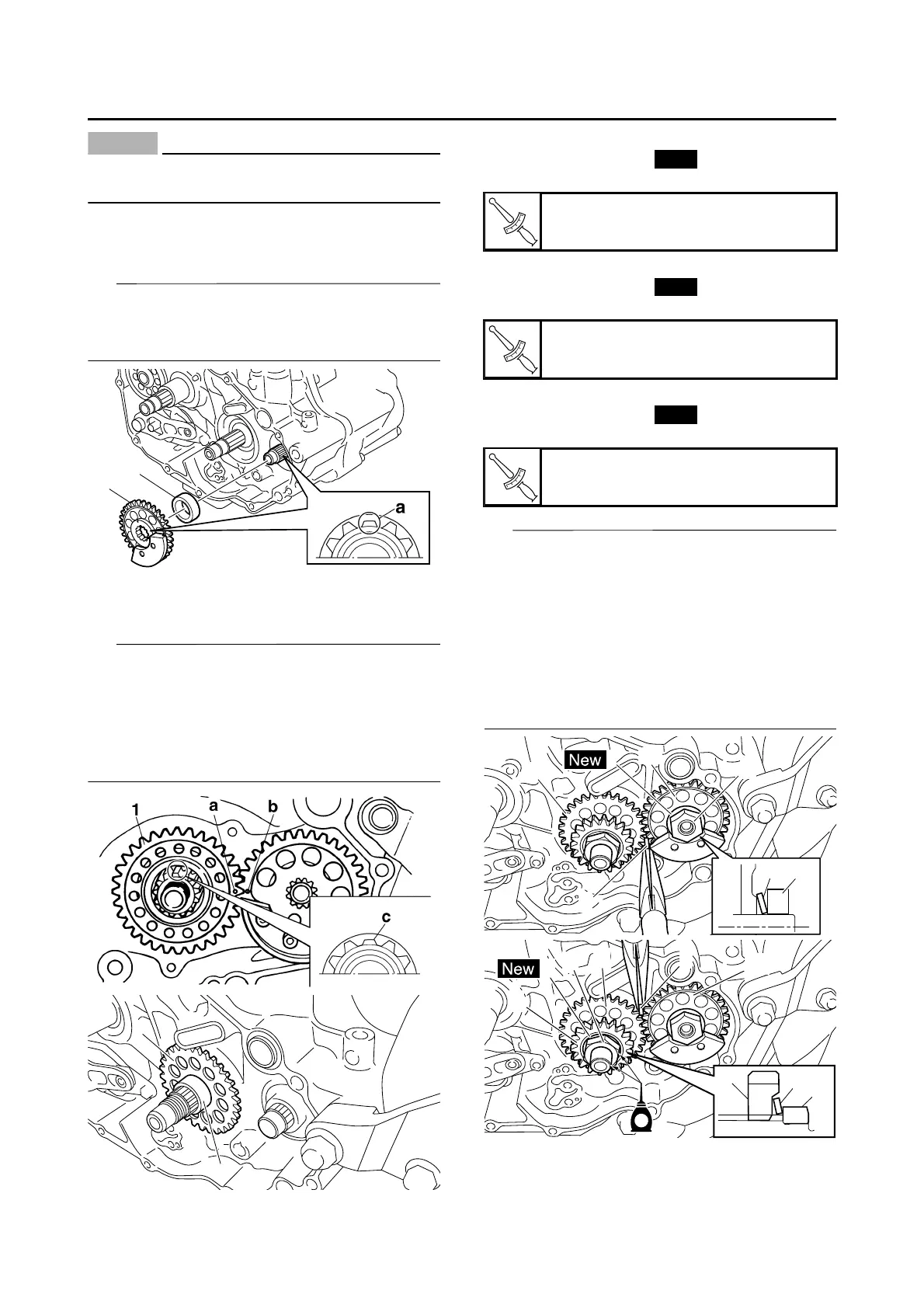

OIL PUMP AND BALANCER GEAR
5-56
NOTICE
After tightening the bolts, make sure that
the oil pump turns smoothly.
2. Install:
• Collar “1”
• Balancer weight gear “2”
TIP
Install the balancer weight gear and balancer
shaft with their lower splines “a” aligning with
each other.
3. Install:
• Balancer drive gear “1”
• Collar “2”
TIP
• Align the punched mark “a” on the balancer
drive gear with the punched mark “b” on the
balancer weight gear.
• Install the balancer drive gear and crankshaft
with the lower splines “c” aligning with each
other.
4. Install:
• Conical washer “1”
• Balancer weight gear nut “2”
• Primary drive gear “3”
• Conical washer “4”
• Primary drive gear nut “5”
•Balancer “6”
• Conical washer “7”
• Balancer nut “8”
TIP
• Apply engine oil to the contact surface and
threaded portion of the primary drive gear nut.
• Place an aluminum plate “a” between the
teeth of the balancer drive gear “9” and bal-
ancer weight gear “10”.
• Install the conical washer with its convex sur-
face “b” outward.
• Align the balancer flat portion “c” with the flat
portion “d”.
2
1
1
2
Balancer weight gear nut
50 Nm (5.0 m·kgf, 36 ft·lbf)
Primary drive gear nut
75 Nm (7.5 m·kgf, 54 ft·lbf)
Balancer nut
40 Nm (4.0 m·kgf, 29 ft·lbf)
New
T
R
.
.
New
T
R
.
.
New
T
R
.
.
a
2
10
b
2
9
1
b
5
3
a
4
10
5
9
3
E
