RADIATOR
6-1
EAS1SM1295
This section is intended for those who have basic knowledge and skill concerning the servicing of
Yamaha motorcycles (e.g., Yamaha dealers, service engineers, etc.). Those who have little knowl-
edge and skill concerning servicing are requested not to undertake inspection, adjustment, disas-
sembly, or reassembly only by reference to this manual. It may lead to servicing trouble and
mechanical damage.
EAS1SM1296
RADIATOR

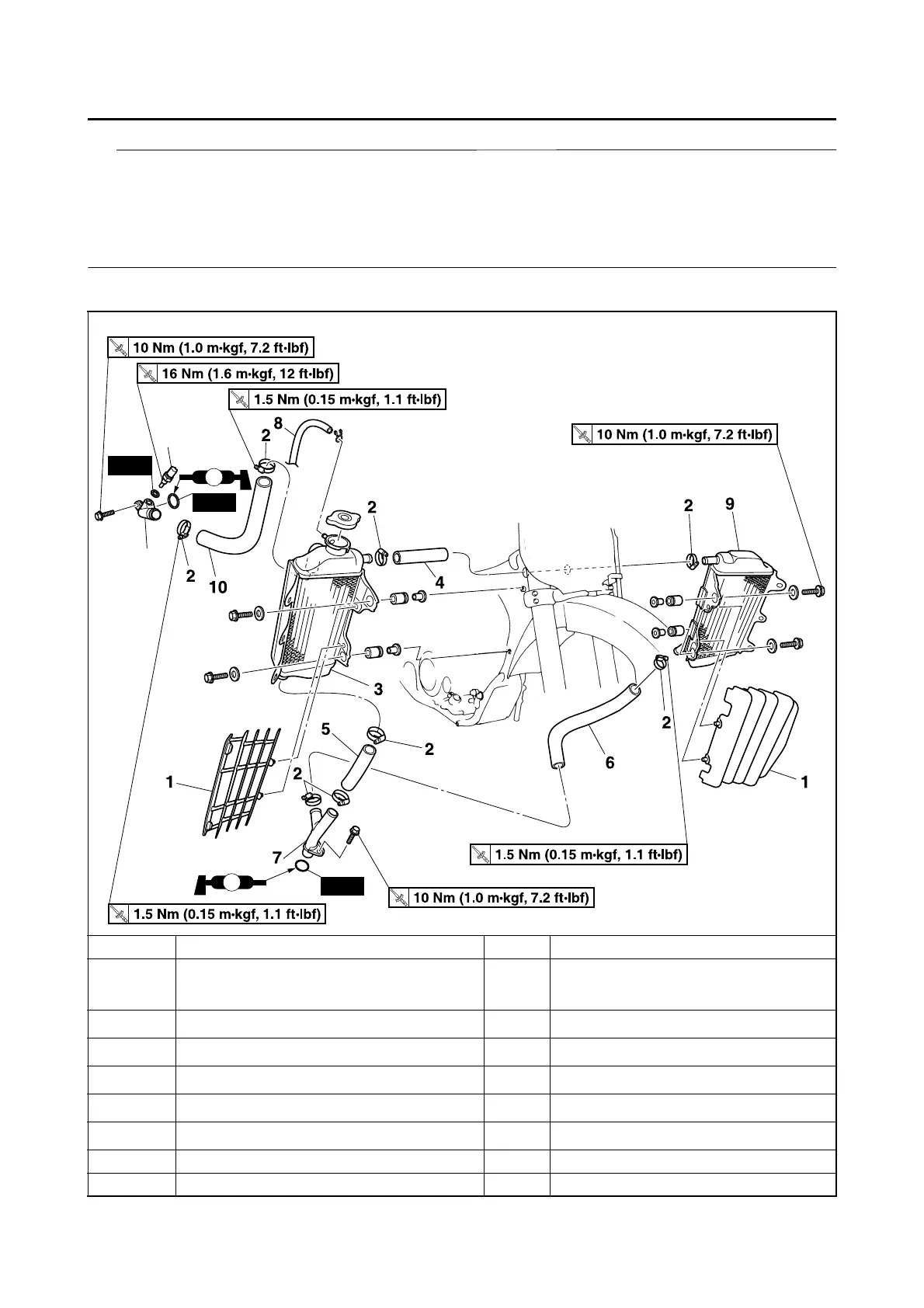

Removing the radiator
Order Part name Q’ty Remarks
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-8.
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Side cover (left/right) Refer to “GENERAL CHASSIS” on page 4-1.
Air scoop (left / right) Refer to “GENERAL CHASSIS” on page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case Refer to “THROTTLE BODY” on page 7-5.
1 Radiator guard 2
2 Radiator hose clamp 8 Loosen.
To Next Page
