BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK T4X IP PHONE 20-BD5476-00
©
2017 BROADSOFT INC. PAGE 54 OF 150

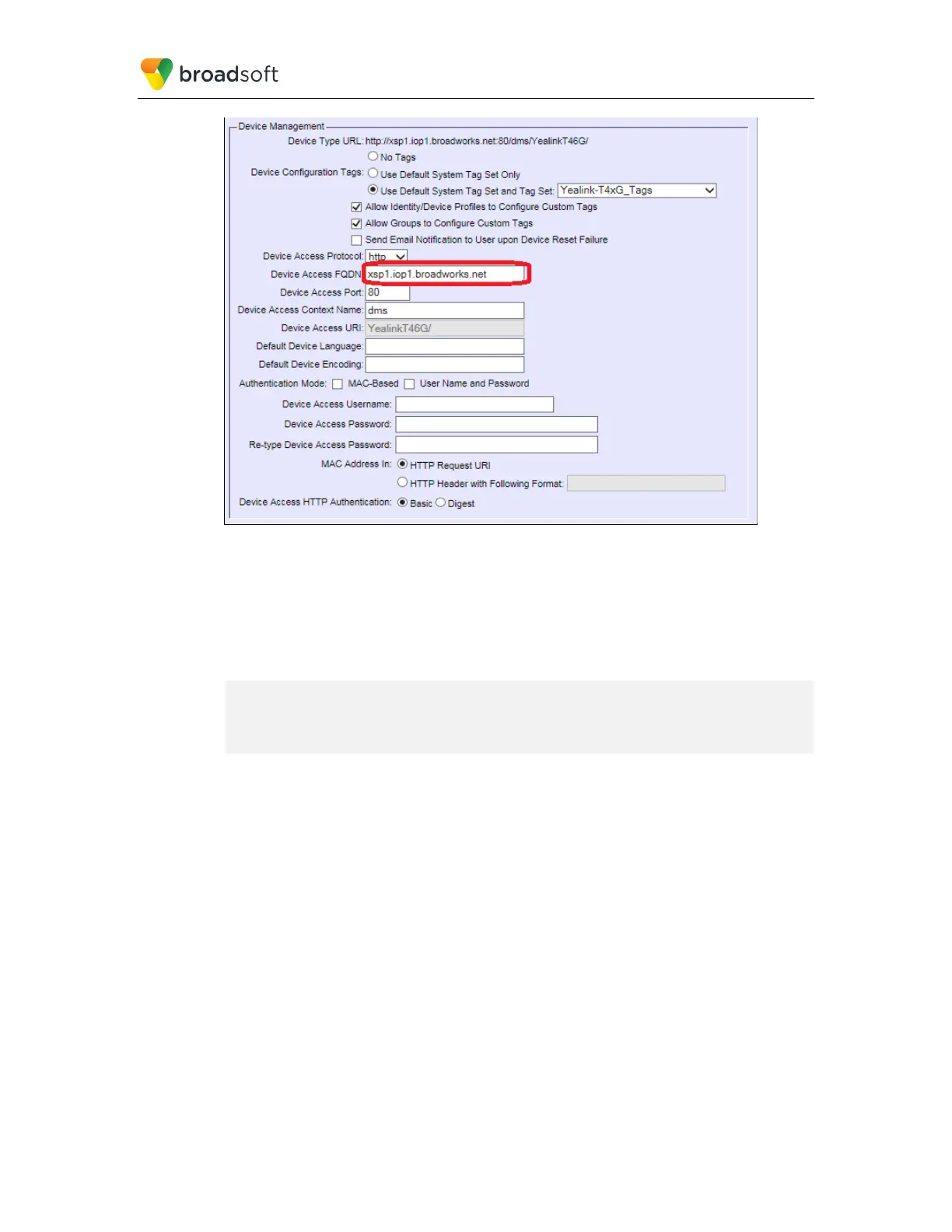

Figure 30 Device Access FQDN
7)
Click the Files and Authentication link and then select the option to rebuild all the
system files.
Firmware files must be obtained from Yealink. These files are not included in the
import. Complete the steps in section 5.2 .2.2.2 Define Device Profile Type Files to
define the static firmware files and to upload the firmware.
NOTE: The non-firmware static files in section 5.2.2.2.2 Define Device Profile Type Files are
normally included in the import.
8) After importing the DTAFs, restart the Application Server to load the TimeZoneAlias
files.
9) Update the device profile type language setting according to instructions provided in
section 5.2.2.2.4 Language Mapping.
5.2.2.2 Configuration Method 2: Manual
This section identifies the basic steps necessary for an administrator to manually configure
BroadWorks to add the Yealink T4x IP Phone as a Device Management-enabled device
type. This method should not be used except in special cases as described in the opening
to section 5.2.2 Configure BroadWorks Device Profile Type.
For more detailed instructions on the manual configuration, see the BroadWorks CPE Kit
Usage Guide [8] and the BroadWorks Device Management Configuration Guide [2].
The steps in this section can also be followed to update previously imported or configured
device profile type(s) with new configuration files and firmware.
If there are DTAFs for more than one device model, these steps must be completed for
each model.
