Yealink SIP-T46S Configuration Guide

BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK T4X IP PHONE 20-BD5476-00
©
2017 BROADSOFT INC. PAGE 69 OF 150
Device Management must be configured to facilitate the No Touch Provisioning method.
Configuration can be performed using the Device Management import function or done
manually. Each method is described in the following subsections
5.2.5.2.1 Configuration Method 1: Import
This section identifies the steps necessary to make use of the Device Management import
feature to configure BroadWorks to add the Device Management Defaults device type for
No Touch Provisioning.
The import method is available in BroadWorks Release 17.0 and later. For previous
releases, use the manual configuration method described in the next section.
Download the Yealink T4x CPE kit from BroadSoft Xchange at
www.broadsoft.com/xchange. Extract the DeviceManagementDefaults.DTAF.zip file from
the CPE kit. This is the import file.
Log in to BroadWorks as an administrator. Browse to System → Resources →
Identity/Device Profile Types and select Import. Select Browse to find the extracted DTAF
file and click OK to start the import.
After the import finishes, the following post-import configuration steps must be completed.
Browse to System → Resources → Identity/Device Profile Types and perform a search to
find the imported DeviceManagementDefaults device profile type. Browse to the Profile
page and change the Device Management Device Access FQDN to your Xtended
Services Platform or Xtended Services Platform cluster address.
Example:

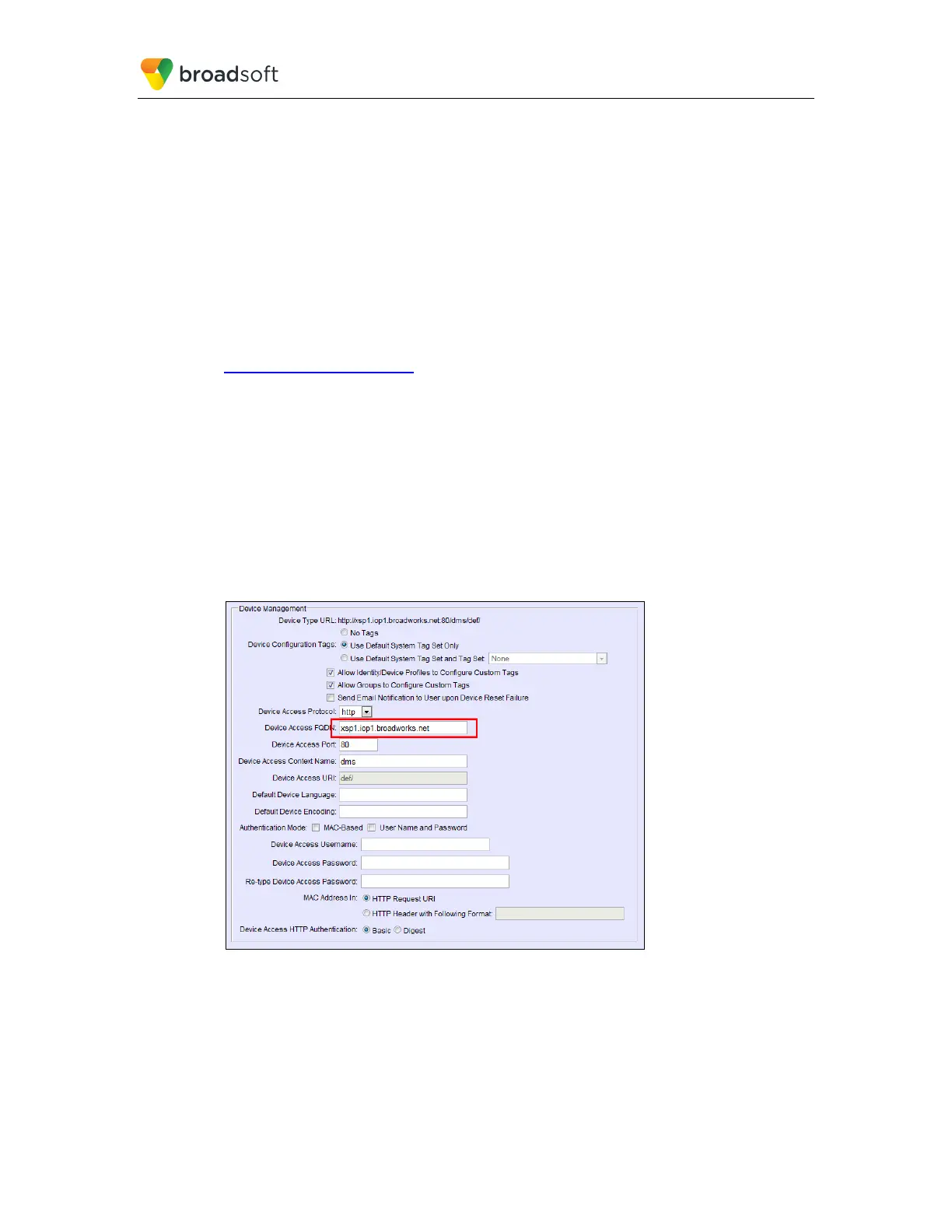

Figure 39 Device Access FQDN
Next, using the Files and Authentication link, select the option to rebuild all the system
files.

Yealink SIP-T46S Specifications

General

Manual	Yes
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	CNG, G.711Mu, G.711a, G.722, G.723.1, G.726, G.729ab, VAD, iLBC
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Volume control	Digital
Number of programmable keys	10
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	213 mm
Width	244 mm
Height	185 mm
Package depth	255 mm
Package width	274 mm
Package height	128 mm
