Yealink SIP-T46S Configuration Guide

BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK T4X IP PHONE 20-BD5476-00
©
2017 BROADSOFT INC. PAGE 73 OF 150

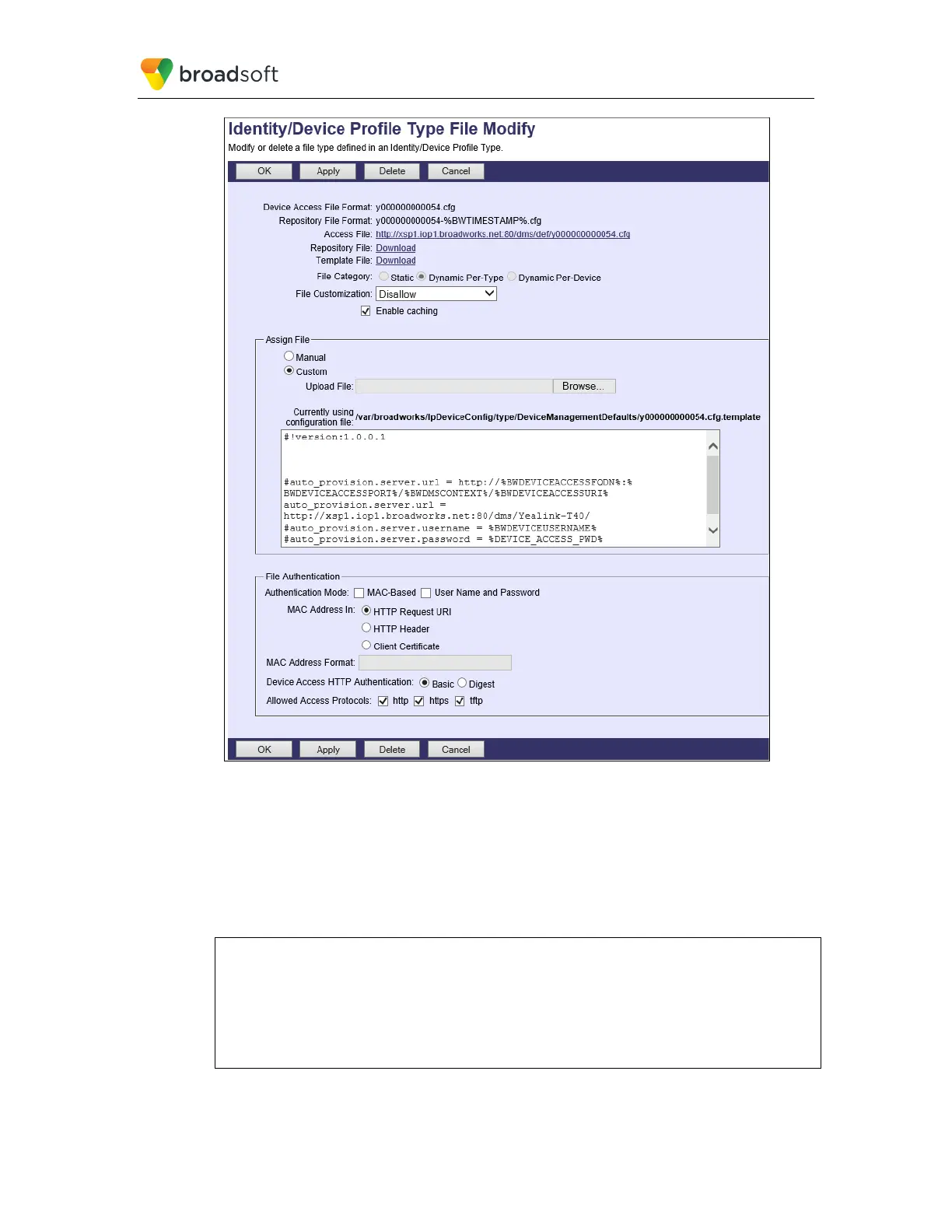

Figure 43 Default y000000000054.cfg
5.2.5.2.3 DHCP Server Configuration (BroadWorks Default) and Redirect Events
Configure the end customer’s DHCP server with Option 66/43 containing the default
BroadWorks Device Management URL as http://<Device Access FQDN>:<Device Access
Port>/ <Device Access Context Name>/def.
Example:
option BWRedir code 43 = string;
subnet 10.2.0.0 netmask 255.255.255.0 {
option subnet-mask 255.255.255.0;
option domain-name-servers 10.2.0.29;
option routers 10.2.0.1;
option BWRedir “http://xsp1.iop1.broadworks.net/dms/def/”
}

Yealink SIP-T46S Specifications

General

Manual	Yes
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	CNG, G.711Mu, G.711a, G.722, G.723.1, G.726, G.729ab, VAD, iLBC
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Volume control	Digital
Number of programmable keys	10
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	213 mm
Width	244 mm
Height	185 mm
Package depth	255 mm
Package width	274 mm
Package height	128 mm
