York MILLENNIUM YCAS0623 User Manual

87
YORK INTERNATIONAL
FORM 201.18-NM2
COMPRESSOR COMPONENTS

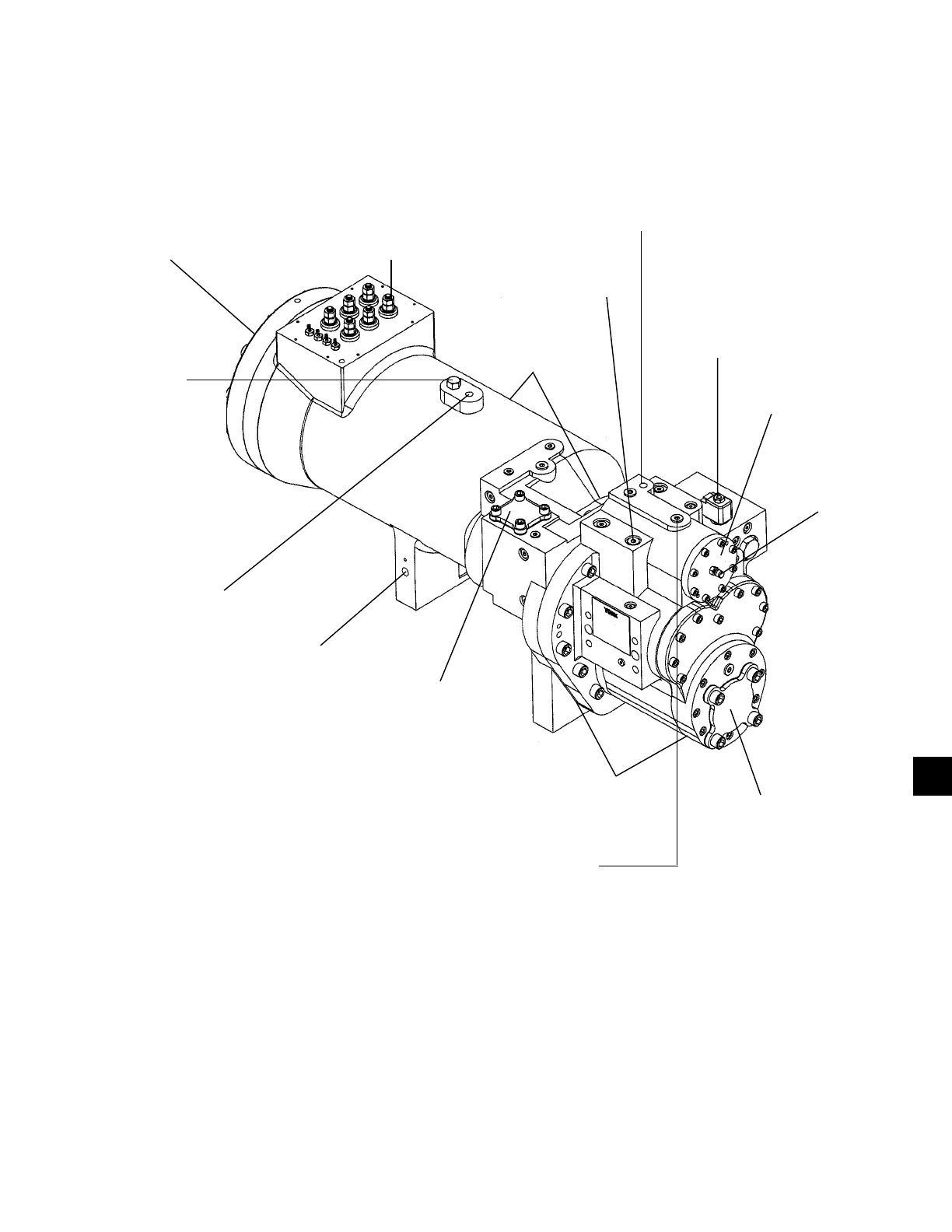

FIG. 33 – COMPRESSOR COMPONENTS
SUCTION GAS IN
MOTOR TERMINALS
LIFTING LUG
THREADED HOLE
OIL
HEATER
ECONOMIZER
GAS IN
DISCHARGE
CASE
OIL INLET
FROM CONDENSER
CODING COIL
DISCHARGE GAS OUT
OIL FILTER
BLEED &
EVACUATION
POINT
OIL FILTER
COVER PLATE
CAPACITY CONTROL SOLENOID
(CAPACITY CONTROL, 3 WAY VALVE,
IS LOCATED UNDER THE SOLENOID)
LIFTING LUG
THREADED HOLE
OIL PRESSURE
TRANSDUCER LOCATION
ROTOR CASE
STATOR
LOCKING BOLT
LD03668
