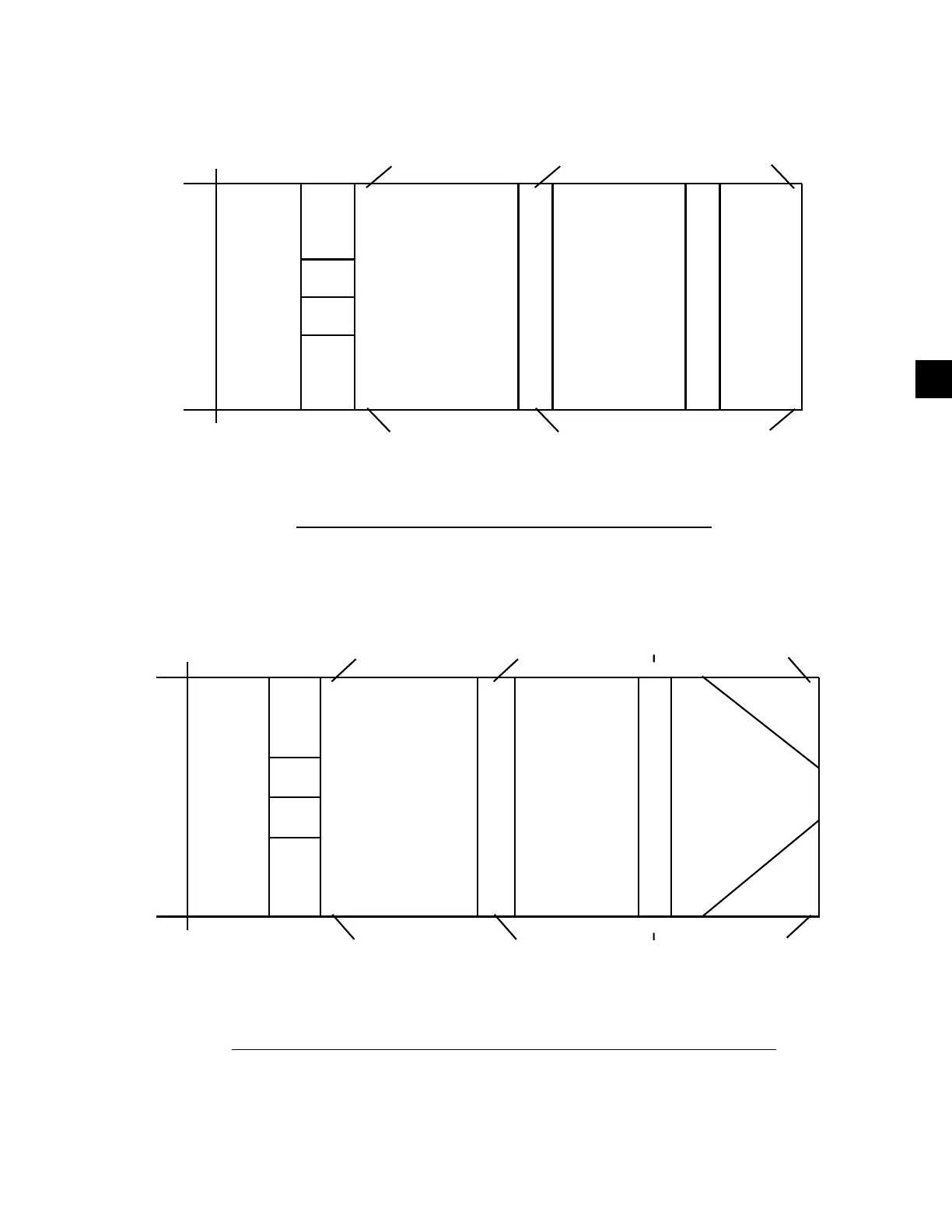

ISOLATOR MOUNTING POSITIONS
NOTE: Distances indicated are from the end of the chiller designated as X in FIG.8.
YCAV0157S/P, YCAV0157E/V, and YCAV0177S/P
YCAV0177E/V, YCAV0187S/P, YCAV0187E/V, and YCAV0197E/V
L1 L2 L3 L4
R1 R2 R3 R4
(3.75", 95mm) (48.5", 1231.9mm) (112.5", 2857.5mm) (224.75", 5708.7mm)








Control
Panel
LD10501
L1 L2 L3 L4
R1 R2 R3 R4
L5
R5
(3.75", 95mm) (48.5", 1231.9mm) (112.5", 2857.5mm) (197.53", 5017.3mm) (265", 6731mm)










Control
Panel
LD10502
