145
JOHNSON CONTROLS
FORM 201.21-NM1 (1223)
6

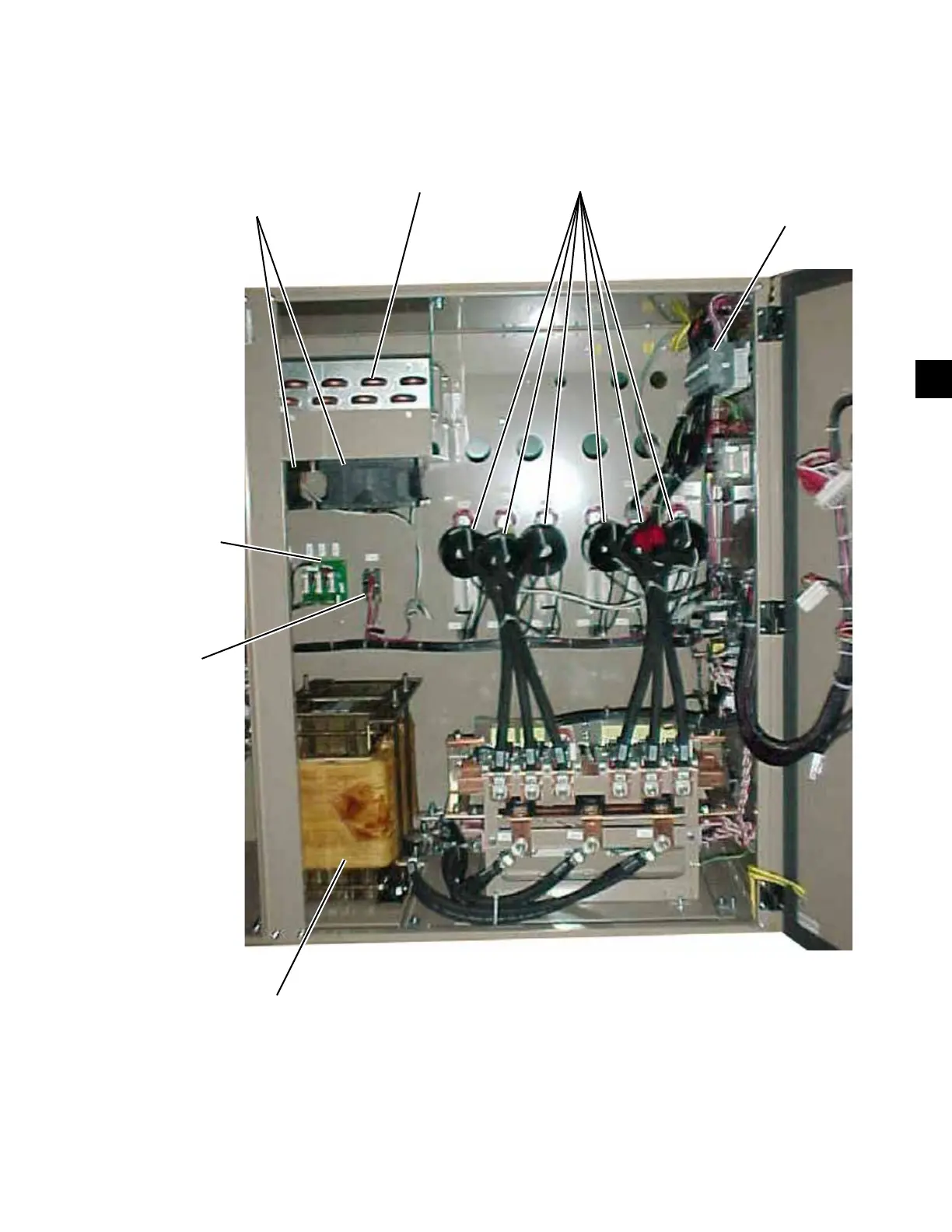

FIG. 21 - VSD COMPONENTS
LD10587
FAN
RELAYS
CURRENT
TRANSFORMERS
C13-C17
COOLING
FANS
1L LINE
INDUCTOR
CABINET
COOLING
COIL
TRANSIENT
SUPPRESSOR
BOARD
W/ 11FU, 12FU,
& 13 FU FUSES
(3 Phase Input)
10CR FAN
PUMP
CONTROL
RELAY
COMPONENT LOCATIONS (CON'T)
