16
YHVP
YHVP
Serie

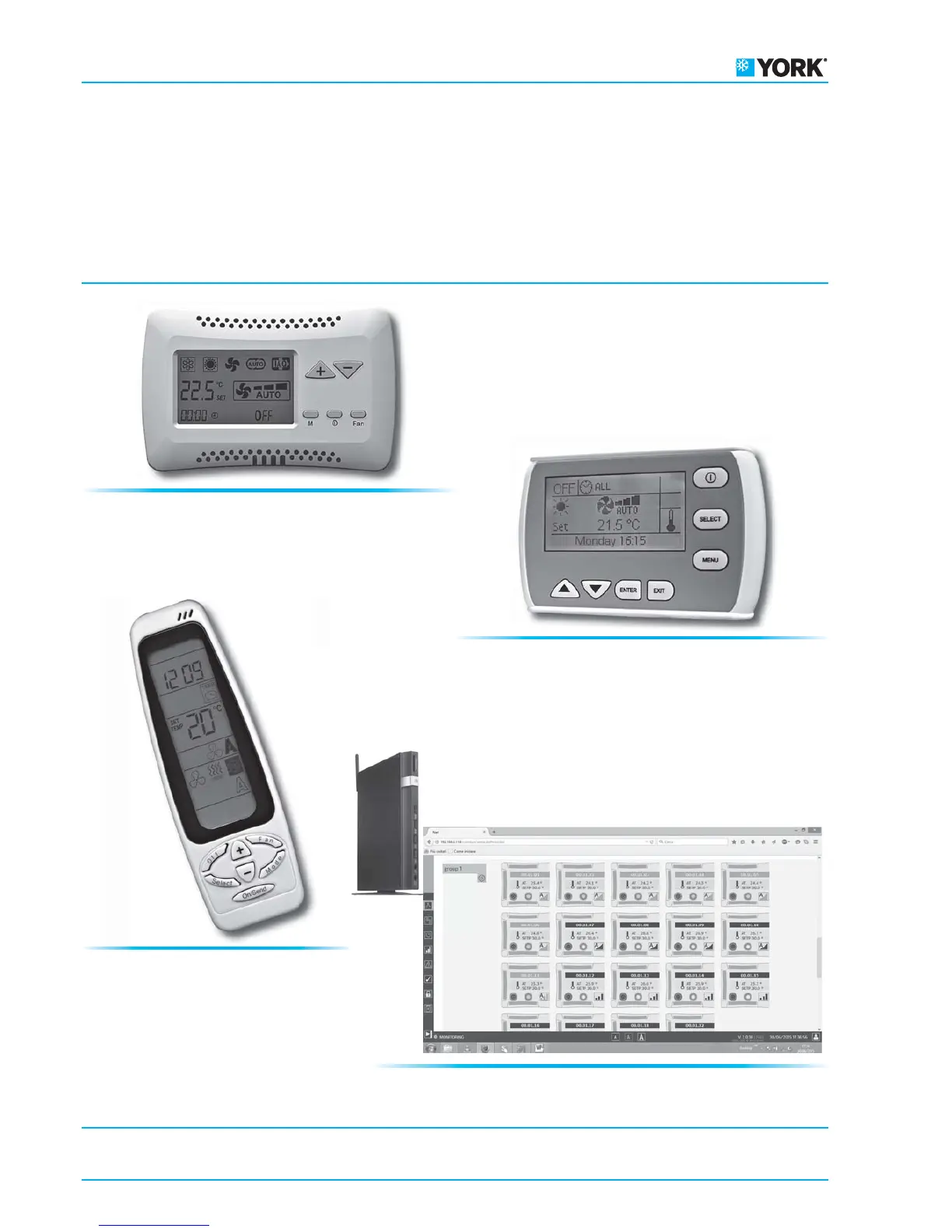

Controls and units
T and MB versions
RT03 INFRA-RED REMOTE CONTROL
PSM-DI MULTIFUNCTION CONTROL PANEL
NET SOFTWARE
JTM-B WALL CONTROL
All the controls for the T and MB versions and their functions are described in detail from page 28.
All the YHVP units can be supplied in T version and in MB version.
• The T version includes the infra-red remote control that allows the management of a single unit (the units can not be
controlled in a network).
• The MB version includes a wide range of controls, including the infra-red remote control (optional extra), which allows to
manage one single unit or several units by using the Modbus RTU - RS 485 communication protocol.
Units can be managed according to the Master/Slave logic (up to 20 units) or by supervisory controls.
The system consists in a MB power board (mounted on models YHVP-MB) and a series of controls, such as the JTM-B wall
mounted control, the RT03 infra-red remote control, the PSM-DI multifunction control and the NET supervisory program.
