32 Z4Mplus and Z6Mplus User Guide
Communication
System Considerations
Cable Requirements
Data cables must be fully shielded and fitted with metal or metalized connector shells.
Shielded cables and connectors are required to prevent radiation and reception of
electrical noise.
To minimize electrical noise pickup in the cable:
• Keep data cables as short as possible.
• Do not bundle the data cables tightly with the power cords.
• Do not tie the data cables to power wire conduits.
Note • Zebra printers comply with FCC Rules and Regulations, Part 15 for Class B
equipment using fully shielded data cables. Use of unshielded cables may increase
radiation above the Class B limits.
Note • RS-422 and RS-485 applications should use twisted shielded pairs as
recommended in the Appendix of the TIA/EIA-485 Specification.

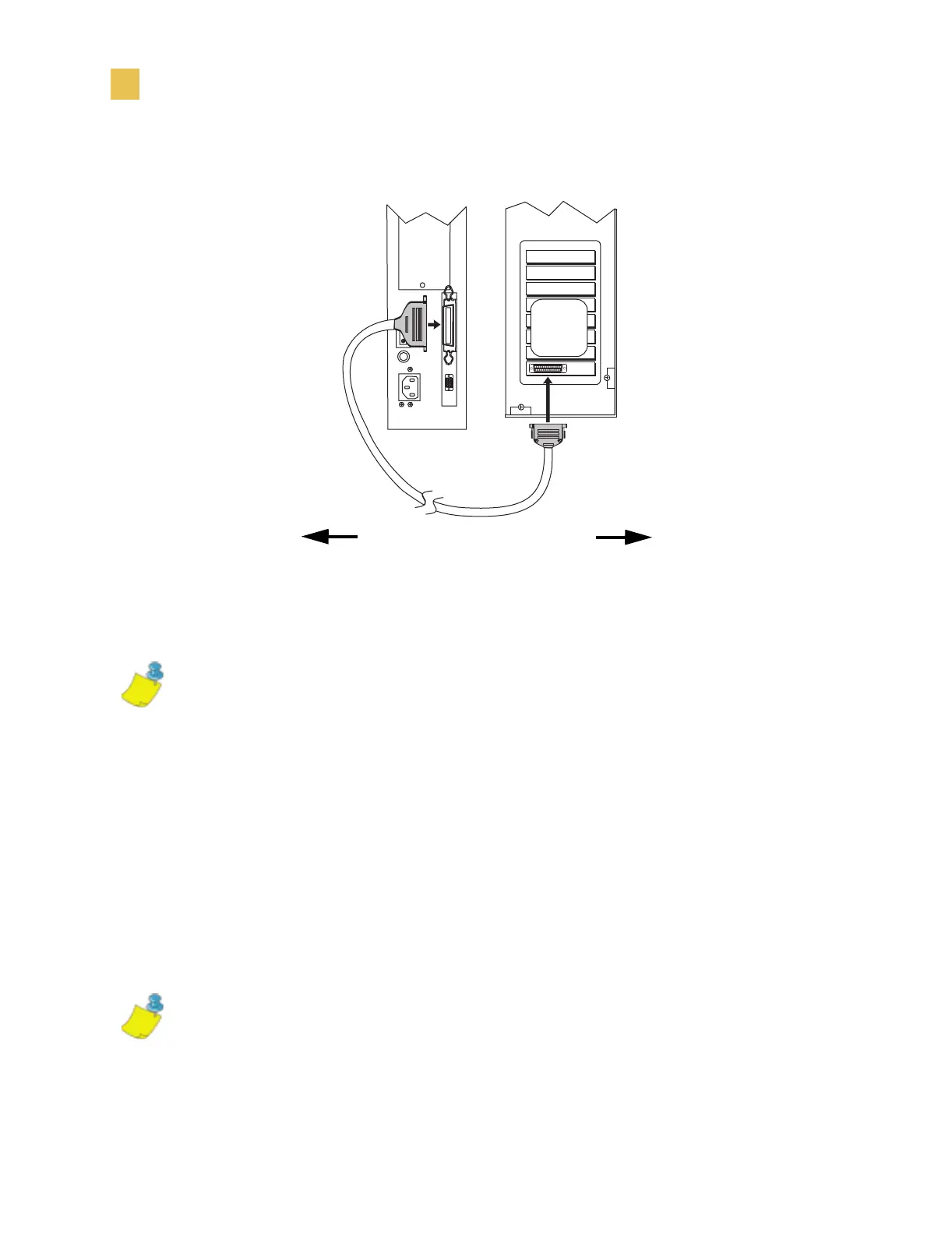

Printer
Computer
36-pin
male
25-pin
male
PC
25-pin
female
10 ft. (3 mm) maximum
