Adjust Printhead Pressure
You may need to adjust printhead pressure if printing is too light on one side, if you use thick
media, or if the media drifts from side to side during printing.
See Figure 8. The pressure adjustment dials have four possible settings designated by blocks
of increasing size embossed on the print mechanism. The smallest block (fully
counterclockwise) is considered position 1, and the largest block (fully clockwise) is
considered position 4.

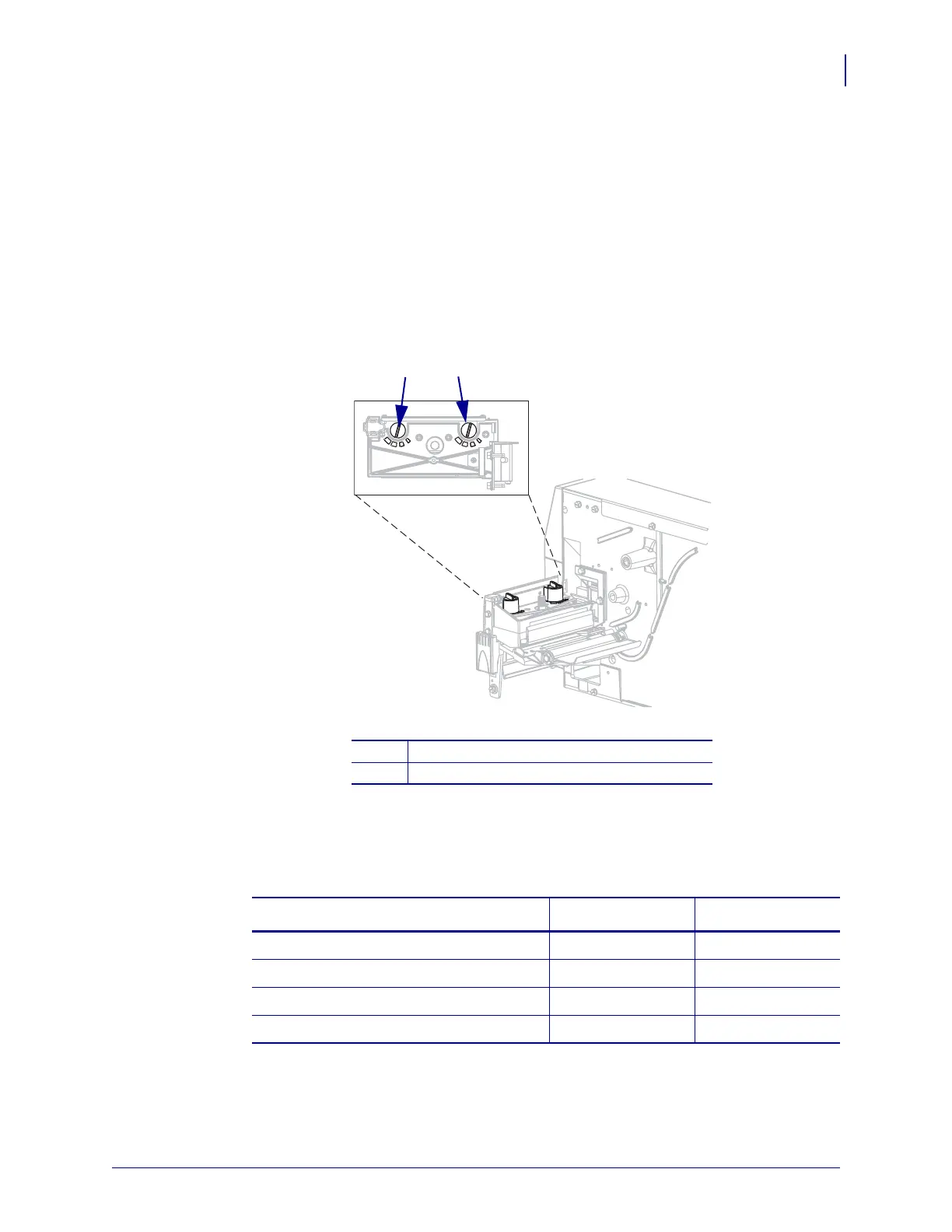

Figure 8 • Printhead Pressure Adjustment Dials
To set printhead pressure, complete these steps:
1. Use Table 10 to set the dial for your media.
1
Outside dial
2
Inside dial
1
2
Table 10 • Printhead Pressure
Media Type
Inside Dial Outside Dial
1 in. (25.4 mm)
31
2 in. (51 mm)
41
3 in. (76 mm)
32
3.5 in. and up (89 mm and up)
33
