ACQUAINTANCE WITH THE TRACTOR
H127 F205 H109

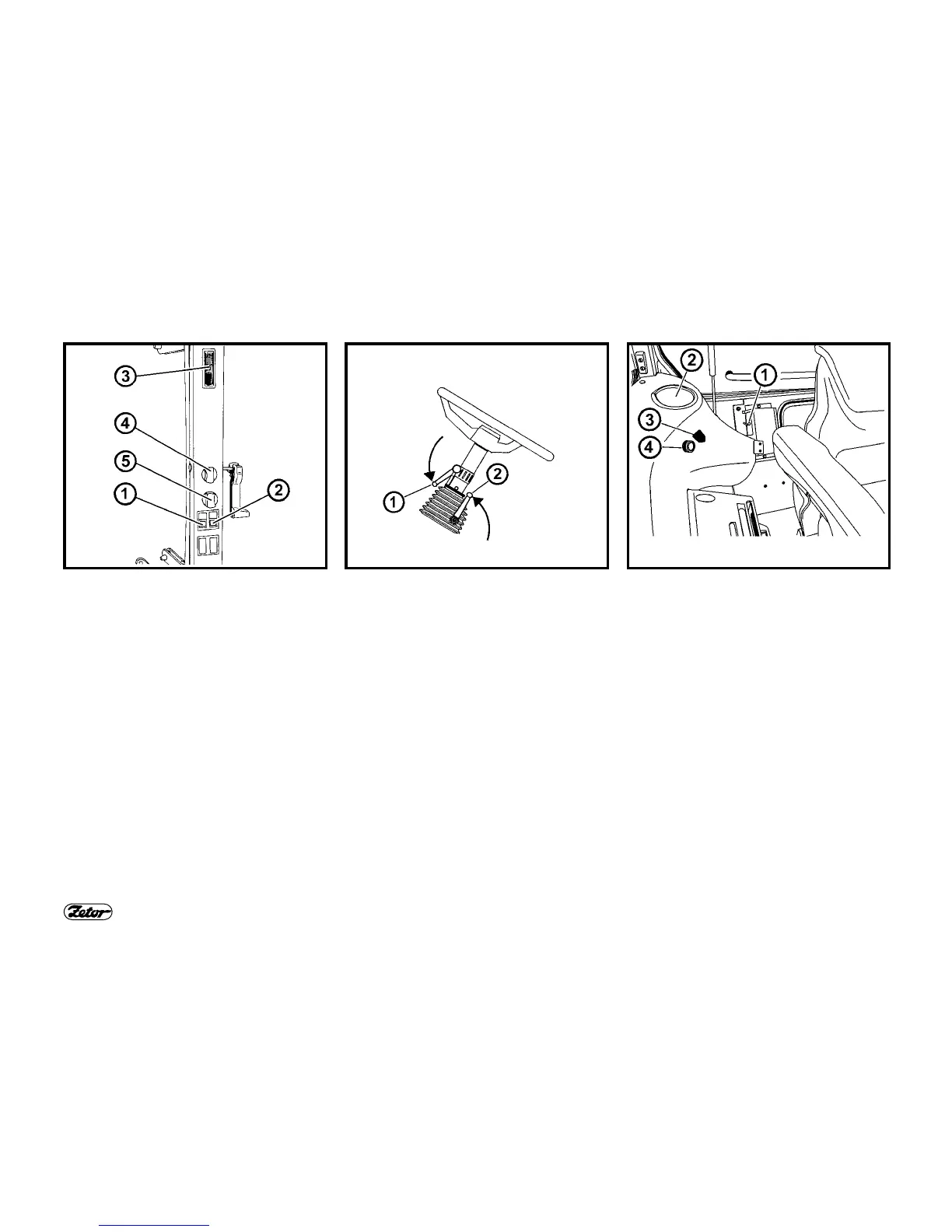

CONTROL PANEL ON THE RIGHT
CAB COLUMN
1- ∗ switch of front working lights on the
cab roof
2- ∗ switch of rear working lights on the
cab roof
3- Lighting of the cab
4- two-position switch of the front wiper
and windscreen washer
5- switch of the rear wiper
TILTING STEERING WHEEL
The tilting column of the steering wheel
enables variable adjustment of height and
angle position of the steering wheel.
Height adjustment of the steering
wheel
Adjustment is carried out by extraction or
retraction of the steering wheel after
unlocking of the arrestment by turning of
the lever (1) in direction of the arrow. After
adjustment the lever (1) shall be locked by
tightening of the lever against direction of
the arrow.
Angle adjustment of the steering wheel
Adjustment is carried out by tilting of the
steering wheel after unlocking of the ar-
restment by turning of the lever (2) in di-
rection of the arrow. After adjustment the
lever (2) shall be tightened against direc-
tion of the lever.
AGGREGATION HOLE, REAR RIGHT
PANEL
The lower window is fixed, with a hole for
connection of controllers of the aggre-
gated implement (1).
The right rear panel includes a compart-
ment for a PET bottle (2), 3-pin socket
12V (3) and cigarette lighter (4).
