12
ACQUAINTANCE WITH THE TRACTOR
H171 H171 H171

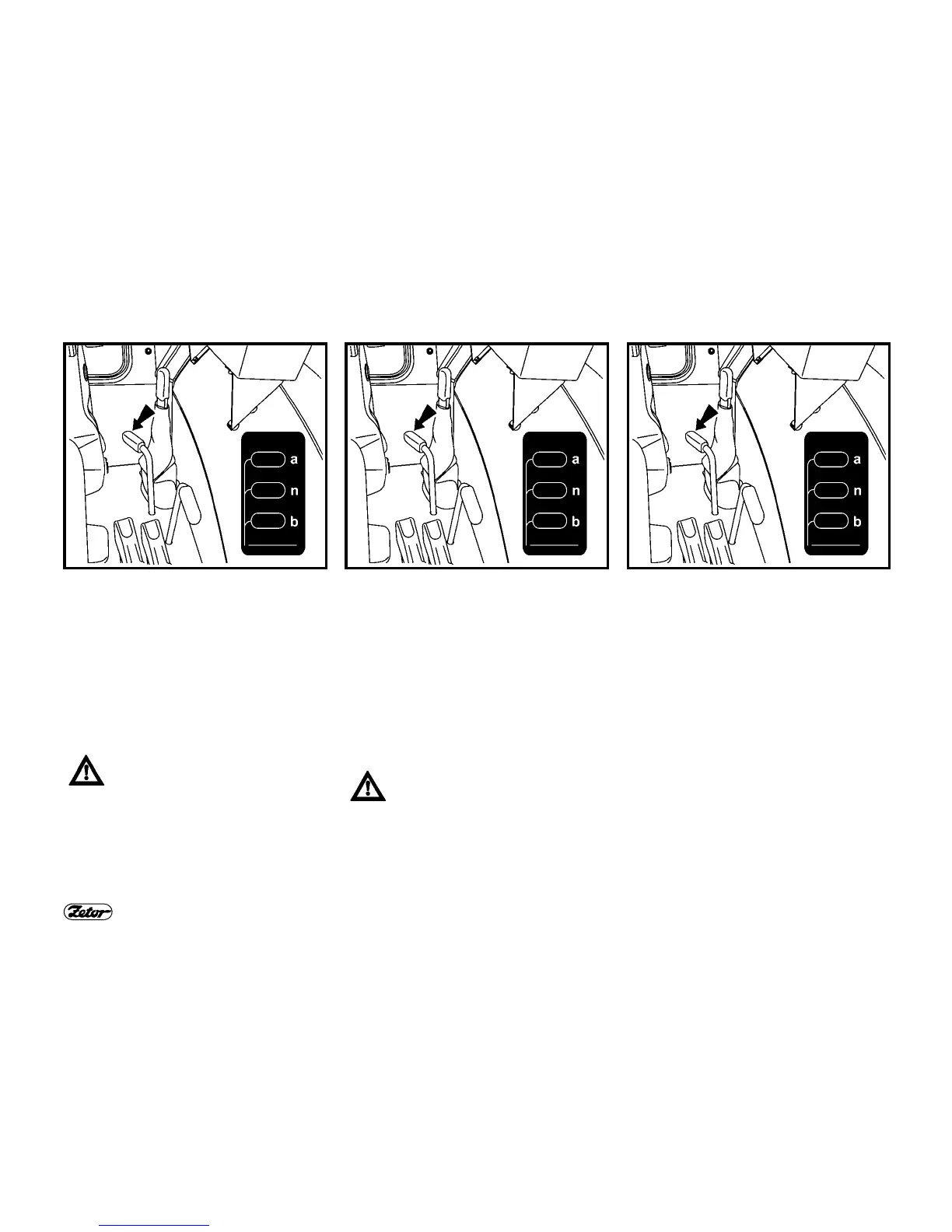

∗LEVER OF SHIFTING OF SPEED OF
THE OUTPUT SHAFT
540 AND 1,000 RPM
a -
540 rpm
n -
neutral position
b -
1,000 rpm
Shifting is carried out when the tractor is
in stillstand.
Shifting of 540 and 1,000 rpm is
possible regardless to the instal-
lation of a 6- or 21-spline termi-
nal. The output shaft speed and
type of the terminal shall be cho-
sen depending on the prescribed
speed of the aggregated ma-
chine.
∗LEVER OF SHIFTING OF SPEED OF
THE OUTPUT SHAFT
540 AND 540E RPM
a -
540 rpm
n -
neutral position
b -
540E rpm
The gear 540 E is used to achieve 540
rpm of the output shaft when preserving
economical speed of the engine.
Shifting is carried out when the tractor is
in stillstand.
Shifting of 540 a 540E rpm is
possible regardless to the in-
stalled 6- or 21-spline terminal.
The output shaft speed and type
of the terminal shall be chosen
depending on the prescribed
speed of the aggregated ma-
chine.
∗LEVER OF SHIFTING OF THE
REDUCER OF CREEP SPEEDS
a -
reducer of creep speeds
n -
neutral position
b -
normal speeds
Shifting is carried out when the tractor is
in stillstand.
