26
ELECTRIC INSTALLATION
F306

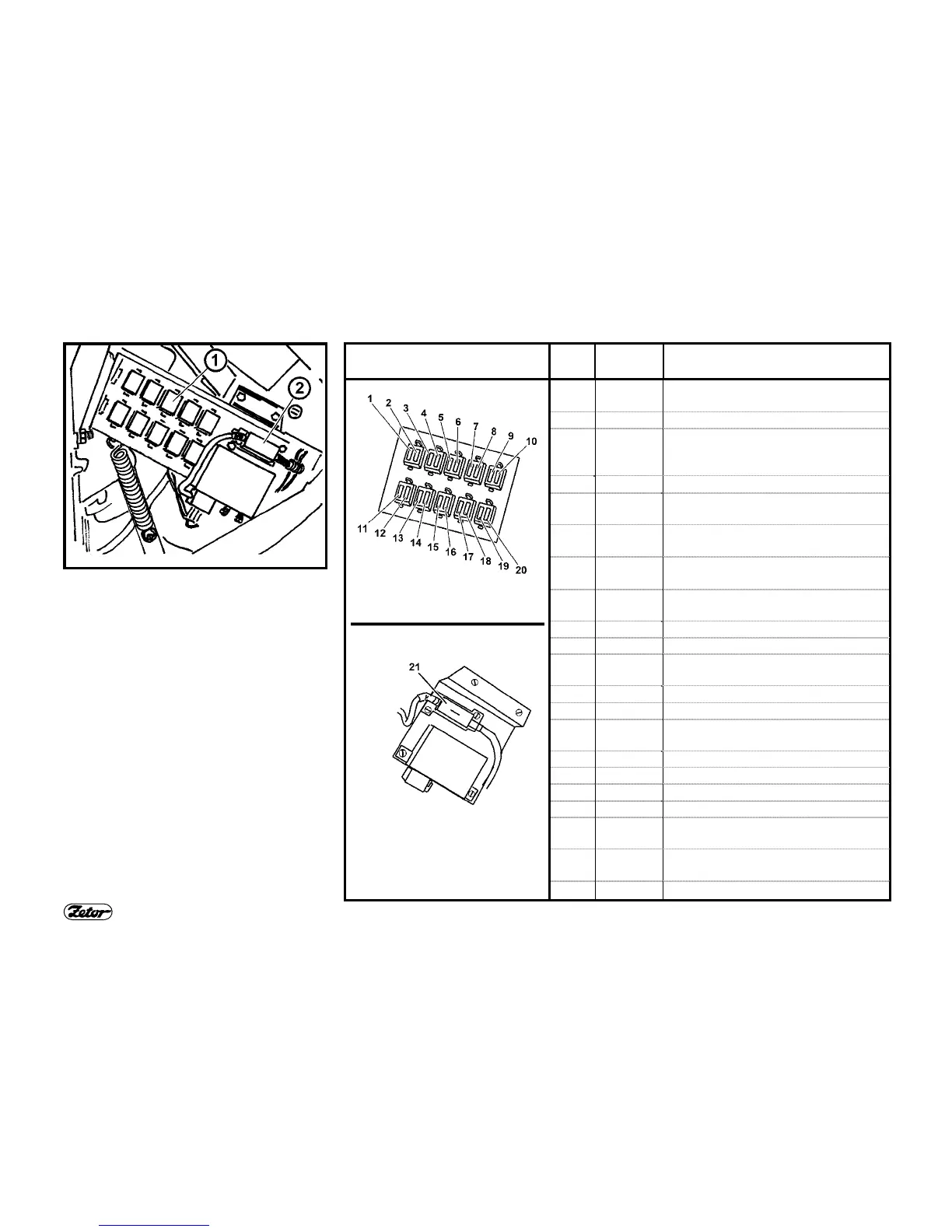

FUSE DOSE (21 FUSES)
It is accessible after removal of the steer-
ing console left cover.
The fuses (1) are knife type and should
be replaced only for fuses with the same
rating. In case of repeated blowing seek
the nearest service shop.
The fuse of glowing (2) is a strip type
with rating 80A.
Location of the fuses in the
fuse dose
Pos. Fuse
rating
Protected system
1 15A Interrupter of warning lights
Stop lights
2 15A Horn, light beacon
3 15A Control of front diving axle, control
of differential lock, dashboard
power supply
4 15A High beams with indicator
5 15A Left side marker lights, dashboard
illumination, registration plate lights
6 15A obrysová světla pravá, zadní pra-
covní světlomet s kontrolkou
7 15A tlumená světla pravá, mlhovka
s kontrolkou
8 7,5A Right side marker lights,
Indicator of lifgts in the mask/roof
9 15A Working lights in the front mask
10 3A Front output shaft Zuidberg
11 15A Front and rear wipers, washer, ra-
dio “15“
12 20A Heating fan, radio “30“
13 15A Recirculation, cigarette lighter
∗14
7,5A Air-conditioning(clutch of compres-
sors)
15 15A Not used
16 15A Not used
17 15A Compressor of driver’s seat
18 20A 3-pin socket
∗19
15A Front working headlamps on the
roof
∗20
15A Rear working headlamps on the
roof
D307
21 80A Glowing
