22
HITCHES
E459 E460

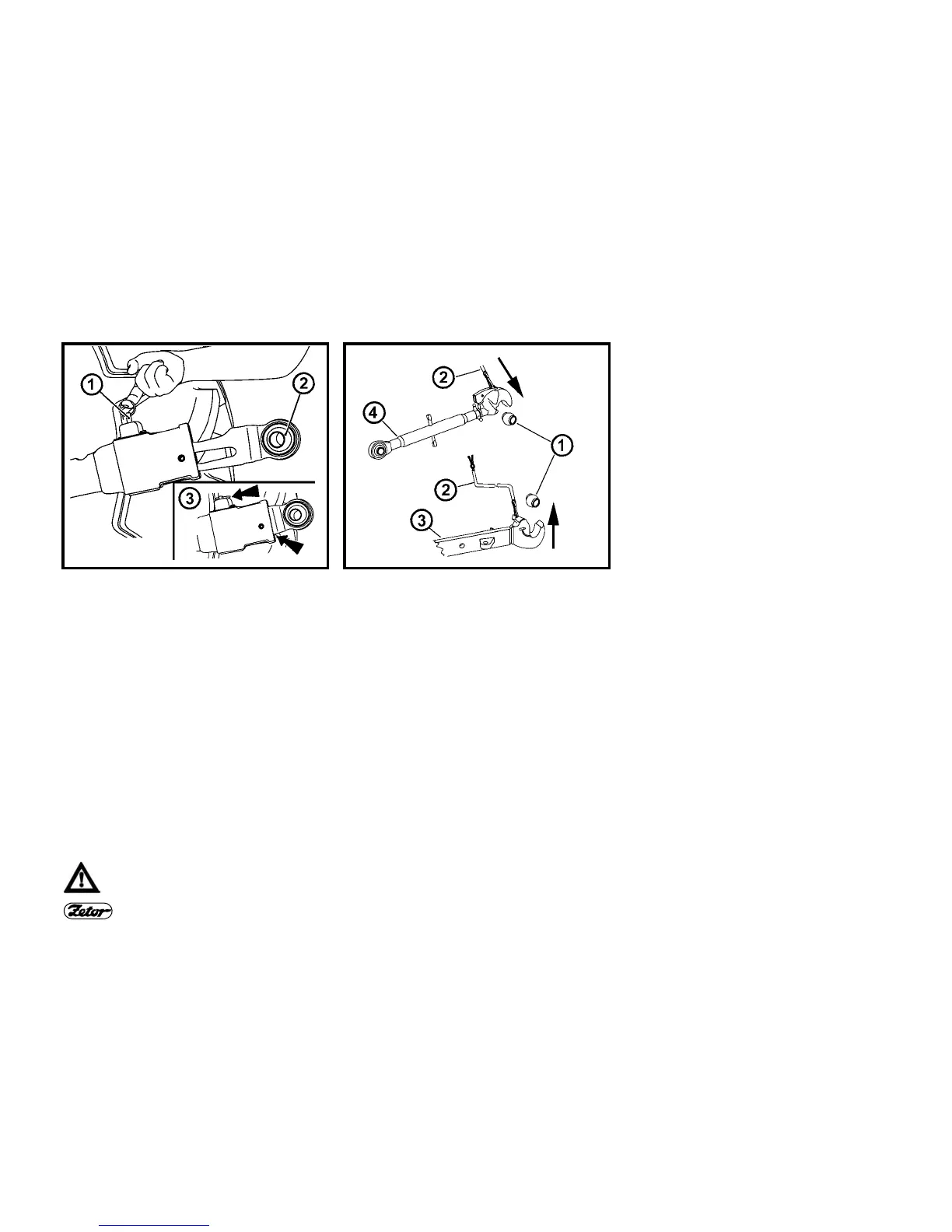

∗LOWER LINKS WITH TELESCOPIC
TERMINALS
The lower links of the hitch are equipped
with semi-automatic telescopic terminals
CBM that facilitate hitching of the imple-
ment to the tractor. After pulling out the
locking pins (1) slide out the terminals
(2). These terminals then can be fas-
tened to the fixing pins of the carried im-
plement.
After hitching of the carried implement,
release arms of the hydraulic equipment.
By lowering of the arms and reversing of
the tractor backward the terminals (2)
slide into the links and lock themselves
automatically in their working position us-
ing the locking pins (1).
Check always position of the
telescopic terminals, see Fig. (3).
∗LOWER LINKS WITH HOOKS CBM
The lower (3) and upper (4) links of the
hitch are fitted with hooks CBM.
First the implement shall be fitted with
hitching balls CBM (1) and the distance
between the lower links (3) of the hitch
shall be adjusted by limiting links.
During reversing and lifting of the 3-point
hitch its lower links (3) are connected to
the implement and then the driver con-
nects the upper link (4) of the 3-point
hitch from his cab.
For disconnection of the implement
unlock the hooks, using the control wires
(2) lift the upper link (4) and by lowering
of the 3-point hitch disconnect the lower
links (3).
