21
HITCHES
E453 E454 E455

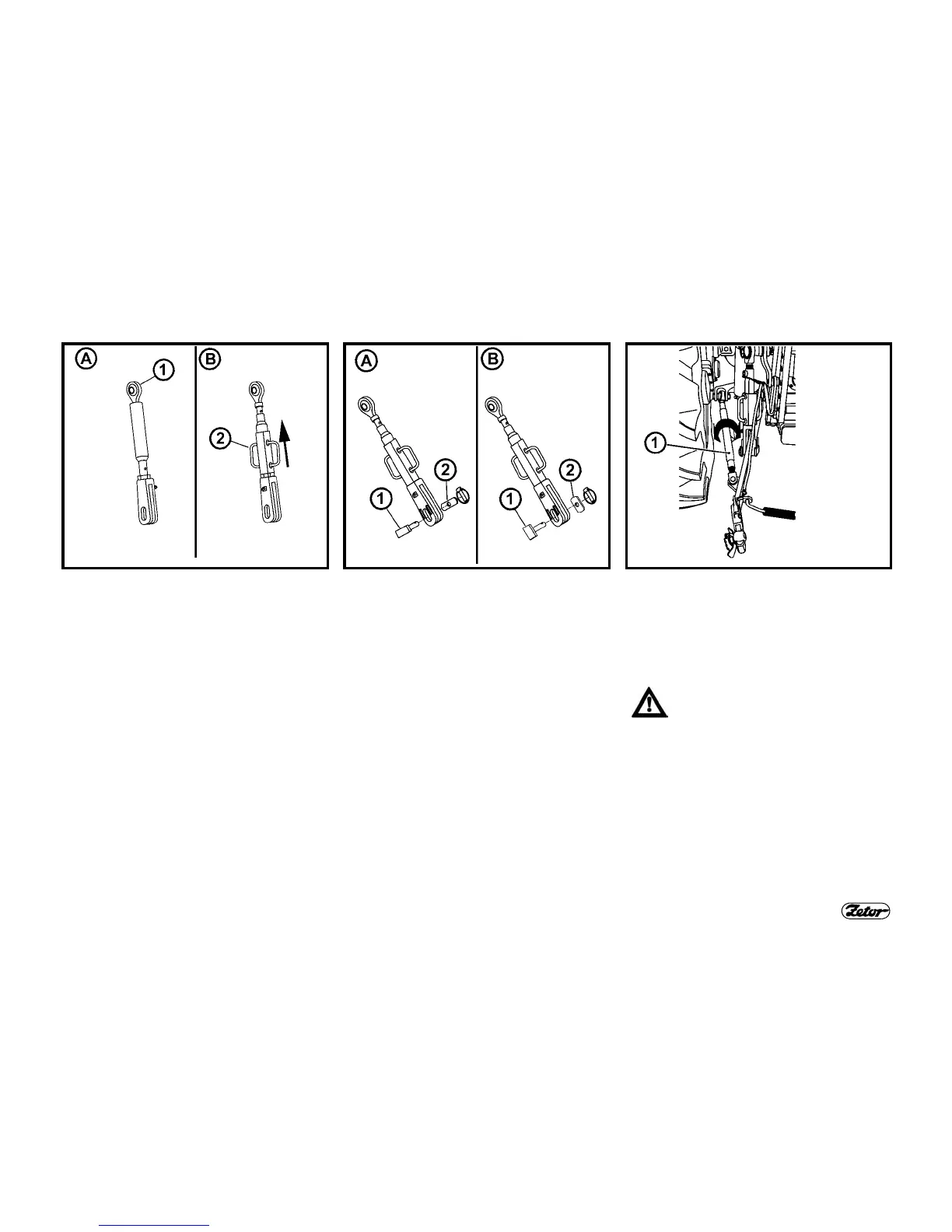

HEIGHT ADJUSTMENT OF THE
LIFTING LINKS
Fig. (A) – Left lifting link:
After disconnection of the arm upper end
from the hydraulic equipment pin turn the
eye (1) to adjust the height.
Fig. (B) – Right lifting link:
Slide out the handles (2) in direction of
the arrow (2) and adjust the height.
FIXED AND FREE POSITIONS OF
LOWER LINKS OF THE HYDRAULIC
EQUIPMENT
Fig. (A) – Fixed position of lower links of
the hydraulic equipment:
The pin head (1) and washer (2) are
mounted horizontally.
Fig. (B) – Free position of lower links of
the hydraulic equipment:
The pin head (1) and washer (2) are
mounted vertically.
Free position enables free hitching of ag-
ricultural implement. The end of either
link may move independently on the
height of the other link.
LIMITING LINKS
The limiting links (1) enable side swings
of the lower links.
The left and right limiting links can be ad-
justed by turning of the link tube, see the
arrow.
Both limiting links shall always be
mounted on the tractor.
