MAINTENANCE INSTRUCTIONS
G701 G710 G711

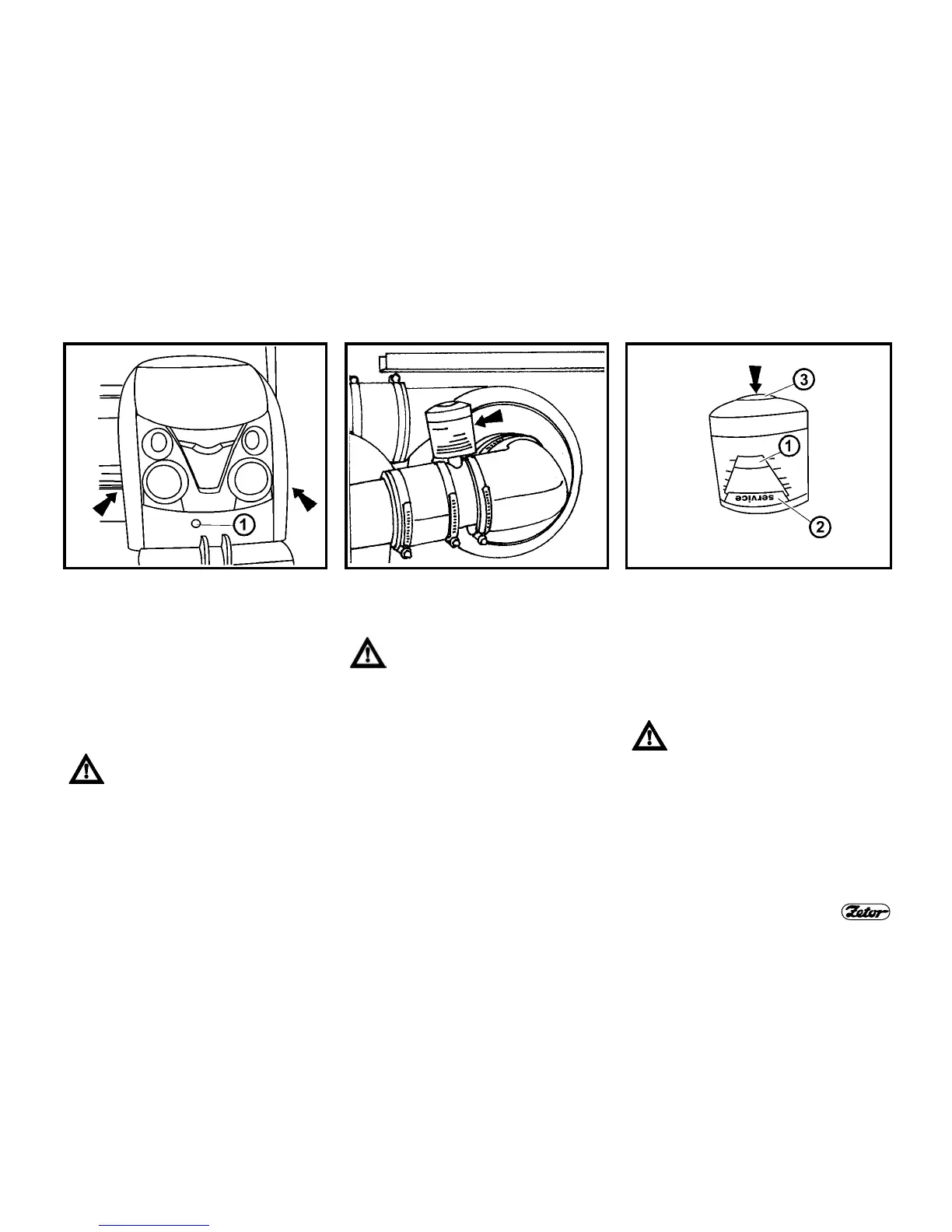

OPENING OF THE FRONT BONNET
Opening of the bonnet:
Unlock the bonnet by pressing the
pushbutton (1) and lift it in places of the
arrows.
The bonnet is kept in lifted position using
a gas-fluid strut.
Closing of the bonnet:
Take the bonnet in places of the arrows
and press it down until the lock clicks.
Rapid closing of the bonnet may
damage filaments of the head-
lamp bulbs in the front bonnet.
MAINTENANCE OF THE DRY AIR
CLEANER – INDICATOR OF
CLOGGING
Maintenance of the cleaner shall
be carried out when clogging is
indicated.
The indicator is accessible after tilting of
the engine front bonnet. It can be found
on the left side of the air cleaner, close to
the suction pipe elbow.
FUNCTION OF THE INDICATOR OF
CLOGGING
The level of clogging of the air filter is in-
dicated by position of the slider (1) in the
window. In case the indicator (1) reaches
the red field service (2), it is necessary
to carry out maintenance of the dry air
cleaner.
After completion of maintenance
of the dry air cleaner restore cor-
rect function of the indicator of
clogging.
Press the lid on the indicator body (3) in
direction of the arrow; this unlocks me-
chanically the slider (1) that returns to its
initial position and restores function of
the indicator.
