Zte MF60 User Manual

ZTE MF60 User Manual
30 Confidential and Proprietary Information of ZTE CORPORATION
• IP Address: Set IP address for the virtual server.
• Port Range: Set port numbers for the virtual server.
• Protocol: Set protocol for the virtual server.
• Comment: Type comment for the virtual server settings.
Select Enable, and input the detail information in the Virtual Server Settings area, then click Apply to
add a new rule.
Click Delete Selected to delete the rule which you selected.
Click Reset to clear what you select or input.
System Security

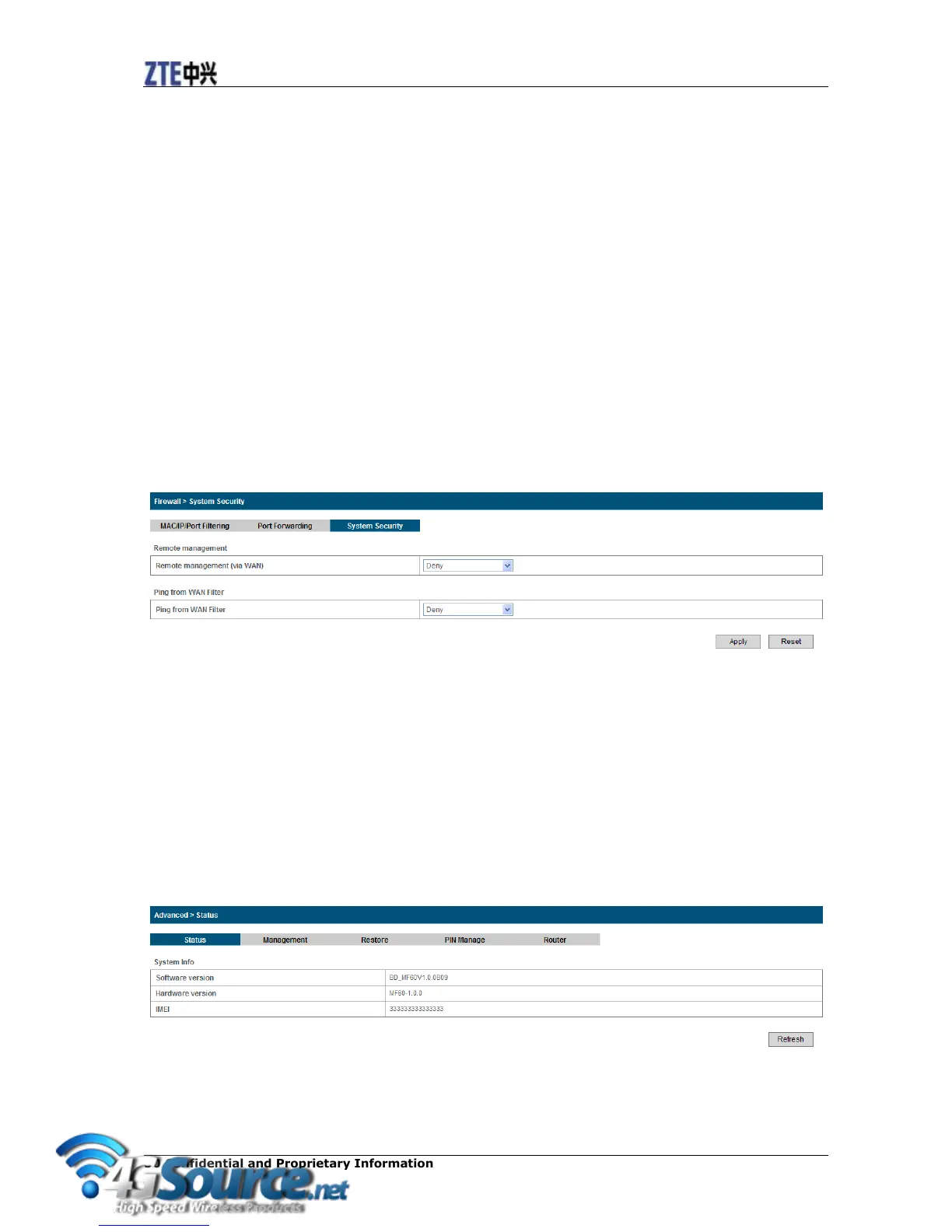

You can configure system firewall to protect the device from being attacked. Select Settings > Firewall >
System Security, the system security setting is shown in the following figure:
Allow or Deny the remote management function and ping from WAN filter function on requirement, and
then click Apply.
Click Reset to restore the default value.
Advanced
Status
Select Settings > Advanced > Status, the system information is shown in the following figure:
Management
Select Settings > Advanced > Management, the administrator settings information is shown in the

Zte MF60 Specifications

General

Wi-Fi	Yes
Data network	HSPA+
Battery capacity	1500 mAh
Mobile network generation	3G
Device type	Cellular wireless network equipment

Weight and Dimensions

Depth	53.7 mm
Width	99.7 mm
Height	13.9 mm
Weight	75 g
