Chapter4ServiceConguration
Thisinstancedescribeshowtocongureportmirroringonaswitchandport2can
monitorthepacketsonport1,seeFigure4-2.

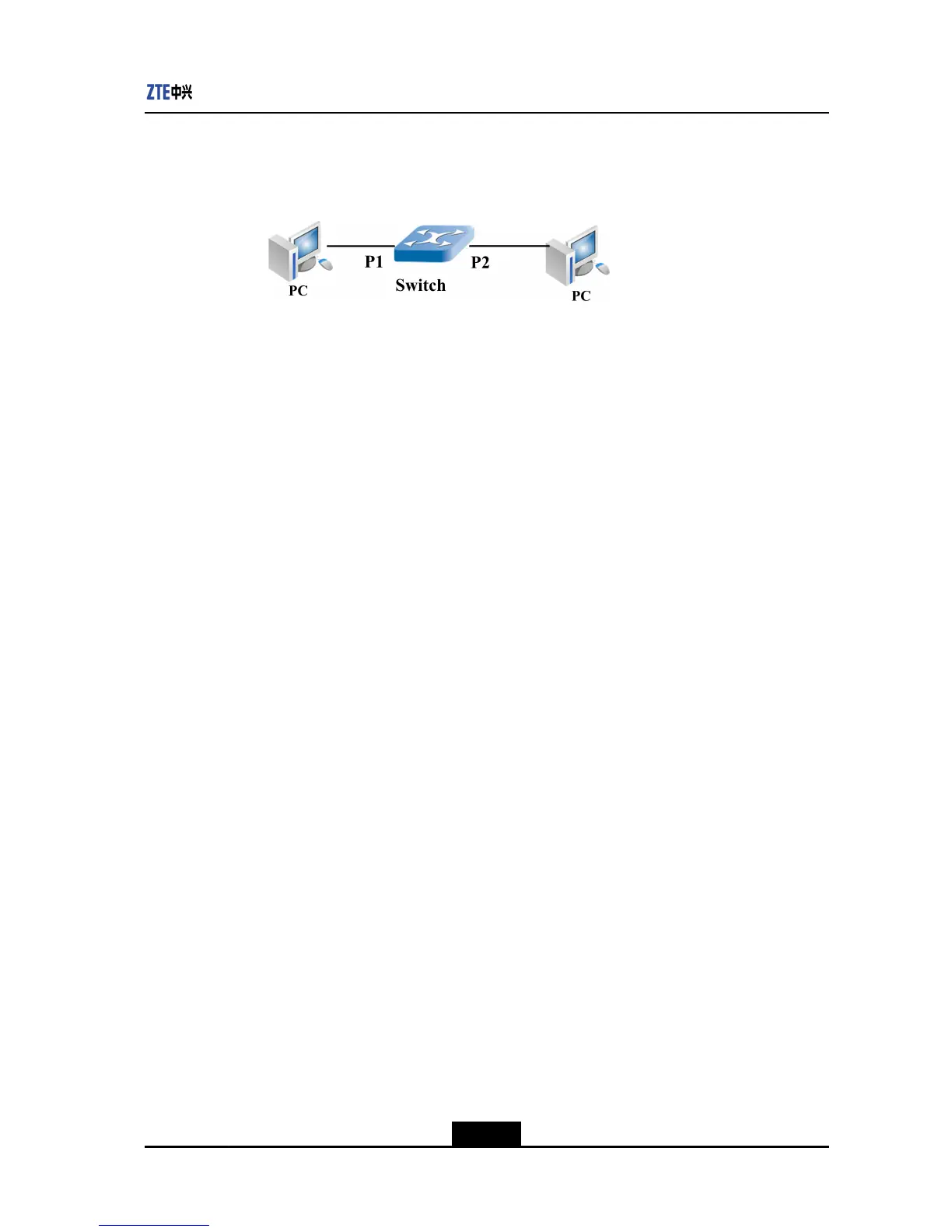

Figure4-2PortMirroringCongurationInstance
lCongurationProcedure
1.Thefollowingexampledescribeshowtosetportmirroringiningressdirection.
zte(cfg)#setmirrorsession1addsource-port1ingress
zte(cfg)#setmirrorsession1adddest-port2ingress
zte(cfg)#setmirrorstatisticalsample-interval100ingress
/*settheportsample-intervalofmirrorstatistic*/
zte(cfg)#setmirrorrspan-tagvlan-id100priority7ingress
/*setVLANtagaddedafterportmirroring*/
2.Thefollowingexampledescribeshowtosetportmirroringinegressdirection.
zte(cfg)#setmirroraddsource-port1egress
zte(cfg)#setmirroradddest-port2egress
zte(cfg)#setmirrorstatisticalsample-interval100egress
/*settheportsample-intervalofmirrorstatistic*/
zte(cfg)#setmirrorrspan-tagvlan-id100priority7engress
/*setVLANtagaddedafterportmirroring*/
lCongurationVerication
Checkportmirroringconguration
zte(cfg)#showmirrorsession1
Session1:
Ingressmirrorinformation:
---------------------------
Sourceport:1
Destinationport:2
Egressmirrorinformation:
---------------------------
Sourceport:1
Destinationport:2
zte(cfg)#showmirrorrspan
IngressRspanVLANtag:priority7,vlan100
EgressRspanVLANtag:priority7,vlan100
zte(cfg)#showmirrorstatistical
Ingressstatisticalmirror:sample-interval100
Egressstatisticalmirror:sample-interval100
4-11
SJ-20120409144109-002|2012-07-02(R1.0)ZTEProprietaryandCondential

Zte ZXR10 2918E Specifications

General

VLANs	4K
Jumbo Frame	9K
Power Supply	AC: 100~240V, 50~60Hz
Operating Temperature	0°C~45°C
Storage Temperature	-40°C~70°C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5%~95% (non-condensing)
Power Consumption	<=25W
