1.6 Example project for remote I/O expansion with PROFINET
This example introduces the configuration of the PLC with remote I/O. The use of I/O channels
in a program and commissioning of the configuration is shown.
1.6.1 Preconditions
● Automation Builder is installed and licensed as, at least, standard edition.
● AC500 V2 CPU is assembled and connected to the PC
Ä
Chapter 1.4 “Hardware AC500
V2” on page 10.
● Configuration and programming of this example project will be made in the existing example
project for central I/O expansion
Ä
Chapter 1.5 “Example project for central I/O expansion”
on page 13.
● CM579-PNIO communication module is inserted in terminal base and connected to the PLC
Ä
Chapter 1.4 “Hardware AC500 V2” on page 10.
● CI502-PNIO communication interface module is inserted in terminal unit and connected to
the PLC
Ä
Chapter 1.4 “Hardware AC500 V2” on page 10.
1.6.2 Set-up PROFINET controller
1.6.2.1 Add the CM579-PNIO to the device tree

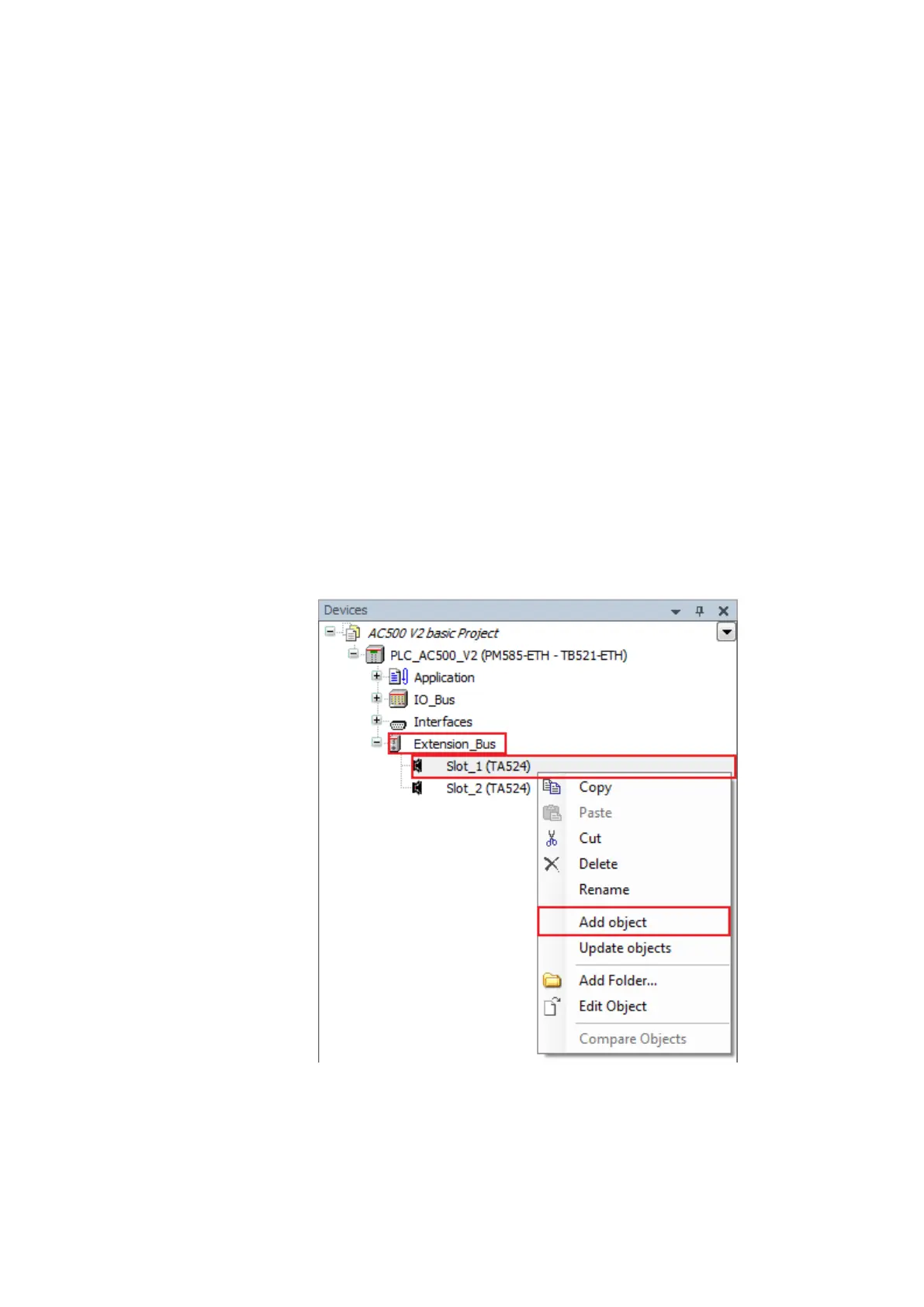

1. In the Automation Builder device tree under “Extension_Bus”, right-click “Slot_1”.
2. Select “Add object”.
3. Select “CM579-PNIO”.
Getting started with example projects
Example project for remote I/O expansion with PROFINET > Set-up PROFINET controller
2023/03/033ADR010649, 3, en_US52
