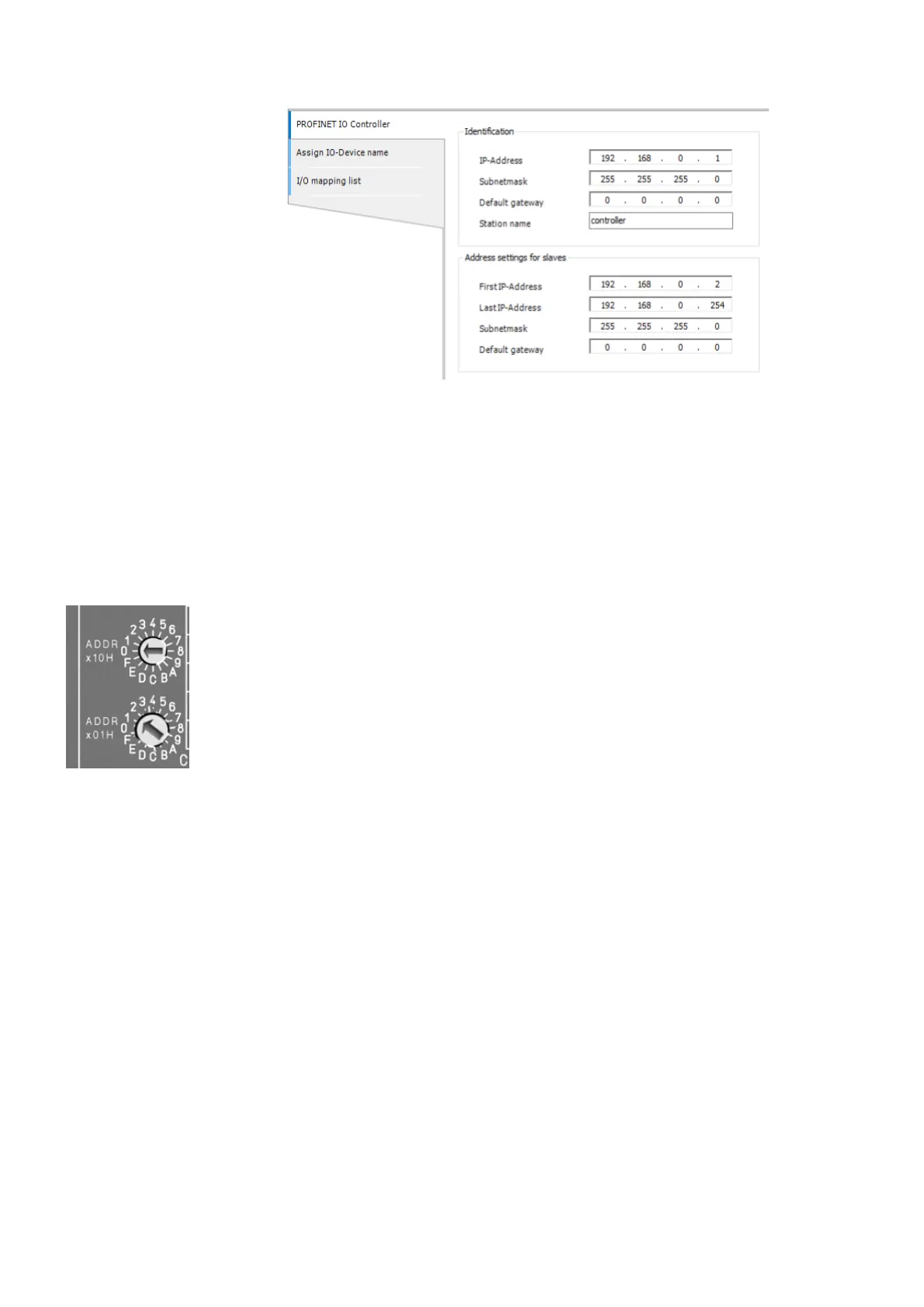

3. Here, you can set-up the way, IP addresses are distributed out to the industrial bus net-
work. You can even set, what IP-address and DNS name (station name) the PROFINET
controller has.
For the example project, keep the default settings.
1.6.3 Set-up PROFINET device
1.6.3.1 Hardware preparation
1. Switch off the power supply of your PLC.
2. Use a screw driver to set the CI502 module address to "02" by positioning of the upper
rotary switch to "0" and lower switch to "2". Note, that the numbers have hexadecimal
format.
3. Switch on the power supply.
1.6.3.2 Add the CI502-PNIO to the device tree
1. Right-click “PNIO_Controller” in the device tree.
2. Select “Add object”.
Getting started with example projects
Example project for remote I/O expansion with PROFINET > Set-up PROFINET device
2023/03/03 3ADR010649, 3, en_US 55
