ABB AC500 V2 User Manual

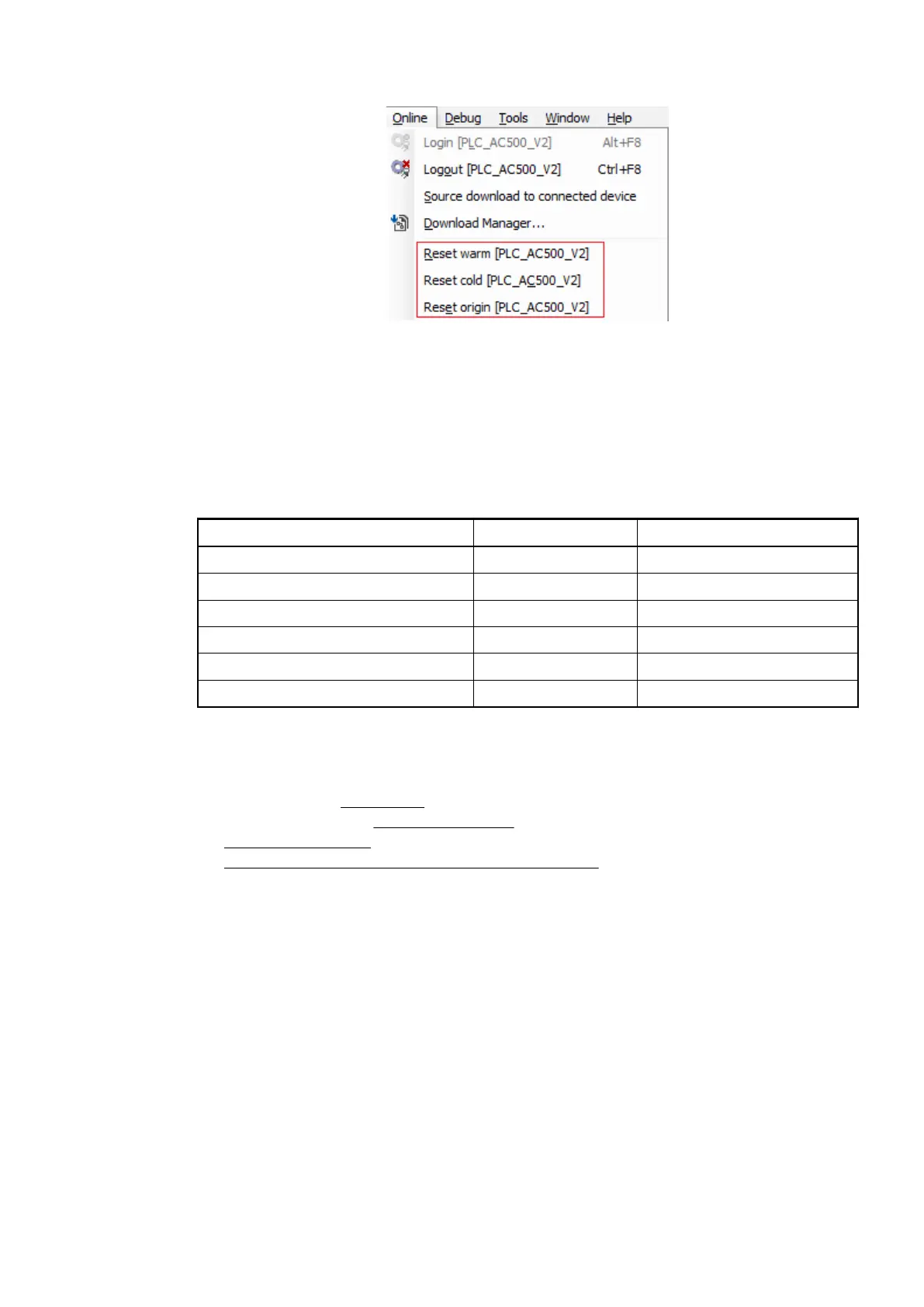

Fig. 4: Reset commands in “Online” menu
Reset warm All variables are reset, except R% variables.
Reset cold Causes initialization of all variables, except PERSISTENT variables. By recom-
mended creation of remanent variables always with both properties: PERSISI-
TENT and RETAIN, this command resets all variables, except R% variables.
Reset origin All variables and the application project are reset.
Table 5: Behavior of variables of type VAR (local or global) and variables of type PERSISTENT
RETAIN
VAR VAR PERSISTENT RETAIN
After online command 'Online change' no change no change
After online command 'Download' initialization no change
After online command 'Reset warm' initialization no change
After online command 'Reset cold' initialization no change
After online command 'Reset origin' initialization initialization
After power supply off initialization no change
1.7 Further information on our AC500 portfolio
● PLC homepage: abb.com/plc
● PLC catalog as PDF: PLC catalog as PDF, and also as flipbook.
● Application examples
● Manual for Automation Builder and all AC500 products
Getting started with example projects
Further information on our AC500 portfolio
2023/03/033ADR010649, 3, en_US64

ABB AC500 V2 Specifications

General

Series	AC500 V2
Operating System	Real-time operating system
Mounting	DIN rail
Supply Voltage	24 V DC
Operating Temperature	-25°C to +60°C
Protection Class	IP20
Product Type	Programmable Logic Controller
Communication	Ethernet, Modbus, CANopen
Programming Languages	IEC 61131-3 (LD, FBD, IL, SFC, ST)
Memory	Up to 4 MB user memory
