18 Control panel overview
Help
The help key (
) opens a help page. The help page is context-sensitive, in other
words, the content of the page is relevant to the menu or view in question. See Help
(page 24) for more information on the help page.
Start and Stop
In local control, the start key ( ) and the stop key ( ) start and stop the drive,
respectively.
Loc/Rem
The location key ( ) is used to switch the control between the control panel
(Local) and remote connections (Remote). When switching from Remote to Local
while the drive is running, the drive keeps running at the same speed. When
switching from Local to Remote, the status of the remote location is adopted. See the
drive-specific firmware manual for more details.
Key shortcuts

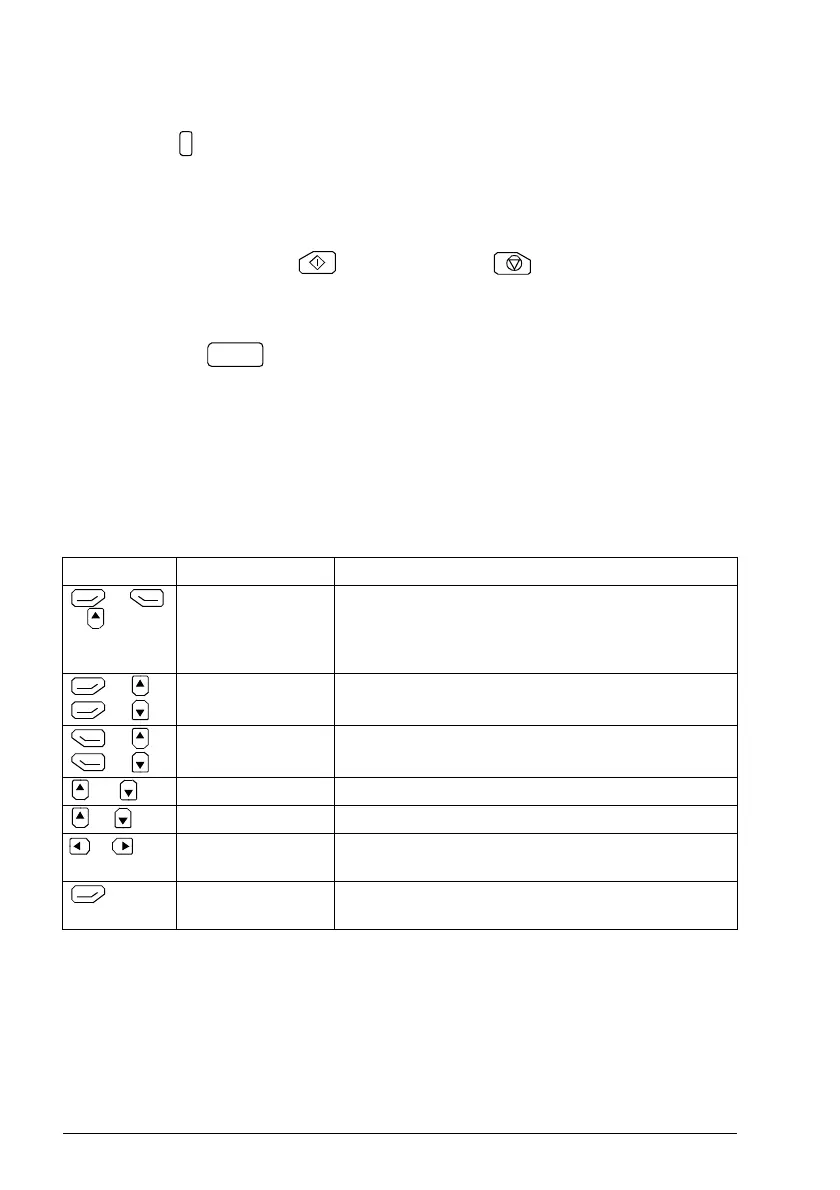

The table below lists key shortcuts and combinations. Simultaneous key presses are
indicated by the plus sign (+).
Shortcut Available in Effect
+
+
any view Save a screenshot. Up to fifteen images can be stored
in the control panel memory. For instructions on how to
transfer the images into a PC, see section Transferring
files between the control panel and a PC (page 60).
+ ,
+
any view Adjust backlight brightness.
+ ,
+
any view Adjust display contrast.
or Home view Adjust reference.
+ parameter edit views Revert an editable parameter to its default value.
+ any view Show/hide parameter index and parameter group
numbers.
(keep down)
any view Return to Home view by pressing down the key until
Home view is shown.
