22 Basic operation
Control panel navigation

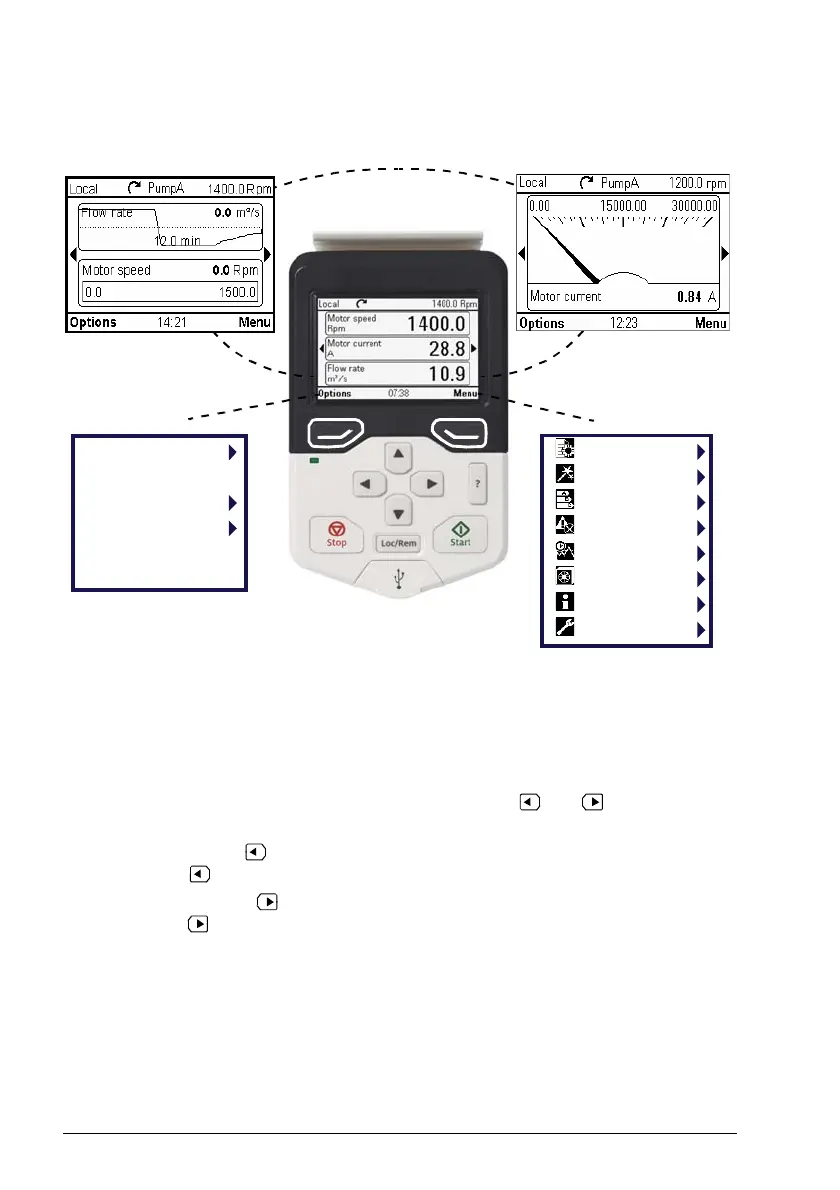

Use the arrow keys and softkeys for navigation. Follow the choices on the screen.
Note: The Menu varies based on the drive/device to which the panel is connected,
and the menu shown is an example of ACS880 drive.
Navigation memory
The Assistant control panel has a navigation memory that allows you to backtrack
your steps through the user interface with the arrow keys and . The path you
have last accessed remains in the memory for 10 minutes.
• The left arrow key ( ) moves you backwards in the menu structure.
If you press repeatedly, you return back to the Home view.
• The right arrow key ( ) moves you forward in the menu structure.
If you press repeatedly, you move forward along the path in the menu structure
you had previously accessed.
