36 Functions in the main Menu

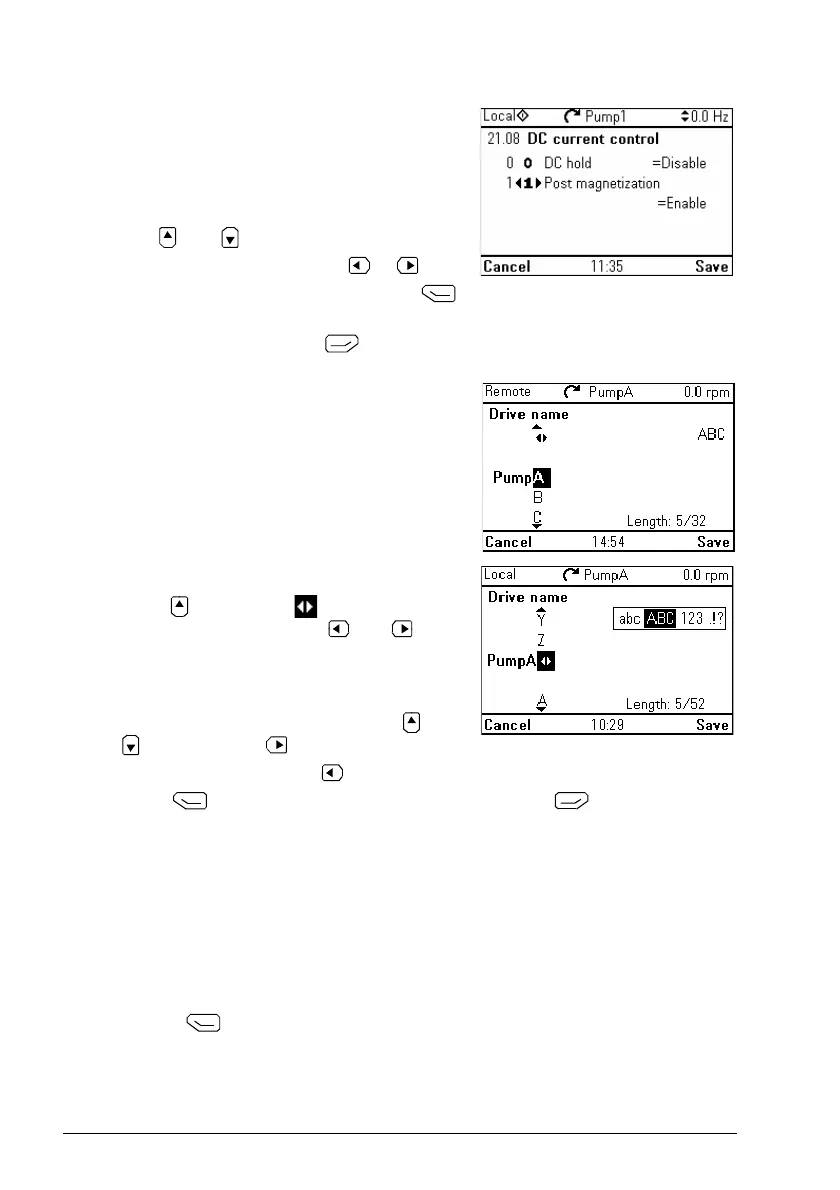

Editing bit-field parameters
A bit-field parameter is a bit word whose individual
bits can be edited. The labels describe the function
of each bit, and the current state of the bit is shown
as 1 or 0.
• Use and to select a bit.
• To change a bit value, press or .
• To save the bit values and exit, press
(Save).
• To cancel and exit, press (Cancel).
Editing texts
Texts that you can edit with the control panel
include parameter display names in the Home view
and their units, drive names, fault and warning
names, and other customizable notes or names.
• To select the character mode (lower case /
upper case / numbers / special characters),
press
until symbol is highlighted and
then select the mode with
and . Now
you can start adding characters. The mode
remains selected until you select another
one.
• To add a character, highlight it with
and then press .
• To remove a letter, press
.
• Press (Save) to accept the new setting, or press (Cancel) to go
back to the previous view without making changes.
Note! In the current software version, only the English character set (a...z) is
supported.
Resetting counters
Counters are parameters that measure incremental quantities associated with the
use of the drive such as runtime or energy consumption. Counters are updated
automatically and cannot be edited, but it is possible to reset a counter to zero by
pressing down (Reset) for three seconds.
Note: If a trigger value is defined for the counter, the counter’s progress from zero to
the trigger value is shown as a bar graph.
