ABB ACS150 User Manual

Planning electrical installation
30

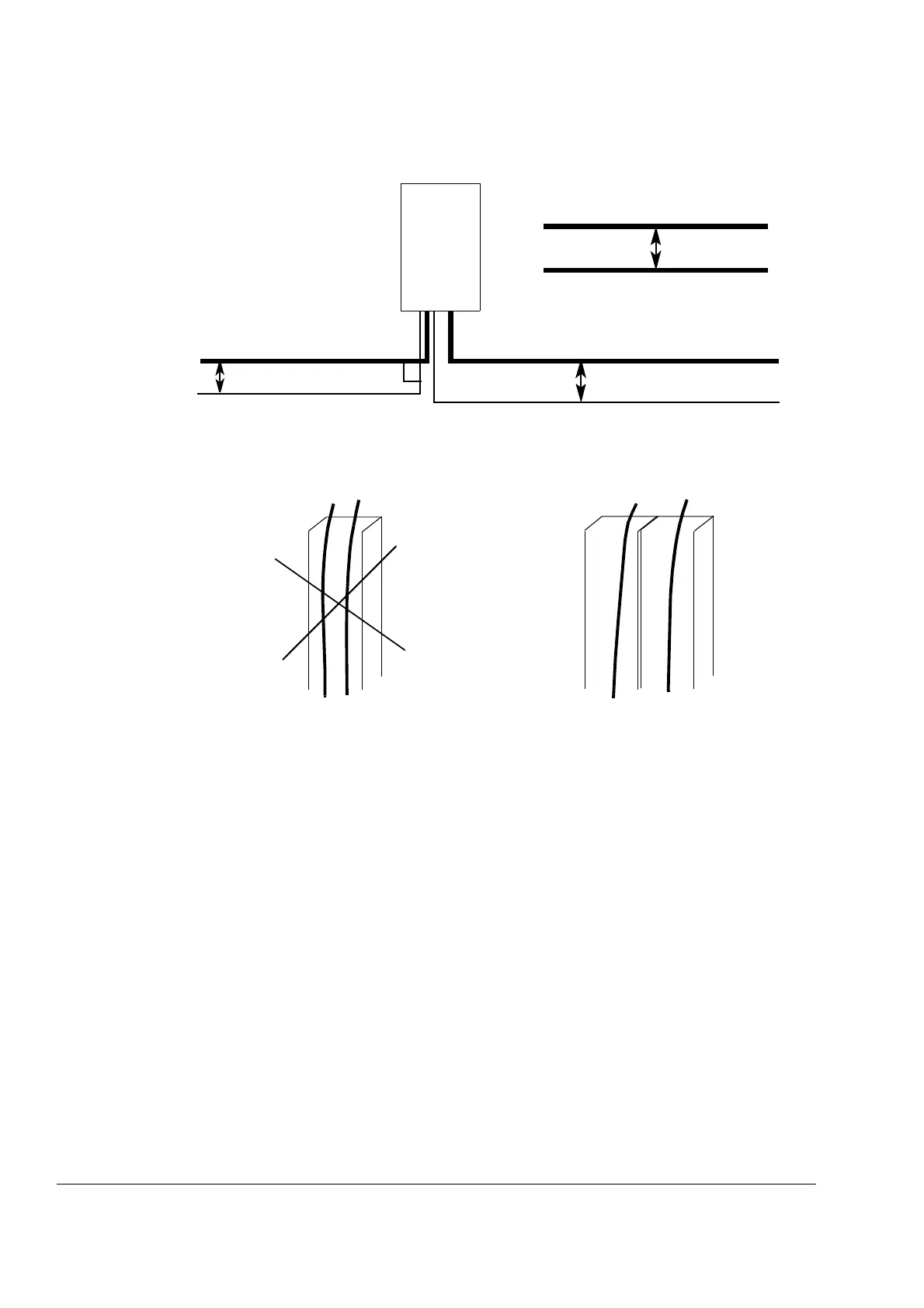

A diagram of the cable routing is shown below.
Control cable ducts
90 °
min. 500 mm (20 in.)
Motor cable
Input power cable
Control cables
min. 200 mm (8 in.)
min. 300 mm (12 in.)
Motor cable
Power cable
Drive
230 V24 V24 V 230 V
Lead 24 V and 230 V control cables in
separate ducts inside the cabinet.
Not allowed unless the 24 V cable is
insulated for 230 V or insulated with an
insulation sleeving for 230 V.

ABB ACS150 Specifications

General

Power Range	0.37 to 4 kW
Voltage Range	200 to 240 V, 380 to 480 V
Frequency	50/60 Hz
Control Method	Scalar control
Protection Class	IP20
Frequency Range	0 to 500 Hz
Storage Temperature	-40 to +70 °C
Relative Humidity	5 to 95 % (non-condensing)
Ambient Temperature	-10 to +50 °C
I/O	Digital inputs, Analog inputs, Relay outputs
Overload Capacity	150% for 60 seconds
Braking Chopper	Built-in (for some models)
