Actual signals and parameters
76
1104 REF1 MIN Defines the minimum value for external reference REF1. Corresponds to the
minimum setting of the used source signal.
0
0.0…500.0 Hz Minimum value.

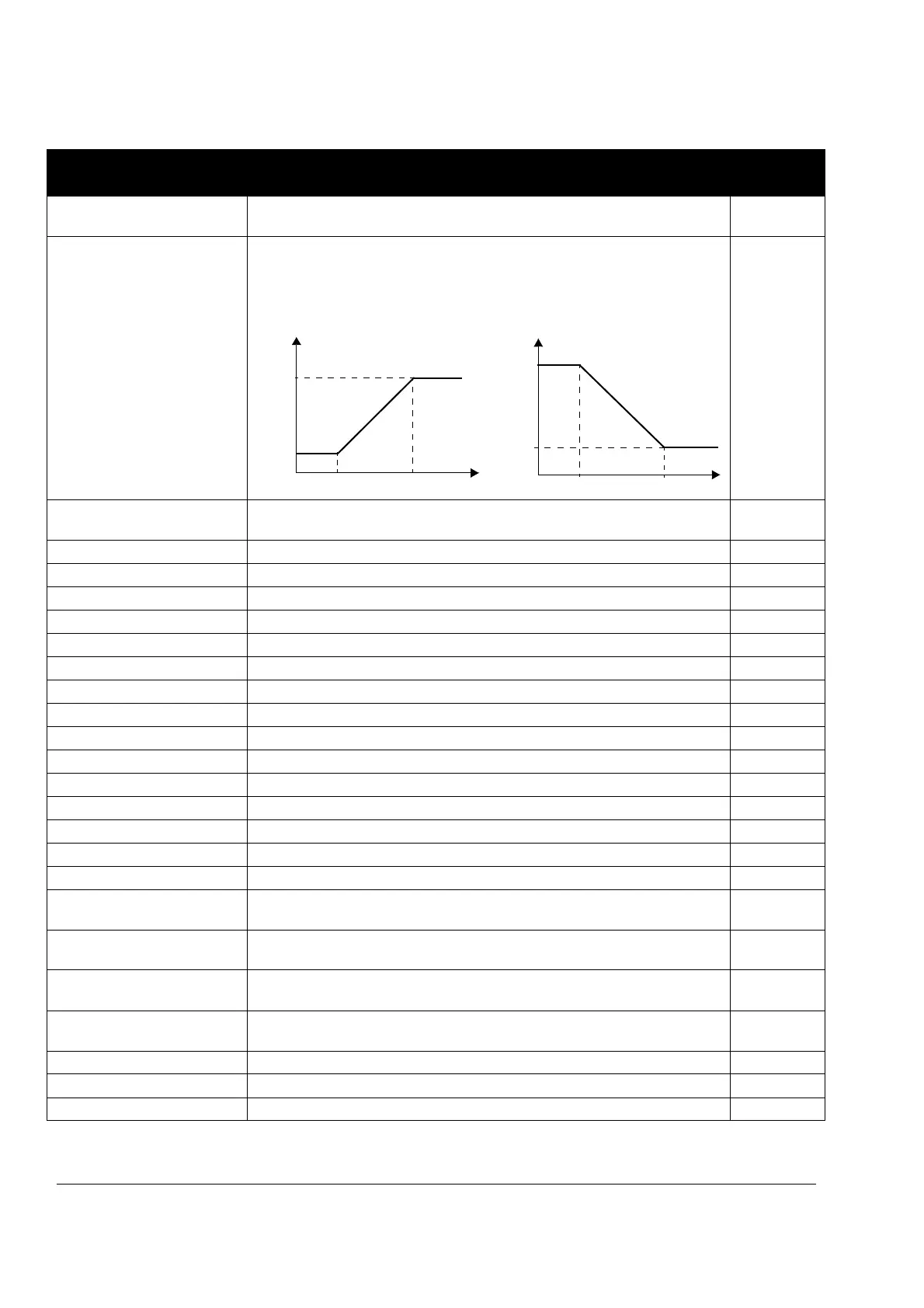

Example: Analog input AI1 is selected as the reference source (value of
parameter 1103 REF1 SELECT is AI1). The reference minimum and
maximum correspond to the 1301 MINIMUM AI1 and 1302 MAXIMUM AI1
settings as follows:
1105 REF1 MAX Defines the maximum value for external reference REF1. Corresponds to the
maximum setting of the used source signal.
Eur: 50 /
US: 60
0.0…500.0 Hz Maximum value. See example in parameter 1104 REF1 MIN.
1106 REF2 SELECT Selects the signal source for external reference REF2. 2 = POT
0 = KEYPAD See parameter 1103 REF1 SELECT.
1 = AI1 See parameter 1103 REF1 SELECT.
2 = POT See parameter 1103 REF1 SELECT.
3 = AI1/JOYST See parameter 1103 REF1 SELECT.
5 = DI3U,4D(R) See parameter 1103 REF1 SELECT.
6 = DI3U,4D See parameter 1103 REF1 SELECT.
11 = DI3U,4D(RNC) See parameter 1103 REF1 SELECT.
12 = DI3U,4D(NC) See parameter 1103 REF1 SELECT.
14 = AI1+POT See parameter 1103 REF1 SELECT.
16 = AI1-POT See parameter 1103 REF1 SELECT.
30 = DI4U,5D See parameter 1103 REF1 SELECT.
31 = DI4U,5D(NC) See parameter 1103 REF1 SELECT.
32 = FREQ INPUT See parameter 1103 REF1 SELECT.
1107 REF2 MIN Defines the minimum value for external reference REF2. Corresponds to the
minimum setting of the used source signal.
0
0.0…100.0% Value in percent of the maximum frequency. See example in parameter 1104
REF1 MIN for correspondence to the source signal limits.
1108 REF2 MAX Defines the maximum value for external reference REF2. Corresponds to the
maximum setting of the used source signal.
100
0.0…100.0% Value in percent of the maximum frequency. See example in parameter 1104
REF1 MIN for correspondence to the source signal limits.
1109 LOC REF SOURCE Selects the source for the local reference. 0 = POT
0 = POT Potentiometer
1 = KEYPAD Control panel
Parameters in the Long Parameter mode
Index Name/Selection Description Def
1105
1104
1301
1302
1301
1302
(MAX)
(MIN)
1105
1104
(MAX)
(MIN)
REF (Hz) REF (Hz)
AI1 signal (%)
AI1 signal (%)
