Mechanical installation 15

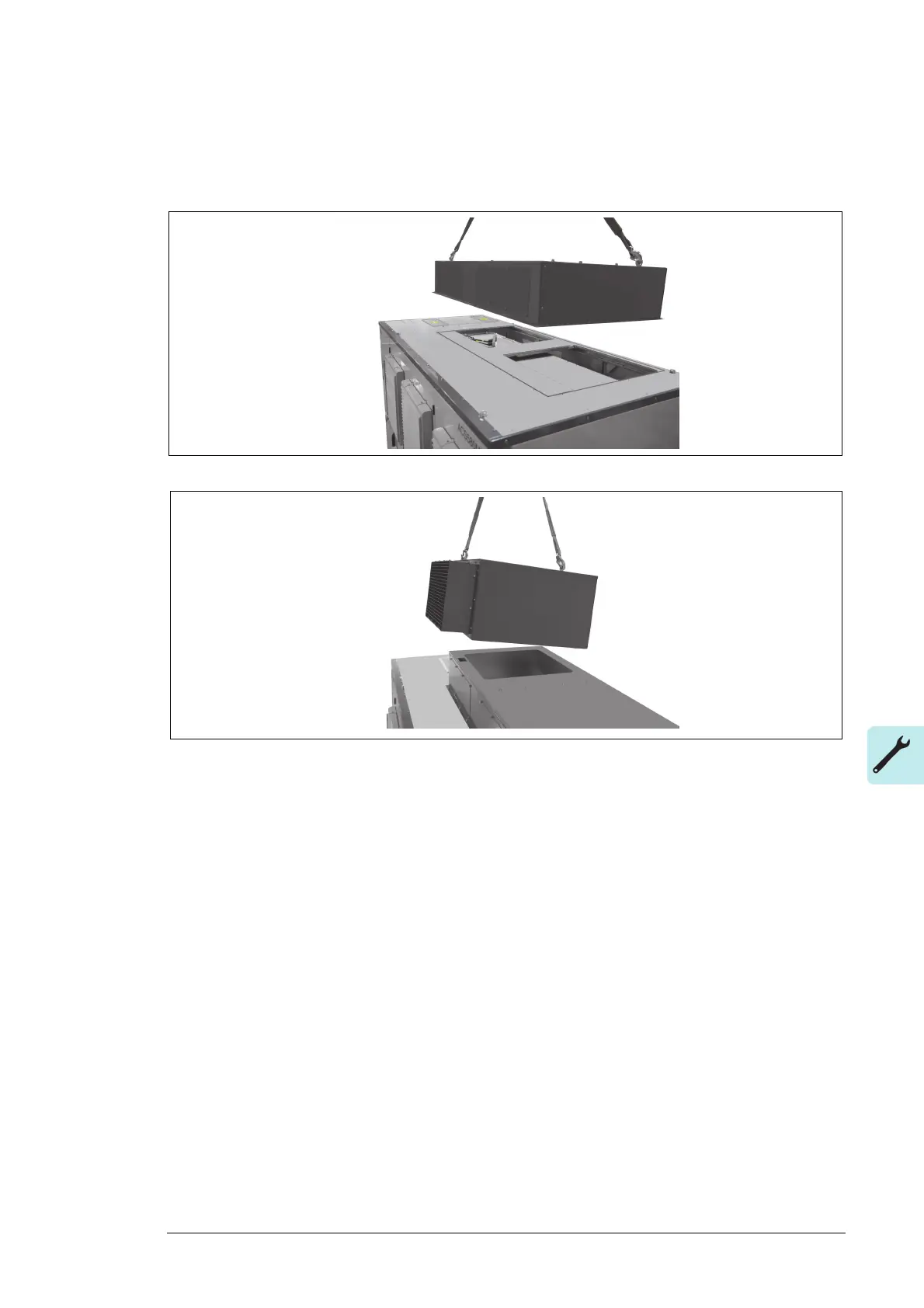

Installation (with air channel)
1. Install air channel on the drive roof.
- ~40 kg for air channel
2. Lift fan unit onto the air channel.
