16 Mechanical installation

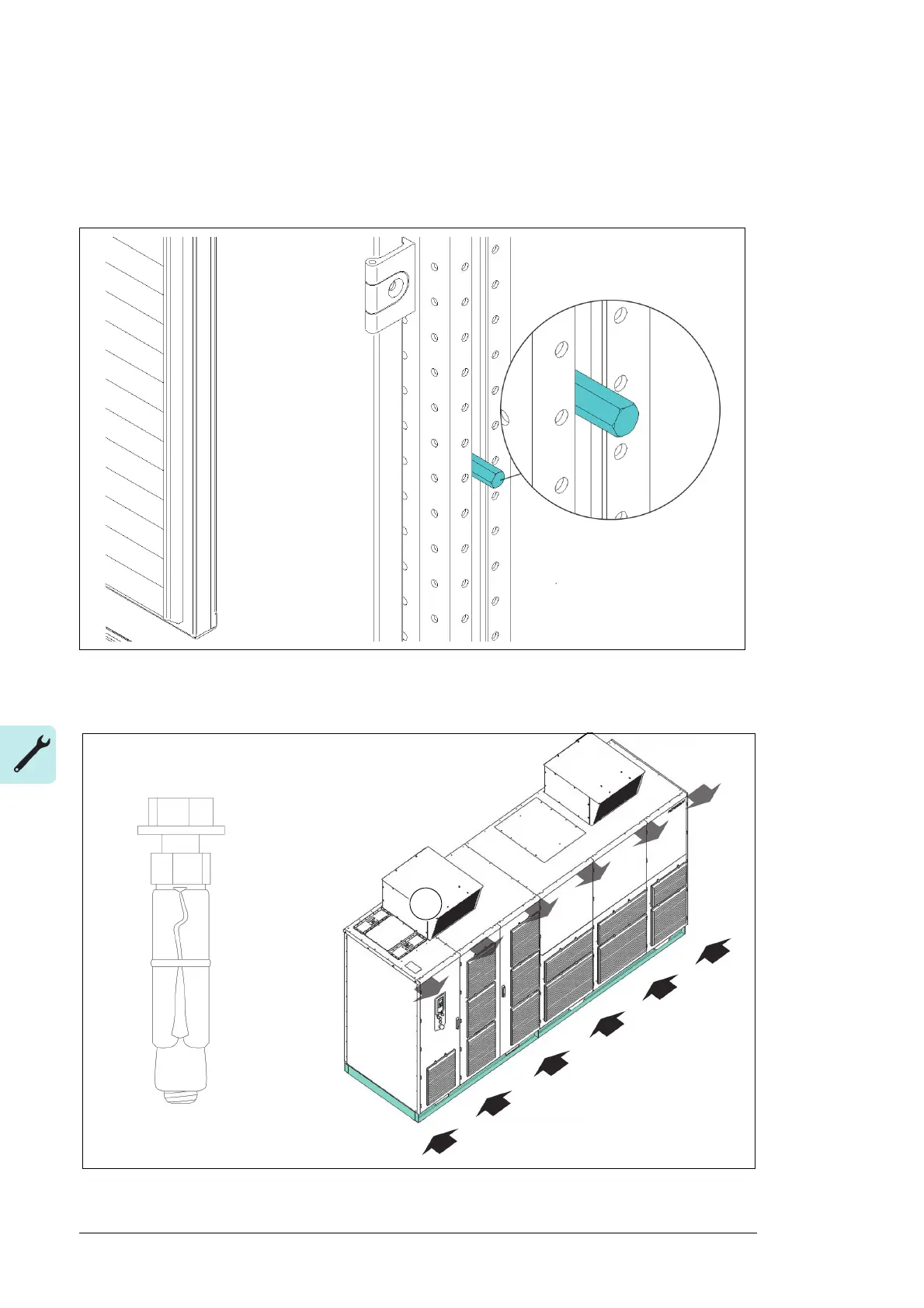

Bolting together the units
Required bolts are attached to the drive unit side wall adjoining the transformer
unit. Align the units. Then bolt the units together using the 12 hexagonal bolts (see
figure below).
Floor fixings are not supplied. M16 anchor bolts as illustrated in figure below, or
screws, nuts and washers of size M16 are recommended (diameter of holes in base
frame: 18 mm). It is prohibited to solder the drive to the foundation.
Fixing the base to the floor
