24 Electrical installation
Installing power and ground cables

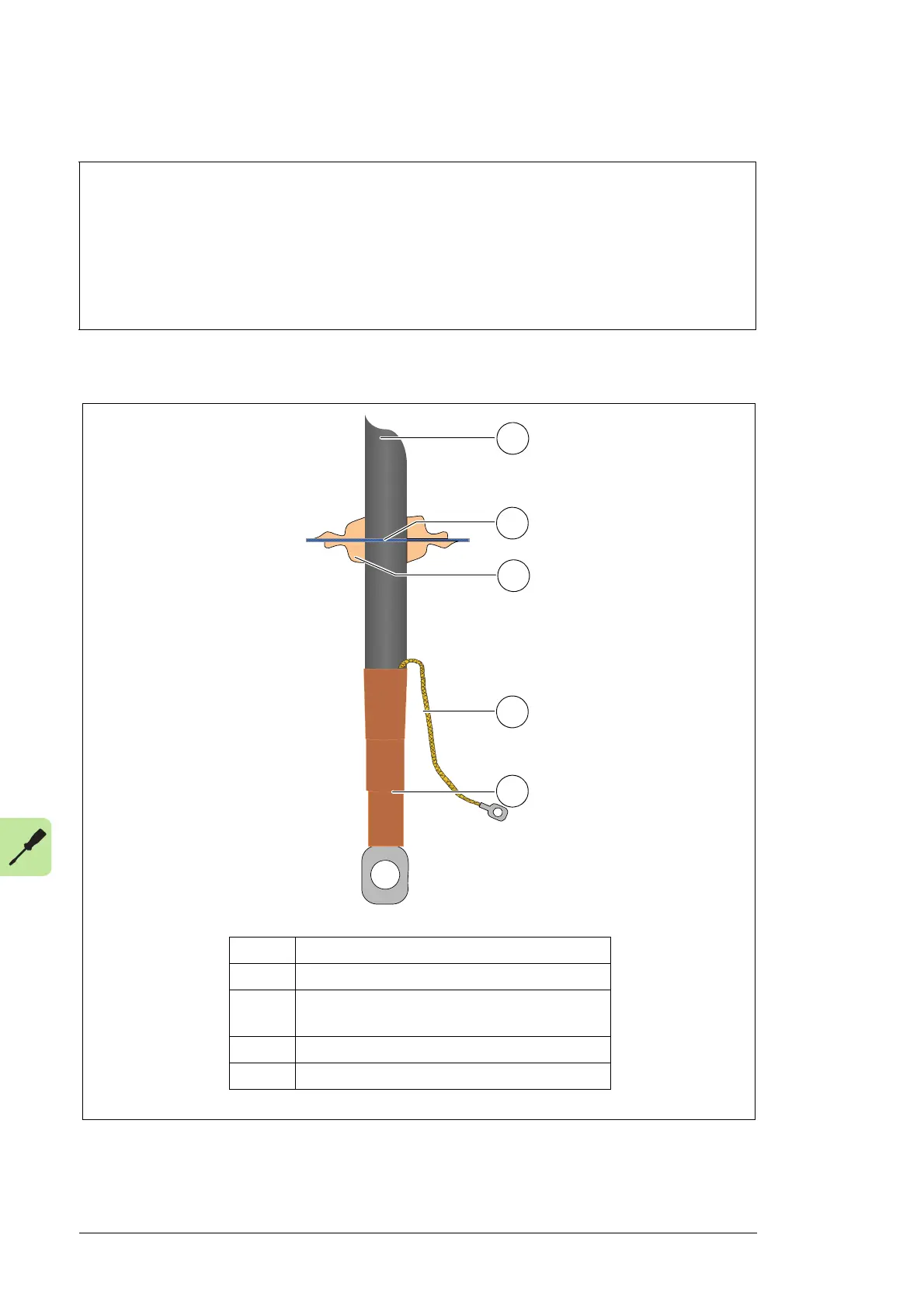

Prepare the cable termination as illustrated in the figure below. The conductor screen must
be connected to
the PE ground busbar. It is prohibited to cut off.
NOTICE
Waste inside the cabinet can cause damage or malfunction.
High voltages will be present in the terminal compartment. High voltages can
cause flashover between the electric potential of different conductors, and the
electric potential of a conductor and earth.
Therefore, do not cut cables inside the terminal compartment. Retrieve any waste
dropped into the cabinent.
1
2
4
3
5
1 Outer cable sheath
2Entry plate
3 Conductor screen extension to be
connected to PE ground busbar
4 Heat-shrinkable termination
5 Sealing compound
