14 CI/FCB300/FCH300-EN Rev. F | CoriolisMaster FCB330, FCB350, FCH330, FCH350
Chan ge from tw o to one c olum n
4.3 Transmitter
The installation site for the transmitter must be essentially vibration free, see "Technical data". The specified temperature limits
and the maximum signal cable length between the transmitter and the flowmeter sensor must not be exceeded.
IMPORTANT (NOTE)
When selecting a location for the transmitter, make sure that it will not be exposed to direct sunlight.
If exposure to direct sunlight cannot be avoided, a sun shade should be installed.
The limit values for the ambient temperature must be observed.
Field-mount housing
The housing is designed for protection class IP 65 / 67, NEMA 4X (EN 60529) and must be mounted using 4 screws. For
dimensions, see Fig. 2 and Fig. 3.
4.3.1 Transmitter in remote mount design (option F1 or F2)

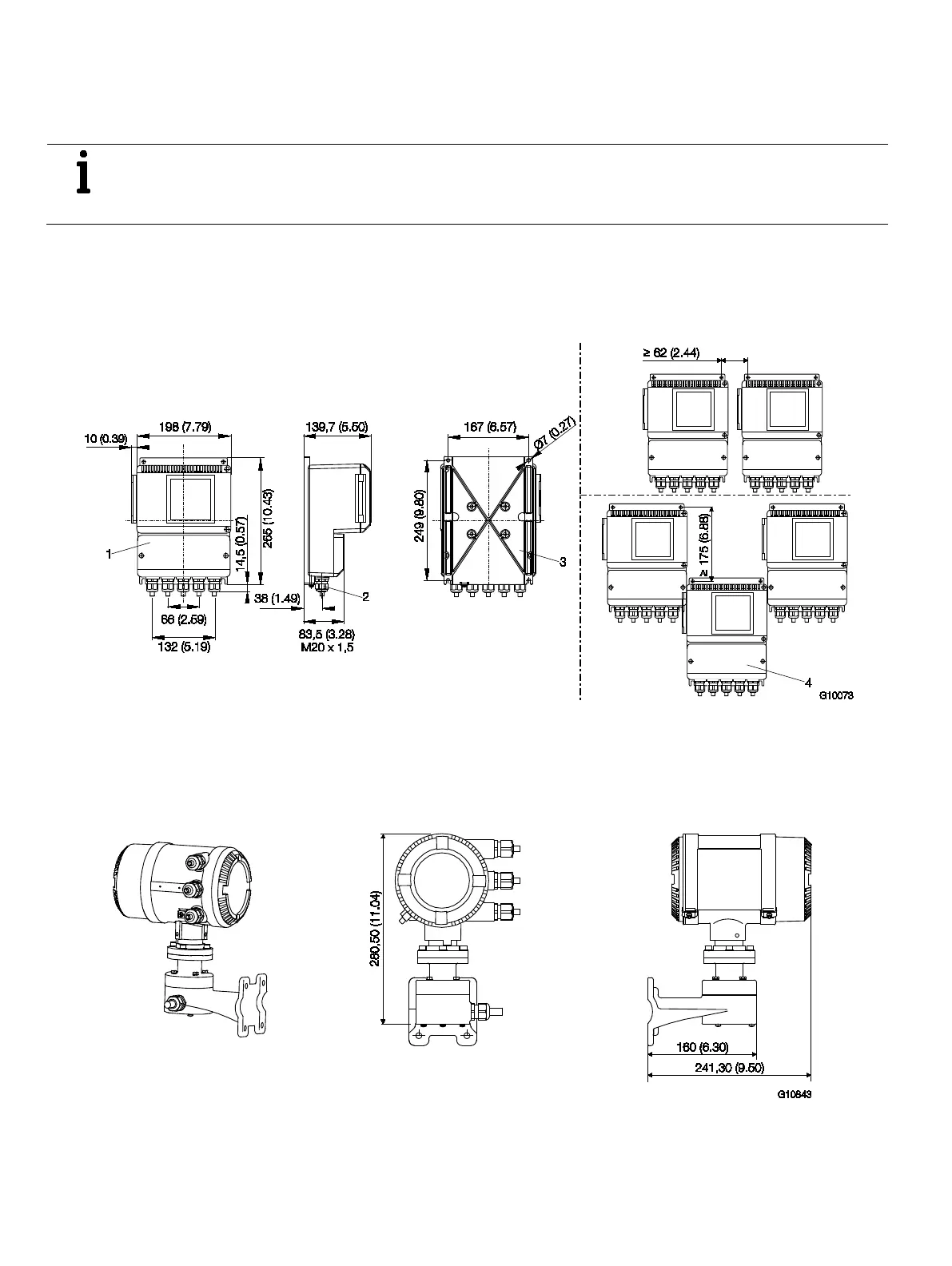

Fig. 2: Dimensions in mm (inch)
1 Field-mount enclosure with window | 2 Cable gland M20 x 1.5 or 1/2” NPT |
3 Installation holes for pipe mounting set, for 2" pipe installation; mounting set available on request (order no. 612B091U07) |
4 IP 67 degree of protection
4.3.2 Transmitter in remote mount design (option R1 or R2)
IP 65 / 67, NEMA 4X
Fig. 3: Dimensions in mm (inch)
