CoriolisMaster FCB330, FCB350, FCH330, FCH350 | CI/FCB300/FCH300-EN Rev. F 23
5.5 Digital communication
5.5.1 HART protocol
The device is registered with the HART Communication
Foundation.

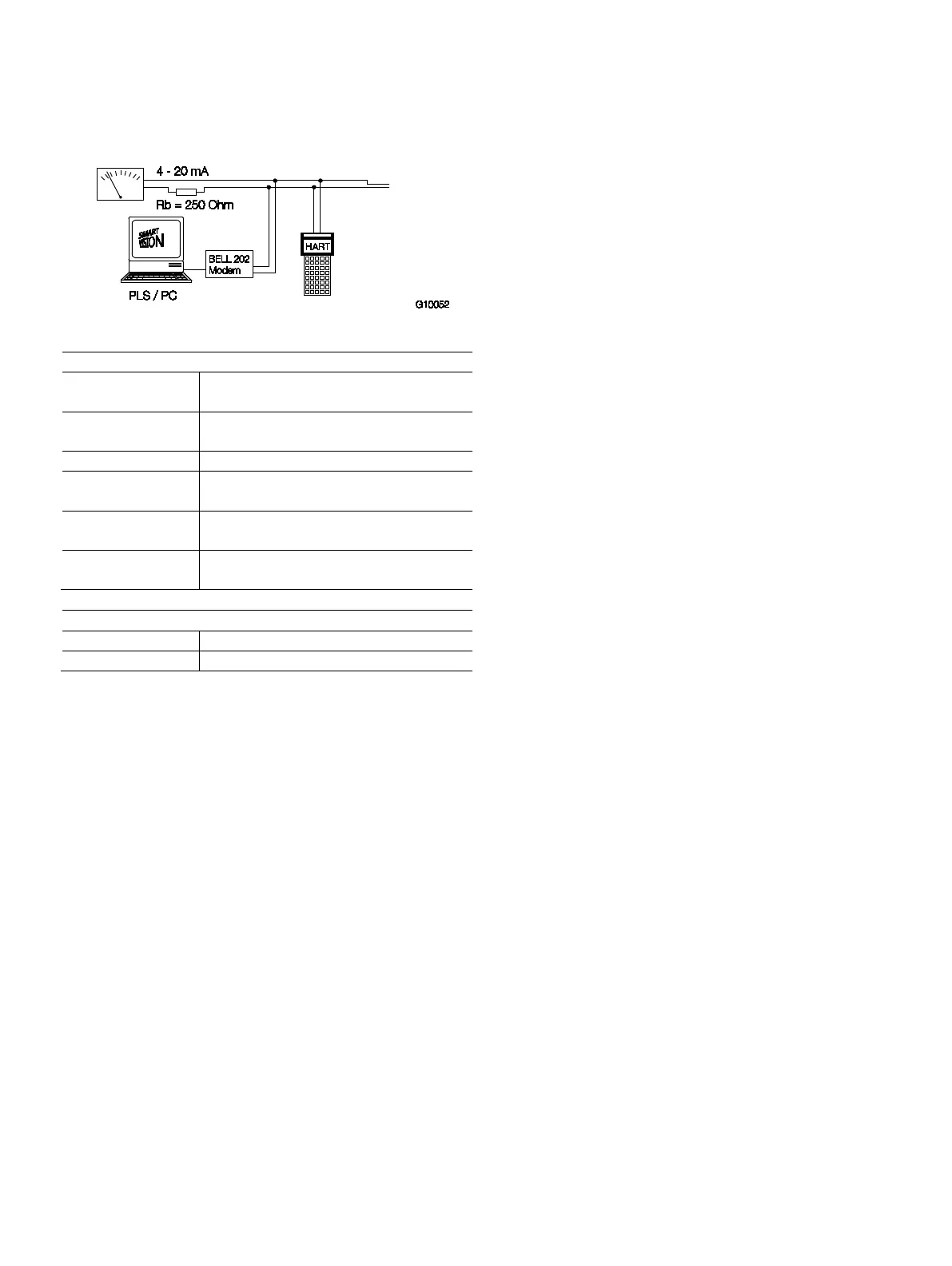

Fig. 19: Communication via HART protocol
HART protocol
Configuration — Directly on the device
—
Via software DSV401 + HART-DTM
Transmission FSK modulation on voltage output 4 … 20 mA
according to Bell 202 standard
Baud rate 1200 baud
Display Logic 1: 1200 Hz
Logic 0: 2200 Hz
Maximum signal
1.2 mAss
Load at current output 250 … 560 Ω
(in hazardous area: maximum 300 Ω)
Cable
Two-wire cable AWG 24, twisted
Maximum length 1500 m (4921 ft)
See the interface description for detailed information.
System integration:
Communication (configuration, parameterization) can be
performed with the DTM (Device Type Manager) available for
the device and the corresponding framework applications as
per FDT 0.98 or 1.2 (DSV401 R2).
Other tool/system integrations (e.g., Emerson AMS/Siemens
PCS7) are available on request.
The necessary DTMs can also be downloaded from
www.abb.com/flow.
