CoriolisMaster FCB330, FCB350, FCH330, FCH350 | CI/FCB300/FCH300-EN Rev. F 47
Chan ge from on e to two c olumns
9 Configuration, parameterization
9.1 Operation
9.1.1 Menu navigation
3 Line 1

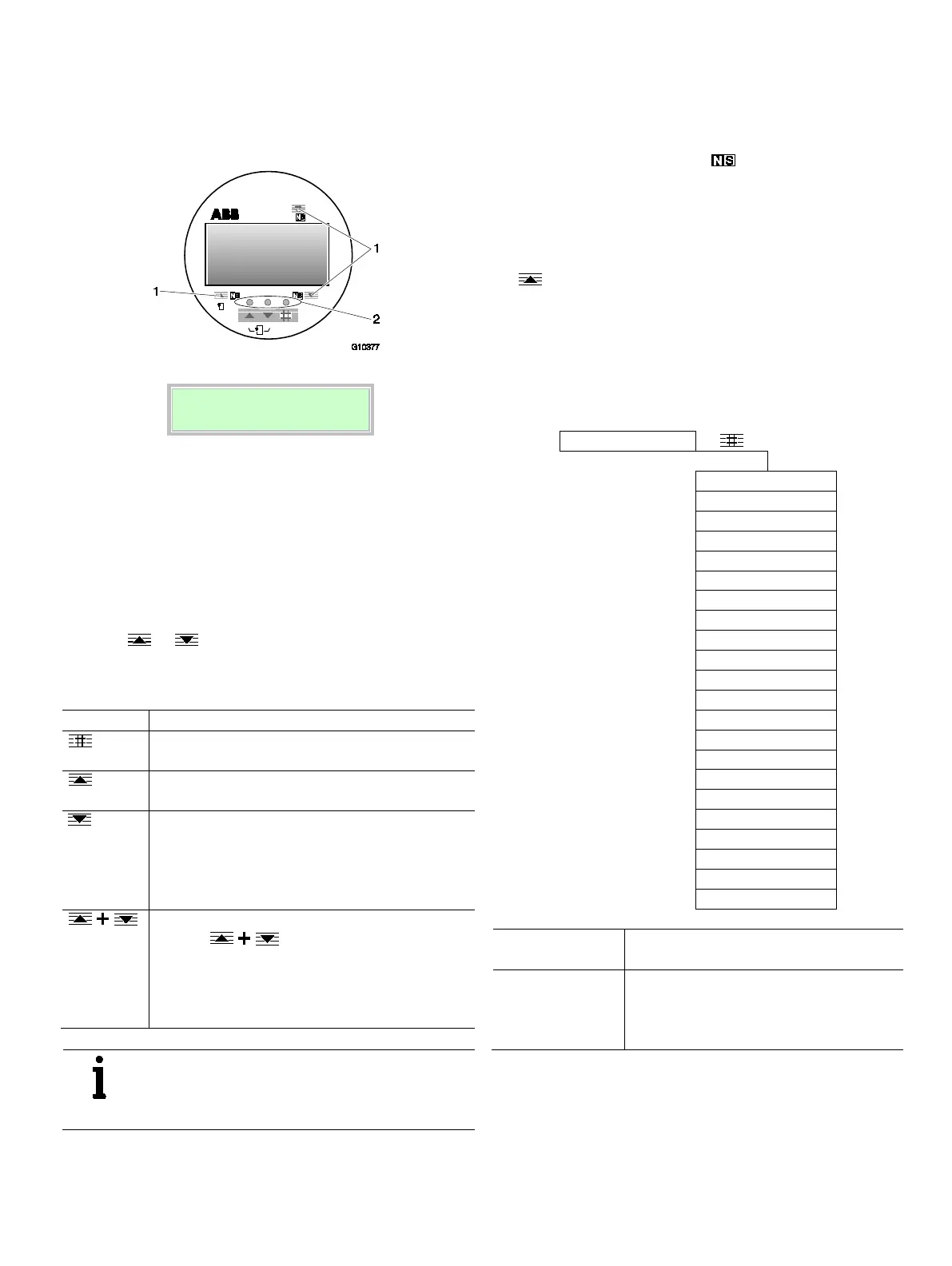

Fig. 30: LCD indicators
1 Points for inserting the magnet stick |
2 Buttons for menu navigation | 3 1st line of the LCD display |
4 2nd line of the LCD display
When setting parameters, the transmitter remains online, i.e.,
current and pulse outputs still show the current operating
mode.
Control button functions
You can browse through the menu or select values from a list
using the or buttons.
Depending on your position in the menu, the buttons may
have other functions.
— Toggle between process display and menu
— Exit submenu
— Scroll forwards through the menu or a parameter list
— For increasing numerical values (increment)
— Scroll backwards through the menu or a parameter
list
— For reducing numerical values (decrement)
— Select the next position for entering numerical and
alphanumeric values
ENTER function
Press the buttons at the same time to
execute the ENTER function.
— Select a parameter to change
— Confirm the entry of a value or parameter
IMPORTANT (NOTE)
The values entered are checked for plausibility; if
they are not plausible, a corresponding message
appears on the LCD display.
Magnet stick operation
The magnet stick provides an alternative means of configuring
the device even when the housing cover is closed.
To execute the functions, hold the active side of the magnet
stick against the corresponding areas on the LCD display.
These areas are identified by the symbol.
ENTER function with magnet stick operation
It is not possible to use the magnet stick to press two buttons
at the same time. To execute the ENTER function when using
the magnet stick to operate the device, hold the stick against
the area for more than 3 seconds.
The LCD display flashes to indicate that the ENTER function
has been executed successfully.
9.2 Menu levels
The configuration level is located under the process display.
Language
Concentration
Unit
Flowmeter primary
QmMax
Low cutoff setting
System Zero adj.
Display
Pulse Output
Current output 1 / 2
Switch contacts
Label
Function test
Software version
Process display
The process display shows the current process
values.
Configuration level
The configuration level contains all the
parameters required for device commissioning
and configuration. The device configuration can
be changed on this level.
