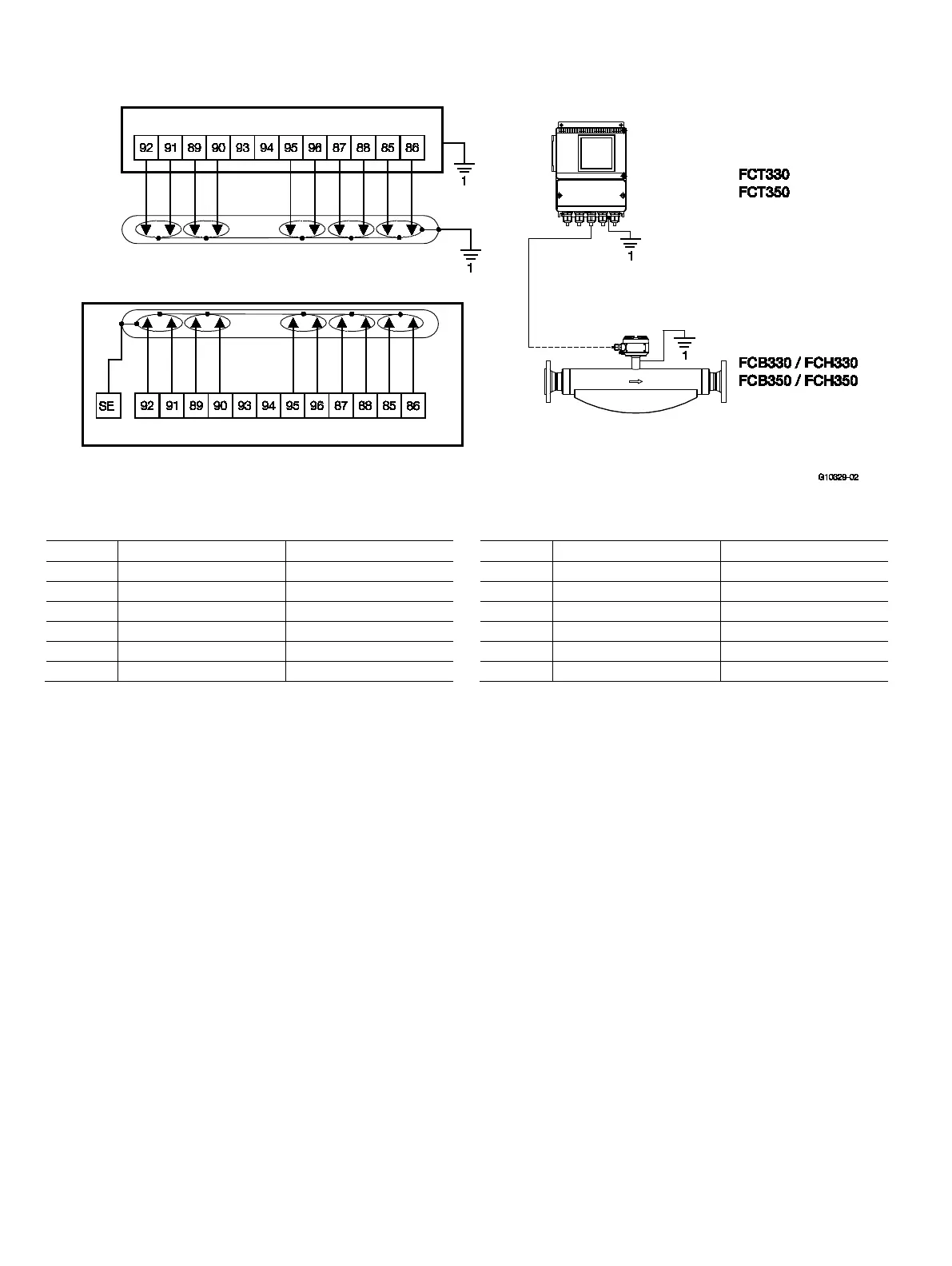

5.6.3 Connection of transmitter to flowmeter sensor
FCT330, FCT350 transmitter to FCB330, FCB350, FCH330, FCH350 flowmeter sensor
Fig. 24
1 Equipotential bonding (PA)
Terminal
Corresponding wire color
Function
Terminal
Corresponding wire color
Function
85 White Sensor 1 91 Gray Driver
86
Brown
Sensor 1
92
Pink
Driver
87 Green Sensor 2 93 - Not used
88
Yellow
Sensor 2
94
-
Not used
89 Black Temperature 95 Blue Temperature
90
Violet
Temperature
96
Red
Temperature
IMPORTANT (NOTE)
The precise position of the PA terminals may vary according to the device type. Each terminal is marked accordingly. When the
FCT330, FCT350 transmitter is connected to the FCB330, FCB350, FCH330, FCH350 flowmeter sensor, the transmitter must
also be connected to "PA".
The following flowmeter sensor / transmitter combinations are permitted:
— FCB330, FCH330 flowmeter sensor with FCT330 transmitter
— FCB350, FCH350 flowmeter sensor with FCT350 transmitter
