Commissioning
120 2CDC508134D0202 | FCA/S 1.x.x.1
Example:
Value pair 1 (VP1)
Value pair 2 (VP2)
Control value in % [0...100]
10
Control value in % [0...100]
80
Control value in % [0...100]
40
Control value in % [0...100]
20

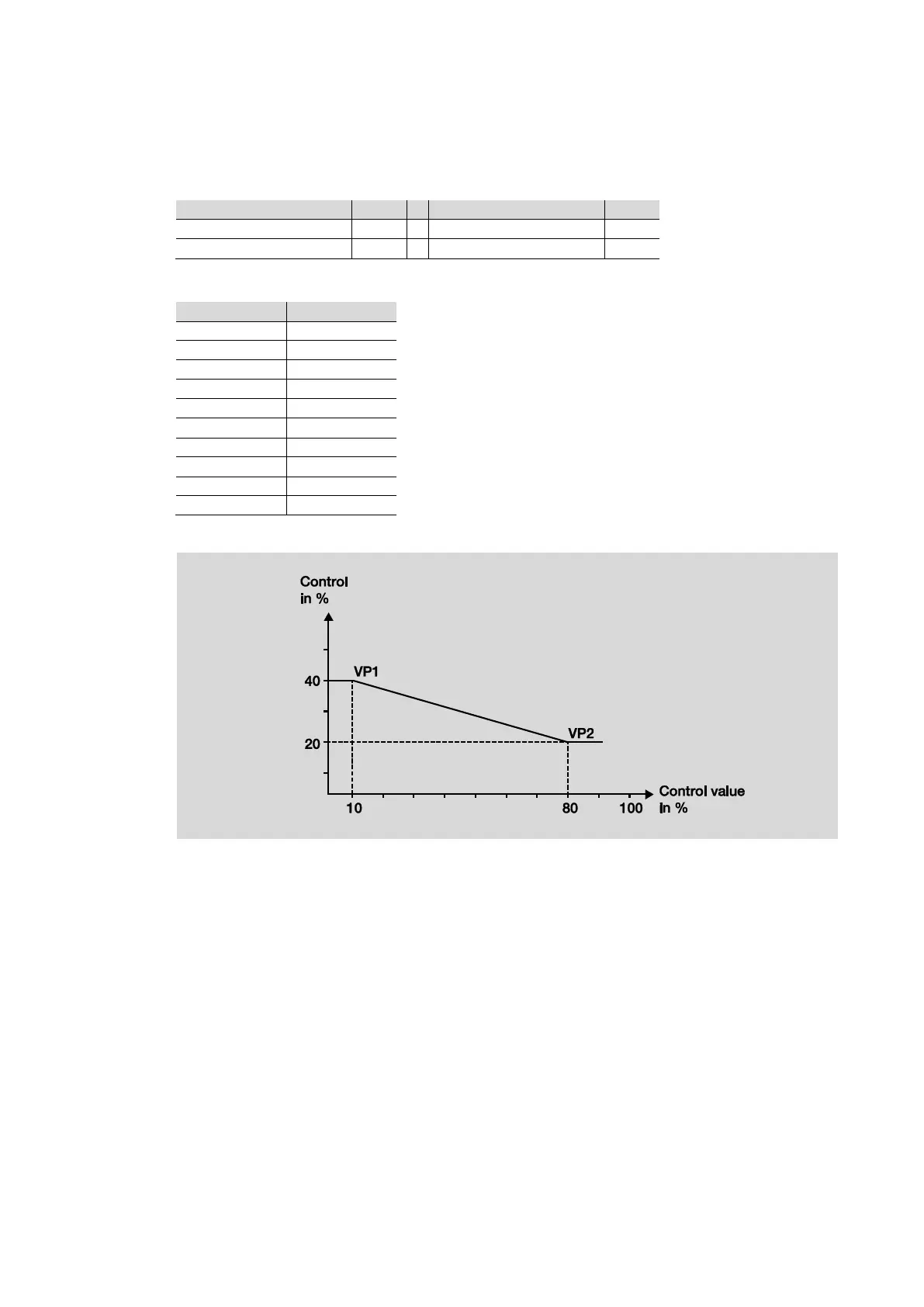

Implemented characteristic curve:
Actuating value
Control
0…10 %
40 %
20 %
37 %
30 %
34 %
40 %
31 %
50 %
29 %
60 %
26 %
70 %
23 %
80…100 %
20 %
