ABB i-
bus
®
KNX
Commissioning
198
2CDC508134D
0202 | FC
A/S 1
.x.x.1
3.2.4.4.4

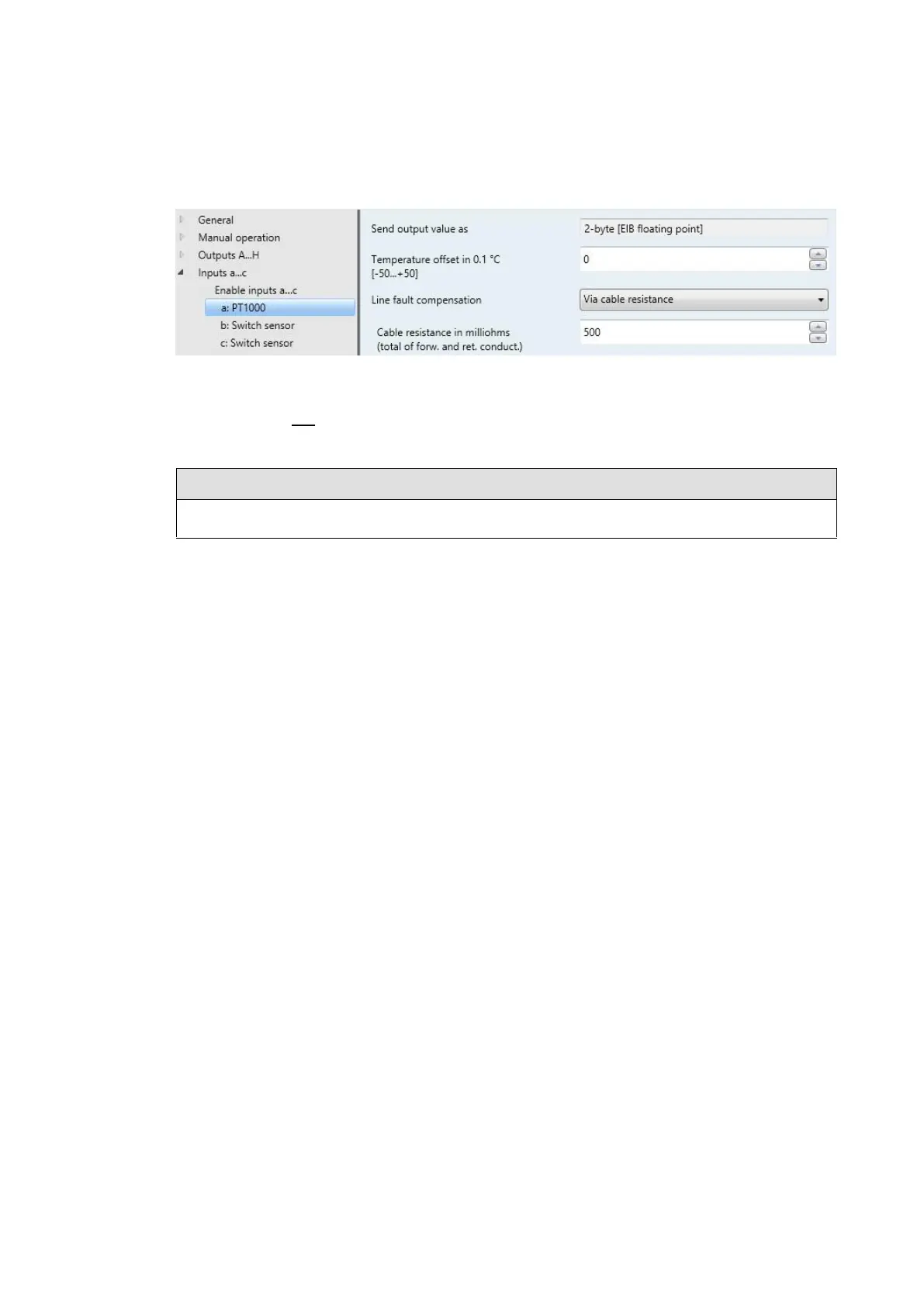

Line fault compensation
Via cable resistance
Cable resistance in milliohms
(total of forw. and ret. conduct.)
Options:
0...500...10,000
Using this parameter the level of cable resistance of the conn
ected temperature sensor is set.
Important
In order to correctly measure the cable resistance, the condu
ctors must be shorted together at the end
of the cable and should not be connected to the Analogue Input.
199
