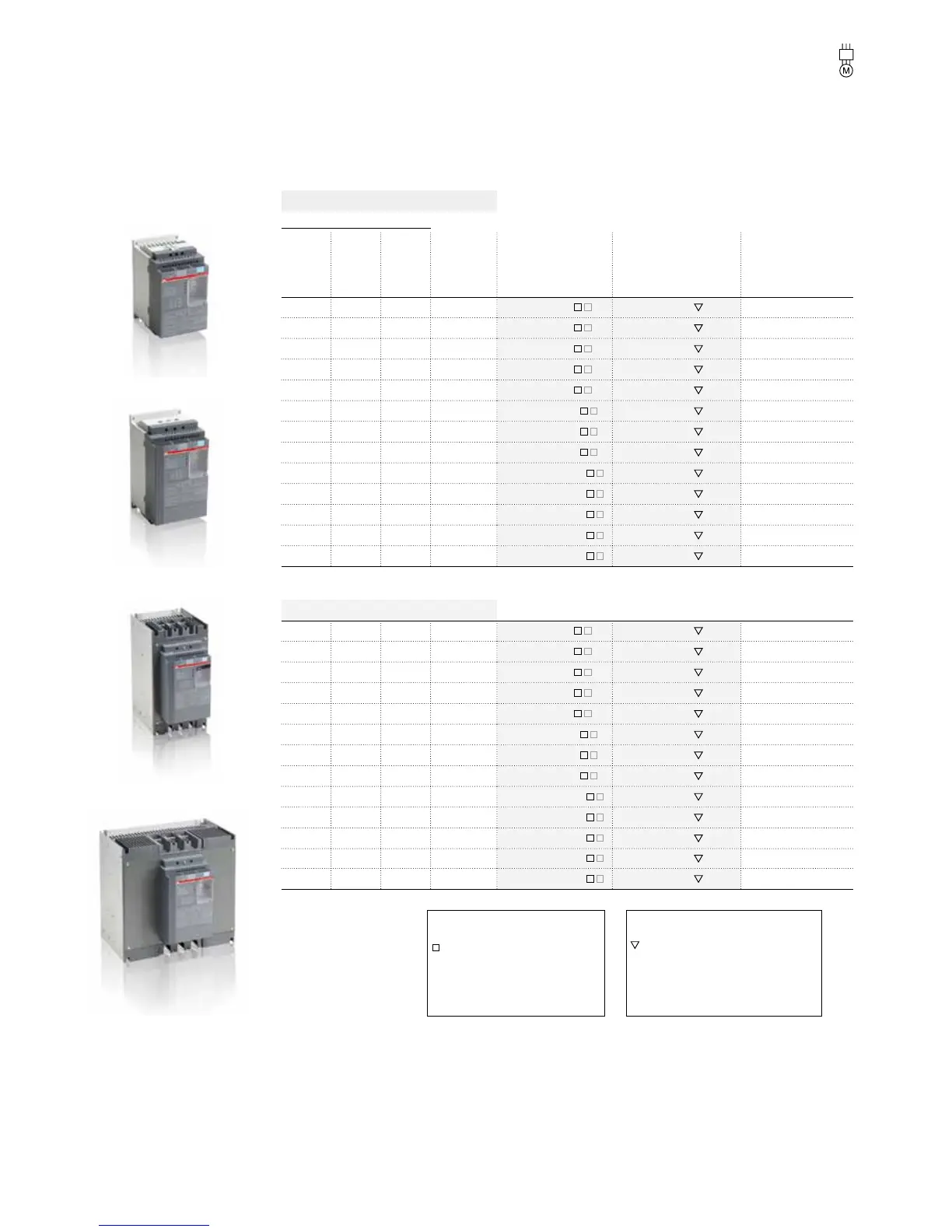

PSS – The flexible range
Normal starts, class 10, In-Line, ordering details
s
s
*)
Add code letter in Type for:
Rated control supply voltage, U
s
■
F = 110-120 V, 50/60 Hz
L = 220-240 V, 50/60 Hz
Fault signal relay
■
no code letter =
NO
C = NC
**)
Add code number in Order code for:
Fault signal relay
▼
1
=
NO
2 = NC
Rated control supply voltage, U
s
▼ 1 = 110-120 V, 50/60 Hz
2 = 220-240 V, 50/60 Hz
PSS18/30 ... PSS300/515
Rated operational voltage, U
e
, 208 - 500 V
Motor power
400 V
P
e
kW
500 V
P
e
kW
690 V
P
e
kW
IEC
Max rated
operational
curent I
e
A Type*
)
Order code**
)
Weight
kg
1 piece
7.5 11 - 18 PSS18/30-500
■ ■
1SFA892 001 R
▼
00▼
2.30
15 18.5 - 30 PSS30/52-500
■ ■
1SFA892 002 R
▼
00▼
2.30
18.5 22 - 37 PSS37/64-500
■ ■
1SFA892 003 R
▼
00▼
2.30
22 25 - 44 PSS44/76-500
■ ■
1SFA892 004 R
▼
00▼
2.30
25 30 - 50 PSS50/85-500
■ ■
1SFA892 005 R
▼
00▼
3.60
30 37 - 60 PSS60/105-500
■ ■
1SFA892 006 R
▼
00▼
3.80
37 45 - 72 PSS72/124-500
■ ■
1SFA892 007 R
▼
00▼
3.80
45 55 - 85 PSS85/147-500
■ ■
1SFA892 008 R
▼
00▼
8.60
55 75 - 105 PSS105/181-500
■ ■
1SFA892 009 R
▼
00▼
10.40
75 90 - 142 PSS142/245-500
■ ■
1SFA892 010 R
▼
00▼
10.40
90 110 - 175 PSS175/300-500
■ ■
1SFA892 011 R
▼
00▼
20.50
132 160 - 250 PSS250/430-500
■ ■
1SFA892 013 R
▼
00▼
22.00
160 200 - 300 PSS300/515-500
■ ■
1SFA892 014 R
▼
00▼
22.00
Rated operational voltage, U
e
, 400 - 690 V
7.5 11 15 18 PSS18/30-690
■ ■
1SFA893 001 R
▼
00▼
2.30
15 18.5 25 30 PSS30/52-690
■ ■
1SFA893 002 R
▼
00▼
2.30
18.5 22 30 37 PSS37/64-690
■ ■
1SFA893 003 R
▼
00▼
2.30
22 25 37 44 PSS44/76-690
■ ■
1SFA893 004 R
▼
00▼
2.30
25 30 45 50 PSS50/85-690
■ ■
1SFA893 005 R
▼
00▼
3.60
30 37 55 60 PSS60/105-690
■ ■
1SFA893 006 R
▼
00▼
3.80
37 45 59 72 PSS72/124-690
■ ■
1SFA893 007 R
▼
00▼
3.80
45 55 75 85 PSS85/147-690
■ ■
1SFA893 008 R
▼
00▼
8.60
55 75 90 105 PSS105/181-690
■ ■
1SFA893 009 R
▼
00▼
10.40
75 90 132 142 PSS142/245-690
■ ■
1SFA893 010 R
▼
00▼
10.40
90 110 160 175 PSS175/300-690
■ ■
1SFA893 011 R
▼
00▼
20.50
132 160 220 250 PSS250/430-690
■ ■
1SFA893 013 R
▼
00▼
22.00
160 200 257 300 PSS300/515-690
■ ■
1SFA893 014 R
▼
00▼
22.00
1SFC132304F0001
PSS175/300-500 ... 300/515-500
PSS175/300-690 ... 300/515-690
PSS18/30-500 ... 44/76-500
1SFC132301F0001
PSS50/85-500 ...72/124-500
PSS18/30-690 ... 72/124-690
1SFC132302F0001
PSS85/147-500 ...142/245-500
PSS85/147-690 ...142/245-690
1SFC132303F0001
