1SFC132005C0201, rev.F | Softstarters 33
PSE – The efficient range

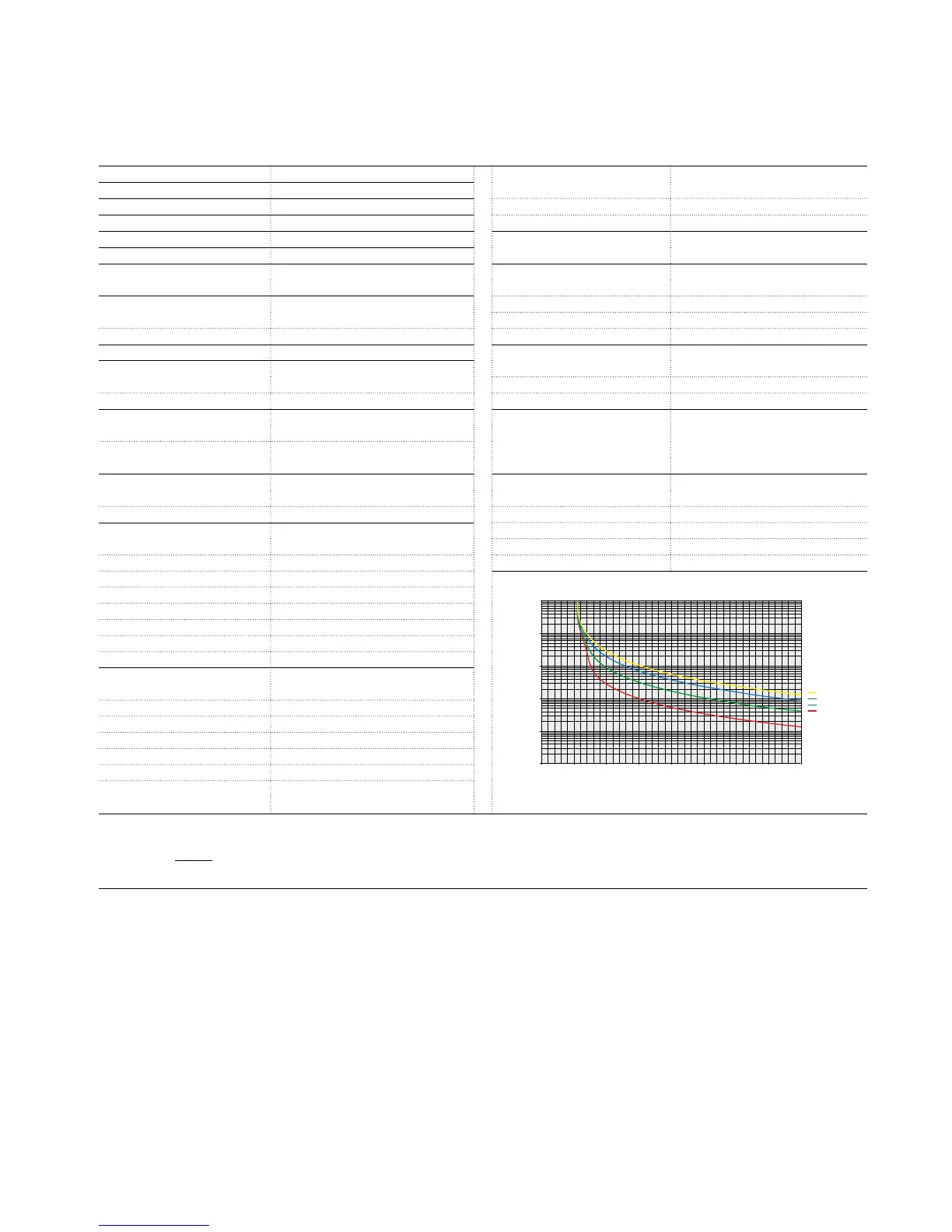

Technical data
Rated insulation voltage U
i
600 V Analog output
Rated operational voltage U
e
208 ... 600 V +10 %/-15 % Output signal reference 4 ... 20 mA
Rated control supply voltage U
s
100 ... 250 V +10 %/-15 %, 50/60 Hz ±5 % Type of output signal I Amp
Rated control circuit voltage U
c
Internal 24 V DC Scaling Fixed at 1.2 x I
e
Starting capacity at I
e
4xI
e
for 10 sec. Control circuit
Number of starts per hour 10
1)
Number of inputs 3 (start, stop, reset of faults)
Overload capability, Signal indication LED’s
Overload Class 10 On / Ready Green ashing / steady
Ambient temperature Run / TOR Green ashing / steady
During operation -25 … +60 °C
2)
Protection Yellow
During storage -40 … +70 °C Fault Red
Maximum Altitude 4000 m
3)
Protections
Degree of protection Electronic overload Yes (Class 10A, 10, 20, 30)
Main circuit IP00 Locked rotor protection Yes
Supply and Control circuit IP20 Underload protection Yes
Main circuit
Built-in By-pass Yes Field bus connection
Cooling system - Fan cooled Connection for
(thermostat controlled)
Yes ABB FieldBusPlug Yes (option)
HMI for settings External keypad
Display 4 7-segments and icons. Illuminated Display LCD type
Keypad 2 selection keys and 2 navigation keys Ambient temperature
Main settings during operation -25 … +60 °C
Setting current Size dependent during storage -40 … +70 °C
Ramp time during start 1-30 sec Degree of protection IP66
Ramp time during stop 0-30 sec
Initial / end voltage 30-70%
Current limit 1.5-7xI
e
Torque control for start Yes / No
Torque control for stop Yes / No
Kick start Off, 30-100%
Signal relays
Number of signal relays 3
K2 Run signal
K3 TOR (By-pass) signal
K1 Event signal
Rated operational voltage U
e
250 V AC / 24 V DC
4)
Rated thermal current I
th
3 A
Rated operational current I
e
at AC-15 (U
e
= 250 V) 1.5 A
1)
Valid for 50 % on time and 50 % off time. If other data is required, please contact your sales ofce
2)
Above 40 ºC up to max. 60 ºC reduce the rated current with 0.6 % per ºC.
3)
When used at high altitudes above 1000 meters up to 4000 meters you need to derate the rated current using the following formula.
[ % of I
e
= 100 -
x - 1000
] x = actual altitude for the softstarter
150
4)
A common voltage needs to be used for all 3 signal relays
Class 30
Class 20
Class 10
Class 10
A
87
6
5
4
3
21
10 000
1000
100
10
1
0
0
Time (s)
Current (x I
e
)
Tripping curves for electronic overload protection (Cold)
