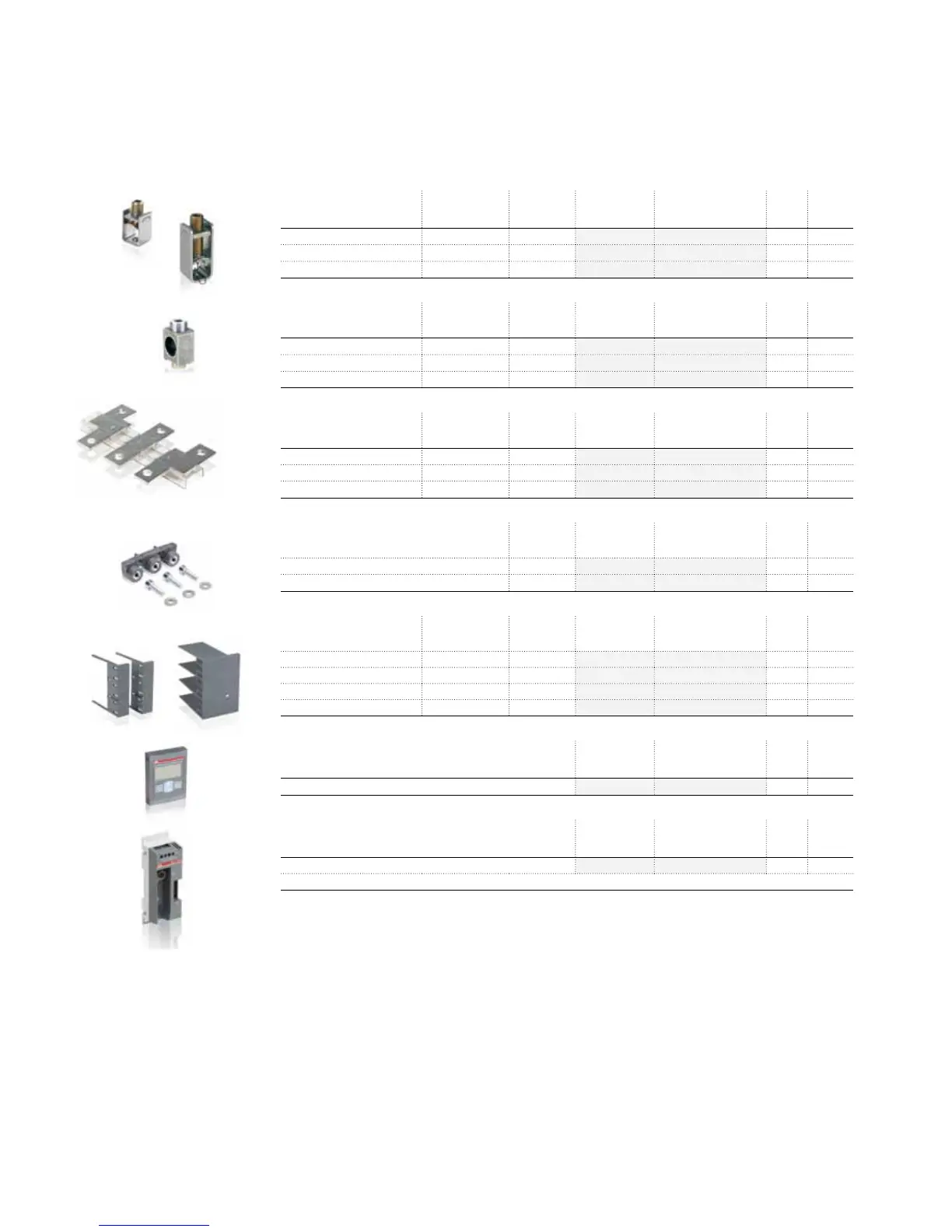

PSE – The efficient range
Accessories
1SFT98099-019C3
1SFT98099-011C1
1SFT98099-095C2
SB8054C2
1SFT98099-125
1SFT98000-011C3
LT ... -AC LT ... -AL
LW...
Cable connectors for Cu cables
For
softstarter type
Wire range
mm
2
Tightening
torque max.
Nm Type Order code
Pack
ing
piece
Weight
kg
1 piece
PSE142 …170 6-185 16 – 1SDA 023 354 R0001 3 0.200
PSE142 …170 2 x (50-120) 16 LZ185-2C/120 1SFN 074 709 R1000 3 0.300
PSE210 … 370 16-240 25 – 1SDA 023 368 R0001 3 0.400
Cable connectors for Al and Cu cables
For
softstarter type
Wire range
mm
2
Tightening
torque max.
Nm Type Order code
Pack
ing
piece
Weight
kg
1 piece
PSE142 …170 35-95 13.5 – 1SDA 023 356 R0001 3 0.100
PSE142 …170 25-150 31 – 1SDA 023 357 R0001 3 0.100
PSE210 … 370 120-240 43 – 1SDA 023 370 R0001 3 0.100
Terminal enlargements
For
softstarter type
Dimensions
hole ø
mm
2
bar
mm Type Order code
Pack
ing
piece
Weight
kg
1 piece
PSE18...105 10.5 17.5 x 5 LW110 1SFN 074 307 R1000 1 0.100
PSE142...170 10.5 20 x 5 LW185 1SFN 074 707 R1000 1 0.450
PSE210...370 13 40 x 6 LW300 1SFN 075 107 R1000 1 1.230
Terminal nut washer
For
softstarter type Req. qty Type Order code
Pack
ing
piece
Weight
kg
1 piece
PSE142...170 2 LE185 1SFN 074 716 R1000 2 0.200
PSE210...370 2 LE300 1SFN 075 116 R1000 2 0.300
Terminal shrouds
For
softstarter type Suitable for Req. qty Type Order code
Pack
ing
piece
Weight
kg
1 piece
PSE142...170
Cable connectors
2 LT185-AC 1SFN 124 701 R1000 2 0.050
PSE142...170
Compression lugs
2 LT185-AL 1SFN 124 703 R1000 2 0.220
PSE210...370
Cable connectors
2 LT300-AC 1SFN 125 101 R1000 2 0.070
PSE210...370
Compression lugs
2 LT300-AL 1SFN 125 103 R1000 2 0.280
External keypad including a 3m cable
For
softstarter type Type Order code
Pack
ing
piece
Weight
kg
1 piece
PSE18...370 PSEEK 1SFA 897 100 R1001 1 –
Fieldbus plug connection accessory
For
softstarter type Type Order code
Pack
ing
piece
Weight
kg
1 piece
The same accessory for all sizes PS-FBPA 1SFA 896 312 R1002 1 0.060
ABB Field Bus Plug suitable for all sizes. See page 50-53
LE185
1SFC132321F0001
PS-FBPA
LZ...
PSEEK
1SFC132168F0002
1SFC132328F0001
